2DT1000GZ Dual-axis Motion Test Tracking Turntable

Name: 2DT1000GZ Dual-axis Motion Test Tracking Turntable
Brand: Jiujiang RUYA Precision Technology Co., Ltd
SKU: 2DT1000GZ
Availability: InStock

Brand Name:	RUYA
Model Number:	2DT1000GZ
MOQ:	1 set
Price:	negotiable
Delivery Time:	3-4 months
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Weight:

＜300kg

Load Capacity:

＞200kg

Maximum Acceleration:

≥3°/s2

Tilt Rotation Error:

＜±3″

Verticality:

≤ 5″

Angular Position Positioning Accuracy:

＜±3″

Angular Position Positioning Repeatability:

＜±1.5″

Angular Position Positioning Resolution:

＜0.36″

Packaging Details:

wooden box

Supply Ability:

≤3 sets， 3 months

Product Description

2DT1000GZ Dual-axis Motion Test Tracking Turntable

Product Description

The dual-axis tracking turntable adopts a dual-degree-of-freedom design of azimuth axis (X) and pitch axis (Y), providing high-precision two-dimensional motion control, suitable for dynamic performance testing of precision components and assemblies. It supports a variety of test requirements such as position adjustment, rate swing, target tracking, etc., ensuring that the test data is accurate and reliable. The structure design is easy to operate and is widely used in scientific research, military industry, automation and other fields. It is an ideal choice for high-performance testing. It is accurate and stable, helping you to complete complex experimental tasks efficiently!

Product Parameters

Specification
1	Angular Position Working Range (Mechanical)	Azimuth	±185°
		Pitch	-5～+95°
2	Angular Position Working Range (Electrical )	Azimuth	±180°
		Pitch	0～+90°
3	Weight		＜300kg
4	Load Capacity		＞200kg
5	With Absolute Encoder Zero
6	Rate Range		Azimuth, pitch: fast motion 5°～10°/s, slow motion 20′/s, fine motion 2″/s;
7	Maximum Acceleration		≥3°/s2
8	Tilt Rotation Error		＜±3″
9	Verticality		≤ 5″
10	Two-Axis Combined (Absolute) Pointing Accuracy		≤5″(System comprehensive accuracy)
11	Tracking Accuracy		1″/10s,2″/10min.(System comprehensive accuracy)
12	Angular Position Positioning Accuracy		＜±3″
13	Angular Position Positioning Repeatability		＜±1.5″
14	Angular Position Positioning Resolution		＜0.36″

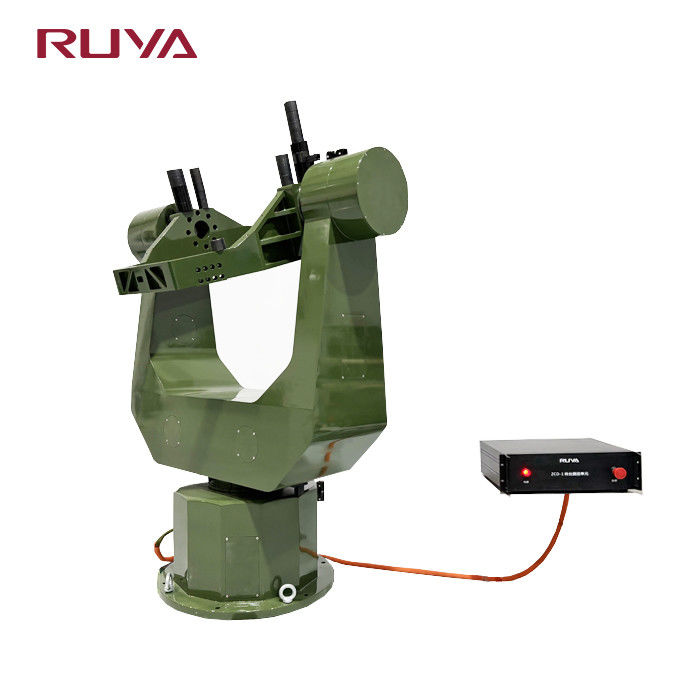

2DT1000GZ Dual-axis Motion Test Tracking Turntable 0

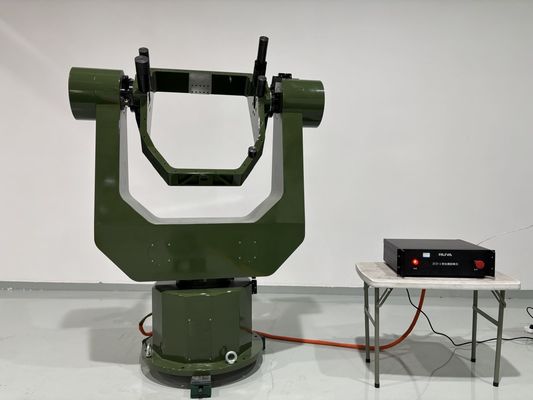

2DT1000GZ Dual-axis Motion Test Tracking Turntable 1
