2-STGZ800 Heavy Load Tracking Turntable 150Kg Load Weight

Name: 2-STGZ800 Heavy Load Tracking Turntable 150Kg Load Weight
Brand: Jiujiang RUYA Precision Technology Co., Ltd
SKU: 2-STGZ800
Availability: InStock

Brand Name:	RUYA
Model Number:	2-STGZ800
MOQ:	1 set
Price:	negotiable
Delivery Time:	3-4 months
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Load Weight:

150Kg

Resolution Of Angular Position:

0.0001°

Maintain Precision Tracking Speed（:

10°/s≥azimuth≥1″/s；5°/s≥pitch≥1″/s

Code Disc Resolution:

1″

Maximum Angular Acceleration（pitch）:

≥2°/s²

Maximum Angular Acceleration（azimuth）:

≥6°/s²

For Stellar Targets, Open-Loop Tracking Accuracy (RMS):

Error Within 10 Seconds <0.5″, Error Within 60 Minutes <1″;

For Space Targets, Open-Loop Tracking Accuracy (RMS):

Single Axis<5″

Packaging Details:

wooden box

Supply Ability:

≤3 sets， 3 months

Highlight:

Heavy Load Tracking Turntable

150Kg Tracking Turntable

2-STGZ800 tracking turntables

Product Description

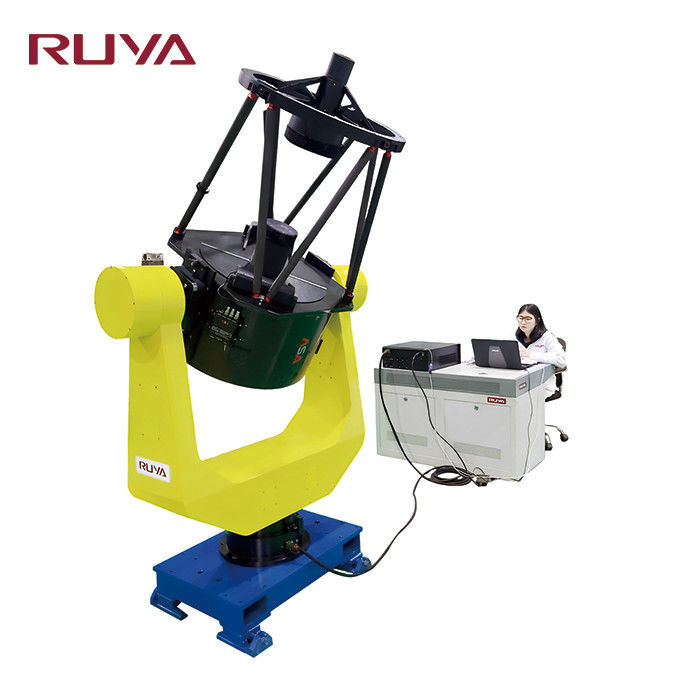

2-STGZ800 Heavy Load Tracking Turntable

Product Description

2STGZ800 large-load direct-drive tracking turntable is used in quantum communication ground receiving stations, and together with the quantum satellite transmitter, completes satellite-to-ground quantum communication. With software control and guide design, this two-dimensional tracking turntable has the ability to track low-orbit satellites.

Product Parameters

Specification
1	Load Weight	150Kg
2	Angle Rotary Range	azimuth:±280°；
2	Angle Rotary Range	pitch:-5°~+95°
3	Rotary Accuracy Of Dual-Axis	±3″
4	Positioning Error Of Angular Position	±3″
5	Positioning Repeatability Of Angular Position	±2″
6	Resolution Of Angular Position	0.0001°
7	Rate Accuracy	ω≤1°/s , 2×10-3 (1° average)
		1°/s≤ω<10°/s , 2×10-4 (10° average)
		ω≥10°/s , 2×10-5 (360° average)
8	Maintain Precision Tracking Speed	10°/s≥azimuth≥1″/s；
8	Maintain Precision Tracking Speed	5°/s≥pitch≥1″/s
9	Maximum Angular Acceleration	pitch:≥2°/s²；
9	Maximum Angular Acceleration	azimuth:≥6°/s²
10	Code Disc Resolution	1″
11	Zero Point	With code disc zero point
12	For Stellar Targets, Open-Loop Tracking Accuracy (RMS)	Error within 10 seconds <0.5″, error within 60 minutes <1″;
13	For Space Targets, Open-Loop Tracking Accuracy (RMS)	Single axis<5″

2-STGZ800 Heavy Load Tracking Turntable 150Kg Load Weight 0

2-STGZ800 Heavy Load Tracking Turntable 150Kg Load Weight 1
