2-STGZ/1 Direct Drive Dual Axis Tracking Turntable 30Kg Load

Name: 2-STGZ/1 Direct Drive Dual Axis Tracking Turntable 30Kg Load
Brand: Jiujiang RUYA Precision Technology Co., Ltd
SKU: 2-STGZ/1
Availability: InStock

Brand Name:	RUYA
Model Number:	2-STGZ/1
MOQ:	1 set
Price:	negotiable
Delivery Time:	3-4 months
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Load Weight:

30Kg

Angle Rotary Range（Outer Frame）:

±358°

Angle Rotary Range（Inner Frame）:

-5°~+95°

Rotary Accuracy:

±3″

Positioning Error:

±3″

Positioning Repeatability:

±2″

For Stellar Targets, Open-Loop Tracking Accuracy (RMS):

Error Within 10 Seconds <0.5″, Error Within 60 Minutes <1″;

For Space Targets, Open-Loop Tracking Accuracy (RMS):

Single Axis<5″

Packaging Details:

wooden box

Supply Ability:

≤3 sets， 3 months

Highlight:

Direct Drive Tracking Turntable

Dual Axis Tracking Turntable

30Kg 2 axis turntable

Product Description

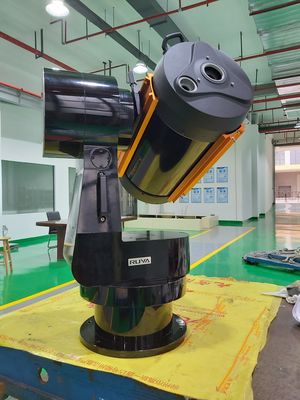

2-STGZ/1 Direct Drive Dual-axis Tracking Turntable

Product Description

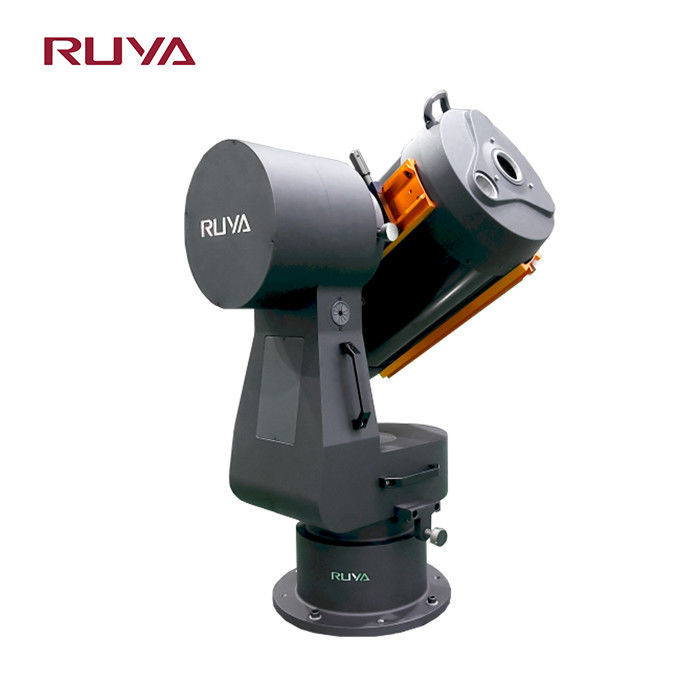

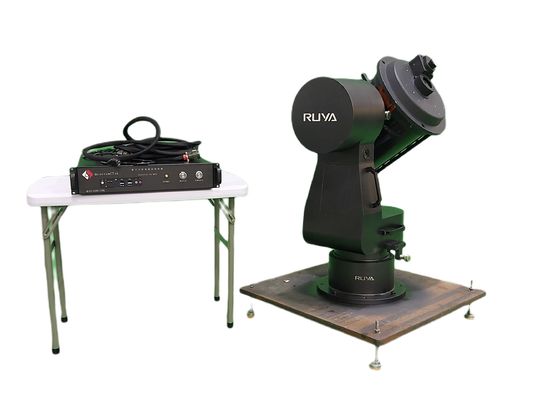

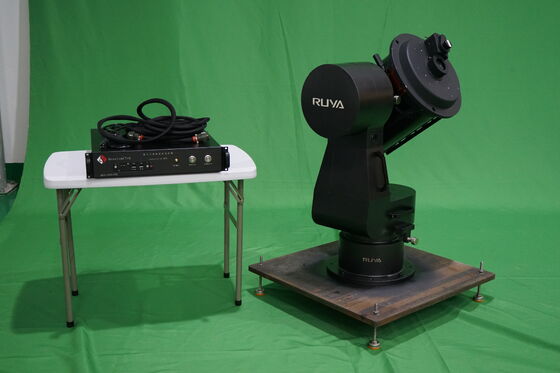

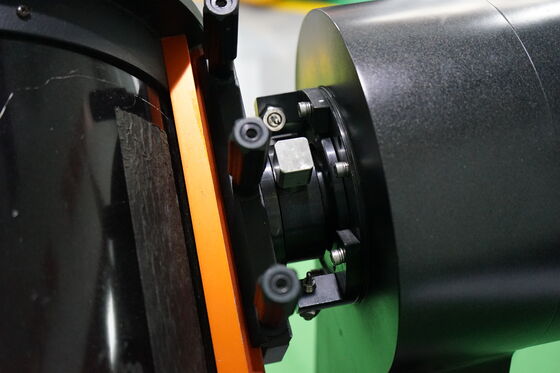

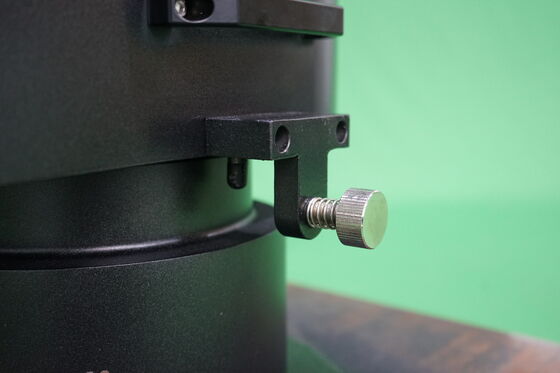

2-STGZ/1 direct-drive dual-axis tracking turntable has two degrees of freedom of movement in the azimuth axis and pitch axis. It is a TL-type two-dimensional tracking equipment. A device that simulates satellite pointing and attitude on the ground while eliminating the influence of the earth's rotation. It can be used as a quantum communication ground receiving station, and together with the quantum satellite transmitter, it can complete satellite-to-ground quantum communication. Cooperating with the user's software control and guide design, the two-dimensional tracking turntable has the ability to track satellites.

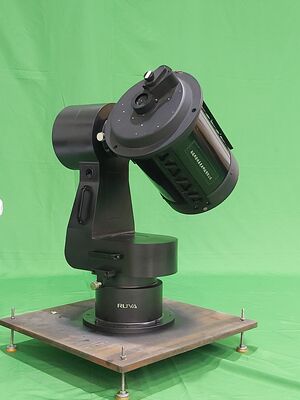

1. Adopting L-shaped structure, it has great flexibility in load installation;

2. The use of high-precision encoders ensures high reliability of tracking accuracy;

3. DC motors and drives reduce transmission links and ensure that the system has no transmission errors;

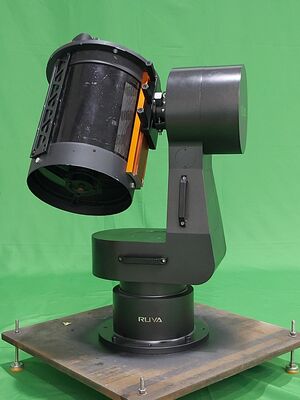

4. The main structure of the equipment is made of aviation cast aluminum alloy material, which is light and stable.

Product Parameters

Specification
1	Load Weight	30Kg
2	Angle Rotary Range	outer frame:±358°
2	Angle Rotary Range	inner frame:-5°~+95°
3	Rotary Accuracy Of Dual-Axis	±3″
4	Positioning Error Of Angular Position	±3″
5	Positioning Repeatability Of Angular Position	±2″
6	Rate Accuracy	ω≤1°/s , 2×10-3 (1° average)
		1°/s≤ω<10°/s , 2×10-4 (10° average)
		ω≥10°/s , 2×10-5 (360° average)
7	Maintain Precision Tracking Speed	azimuth:≥2°/s, maximum≥10°/s,
7	Maintain Precision Tracking Speed	pitch:≥1°/s, maximum≥4°/s;
8	Maximum Angular Acceleration	inner frame:≥1°/s²
8	Maximum Angular Acceleration	outer frame:≥1°/s²
9	Code Disc Resolution	1″
10	Zero Point	With code disc zero point
11	For Stellar Targets, Open-Loop Tracking Accuracy (RMS)	Error within 10 seconds <0.5″, error within 60 minutes <1″;
12	For Space Targets, Open-Loop Tracking Accuracy (RMS)	Single axis<5″

2-STGZ/1 Direct Drive Dual Axis Tracking Turntable 30Kg Load 0

2-STGZ/1 Direct Drive Dual Axis Tracking Turntable 30Kg Load 1
