2-STGZ100 Light Load Tracking Turntable 10Kg Load Weight

Name: 2-STGZ100 Light Load Tracking Turntable 10Kg Load Weight
Brand: Jiujiang RUYA Precision Technology Co., Ltd
SKU: 2-STGZ100
Availability: InStock

Brand Name:	RUYA
Model Number:	2-STGZ100
MOQ:	1 set
Price:	negotiable
Delivery Time:	3-4 months
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Load Weight:

10Kg

Rotary Accuracy:

±3″

Positioning Error:

±3″

Positioning Repeatability:

±2″

Resolution Of Angular Position:

0.0001°

Code Disc Resolution:

1″

For Stellar Targets, Open-Loop Tracking Accuracy (RMS):

Error Within 10 Seconds <0.5″, Error Within 60 Minutes <1″;

For Space Targets, Open-Loop Tracking Accuracy (RMS):

Single Axis<5″

Packaging Details:

wooden box

Supply Ability:

≤3 sets， 3 months

Highlight:

2-STGZ100 Tracking Turntable

10Kg Tracking Turntable

tracking turntable 10Kg

Product Description

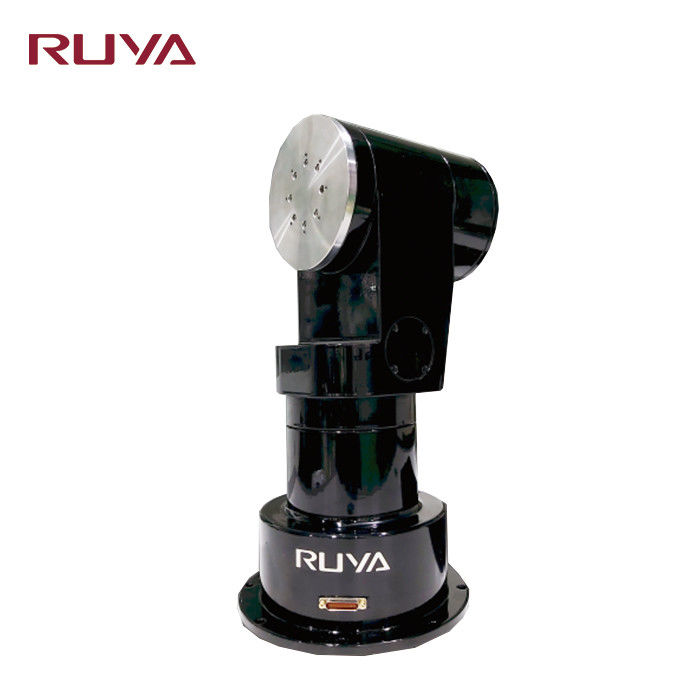

2-STGZ100 Light Load Tracking Turntable

Product Description

The light-load tracking turntable uses a single-arm pitch axis and a rotary horizontal axis. The optical lens it carries is only 100mm in diameter and weighs less than 10kg. The turntable rotation is directly driven by a motor, and the mechanical interface between the motor and the shaft system needs to be determined in coordination with the motor research unit.

This tracking turntable can be used for drone suspension.

Product Parameters

Specification
1	Load Weight	10Kg
2	Angle Rotary Range	azimuth:±170°
2	Angle Rotary Range	pitch:±80°
3	Rotary Accuracy Of Dual-Axis	±3″
4	Positioning Error Of Angular Position	±3″
5	Positioning Repeatability Of Angular Position	±2″
6	Resolution Of Angular Position	0.0001°
7	Rate Accuracy	ω≤1°/s , 2×10-3 (1° average)
		1°/s≤ω<10°/s , 2×10-4 (10° average)
		ω≥10°/s , 2×10-5 (360° average)
8	Maintain Precision Tracking Speed	10°/s≥azimuth≥1″/s；
8	Maintain Precision Tracking Speed	5°/s≥pitch≥1″/s
9	Maximum Angular Acceleration	pitch:≥2°/s²；
9	Maximum Angular Acceleration	azimuth:≥6°/s²
10	Code Disc Resolution	1″
11	Zero Point	With code disc zero point
12	For Stellar Targets, Open-Loop Tracking Accuracy (RMS)	Error within 10 seconds <0.5″, error within 60 minutes <1″;
13	For Space Targets, Open-Loop Tracking Accuracy (RMS)	Single axis<5″

2-STGZ100 Light Load Tracking Turntable 10Kg Load Weight 0

2-STGZ100 Light Load Tracking Turntable 10Kg Load Weight 1
