2DTGZ-B Dual Axis High Precision Motion Test Tracking Turntable

Name: 2DTGZ-B Dual Axis High Precision Motion Test Tracking Turntable
Brand: Jiujiang RUYA Precision Technology Co., Ltd
SKU: 2DTGZ-B
Availability: InStock

Brand Name:	RUYA
Model Number:	2DTGZ-B
MOQ:	1 set
Price:	negotiable
Delivery Time:	3-4 months
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Load Weight:

50Kg

Load Size:

300mm×300mm×200mm

Rate Range（inner）:

0.001°/s~15°/s

Rate Range（outer）:

0.001°/s~15°/s

Angle Rotary Range（inner）:

-50°~+50°

Angle Rotary Range（outer）:

0~360°

Maximum Angular Acceleration（inner）:

≥10°/s²

Maximum Angular Acceleration（outer）:

≥10°/s²

Packaging Details:

wooden box

Supply Ability:

≤3 sets， 3 months

Highlight:

2DTGZ-B Tracking Turntable

High Precision Tracking Turntable

Motion Test dual axis turntable

Product Description

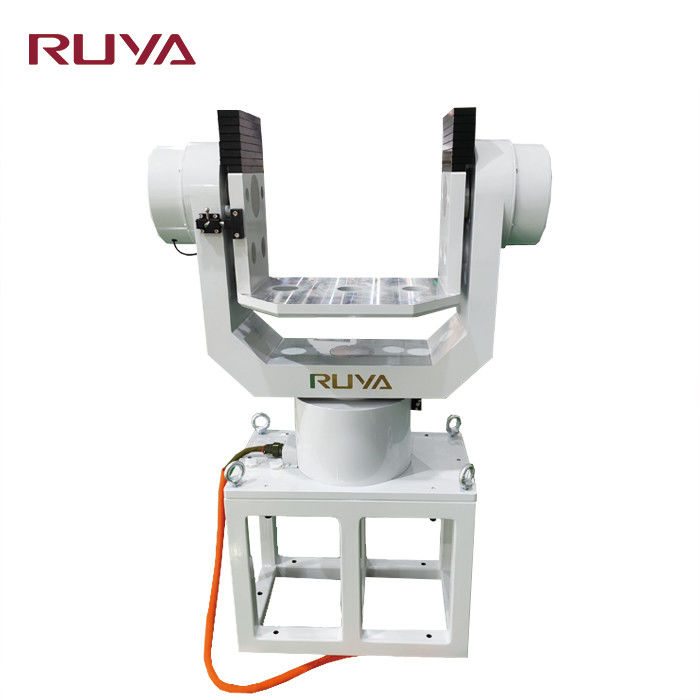

2DTGZ-B Dual-axis High-precision Motion Test Tracking Turntable

Product Description

The dual-axis tracking turntable is a high-precision two-dimensional motion test platform equipped with dual-degree-of-freedom systems for the azimuth axis (X-axis) and pitch axis (Y-axis). It adopts precision servo control technology and is designed to provide multi-dimensional dynamic performance testing for aerospace components, optoelectronic equipment, inertial navigation systems, etc. Widely used in experimental scenarios such as target simulation, swing scanning, and dynamic tracking to meet the high-reliability testing requirements for complex motion trajectories in military industry and scientific research fields.

Product Parameters

Specification
1	Load Weight	50Kg
2	Load Size	300mm×300mm×200mm
3	Rotary Accuracy Of Dual-Axis	±3″
4	Perpendicularity Of Dual-Axis	±3″
5	Intersection Of Dual-Axis	Ф0.5mm diameter ball
6	Positioning Error Of Angular Position	outer frame:±15″；
6	Positioning Error Of Angular Position	inner frame:±15″；
7	Positioning Repeatability Of Angular Position	±15″
8	Rate Range	inner frame:0.001°/s~15°/s；
8	Rate Range	outer frame:0.001°/s~15°/s；
9	Angle Rotary Range	outer frame:0~360°
9	Angle Rotary Range	inner frame:-50°~+50°
10	Rate Accuracy	ω≤1°/s , 2×10-3 (1° average)
		1°/s≤ω<10°/s , 2×10-4 (10° average)
		ω≥10°/s , 2×10-5 (360° average)
11	Maximum Angular Acceleration	inner frame:≥10°/s²
11	Maximum Angular Acceleration	outer frame:≥10°/s²

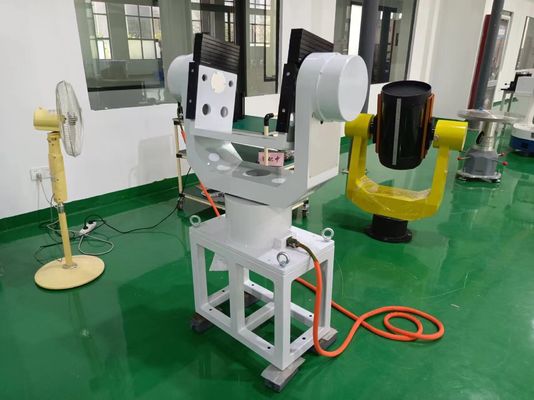

2DTGZ-B Dual Axis High Precision Motion Test Tracking Turntable 0

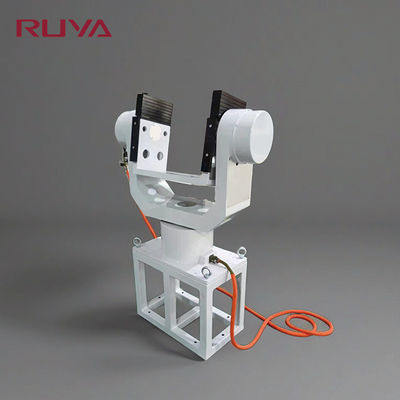

2DTGZ-B Dual Axis High Precision Motion Test Tracking Turntable 1
