Tracking Turntable
Created with Pixso. 2DT1000GZ Dual-axis Tracking Turntable with High Angular Position Resolution, Load Capacity >200kg, and Angular Position Positioning Accuracy <±3″ for Motion Testing
name
  • name
  • name
  • name
  • name
  • name
  • name

2DT1000GZ Dual-axis Tracking Turntable with High Angular Position Resolution, Load Capacity >200kg, and Angular Position Positioning Accuracy <±3″ for Motion Testing

Brand Name: RUYA
Model Number: 2DT1000GZ
MOQ: 1 set
Price: negotiable
Delivery Time: 3-4 months
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO 9001
Weight:
＜300kg
Load Capacity:
＞200kg
Maximum Acceleration:
≥3°/s2
Tilt Rotation Error:
＜±3″
Verticality:
≤ 5″
Angular Position Positioning Accuracy:
＜±3″
Angular Position Positioning Repeatability:
＜±1.5″
Angular Position Positioning Resolution:
＜0.36″
Packaging Details:
wooden box
Supply Ability:
≤3 sets， 3 months
Highlight:

Dual-axis Tracking Turntable

,

2DT1000GZ Tracking Turntable

,

Motion Test Tracking Turntable

Product Description
2DT1000GZ Dual-axis Motion Test Tracking Turntable with High Angular Position Resolution
Product Overview
The 2DT1000GZ Dual-axis Motion Test Tracking Turntable features a dual-degree-of-freedom design with azimuth (X) and pitch (Y) axes, delivering high-precision two-dimensional motion control. This system is ideal for dynamic performance testing of precision components and assemblies, supporting various test requirements including position adjustment, rate swing, and target tracking to ensure accurate and reliable test data.
Key Features
  • Dual-axis design for comprehensive motion testing
  • High-precision control and positioning
  • User-friendly structural design
  • Wide application in scientific research and automation
  • Accurate and stable performance for complex experimental tasks
Technical Specifications
Specification Parameter
Angular Position Working Range (Mechanical) Azimuth: ±185°
Pitch: -5° to +95°
Angular Position Working Range (Electrical) Azimuth: ±180°
Pitch: 0° to +90°
Weight <300kg
Load Capacity >200kg
Absolute Encoder With Zero Reference
Rate Range Azimuth & Pitch:
Fast motion: 5°-10°/s
Slow motion: 20′/s
Fine motion: 2″/s
Maximum Acceleration ≥3°/s²
Tilt Rotation Error <±3″
Verticality ≤5″
Two-Axis Combined Pointing Accuracy ≤5″ (System comprehensive accuracy)
Tracking Accuracy 1″/10s, 2″/10min (System comprehensive accuracy)
Angular Position Positioning Accuracy <±3″
Angular Position Positioning Repeatability <±1.5″
Angular Position Positioning Resolution <0.36″

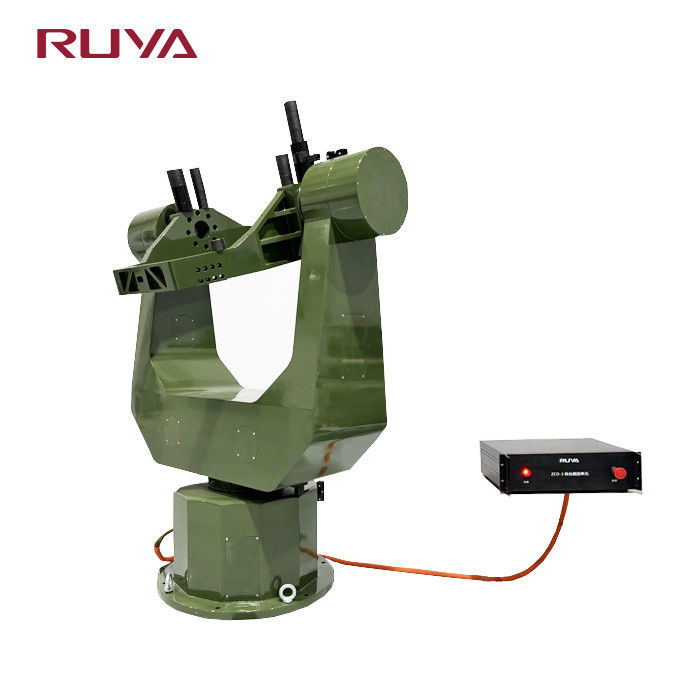

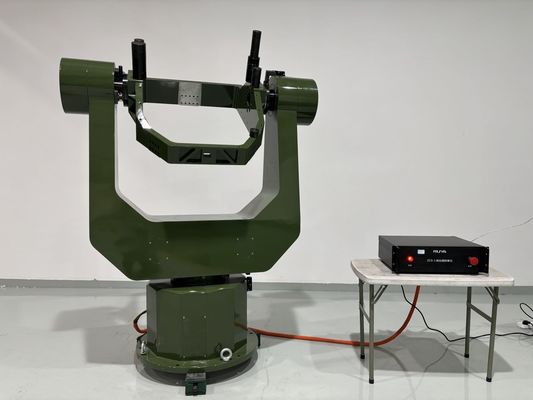

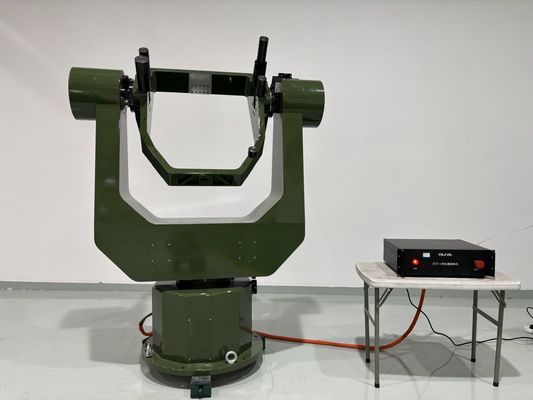

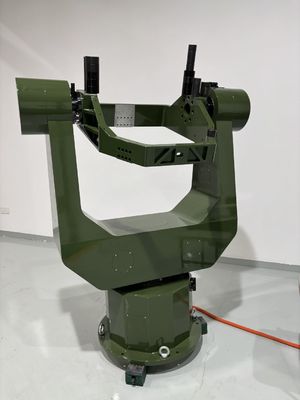

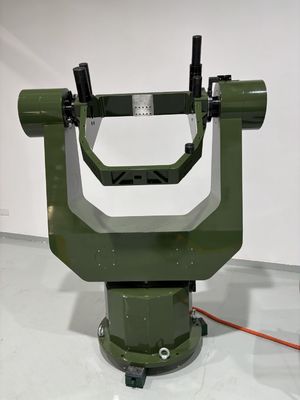

Product Images
2DT1000GZ Dual-axis Tracking Turntable with High Angular Position Resolution, Load Capacity >200kg, and Angular Position Positioning Accuracy <±3″ for Motion Testing 0 2DT1000GZ Dual-axis Tracking Turntable with High Angular Position Resolution, Load Capacity >200kg, and Angular Position Positioning Accuracy <±3″ for Motion Testing 1
