2DT495-C Dual Axis Turntable with 20Kg Load Weight for Simulation Testing

Name: 2DT495-C Dual Axis Turntable with 20Kg Load Weight for Simulation Testing
Brand: Jiujiang RUYA Precision Technology Co., Ltd
SKU: 2DT495-C
Availability: InStock

Brand Name:	RUYA
Model Number:	2DT495-C
MOQ:	1 set
Price:	negotiable
Delivery Time:	3-4 months
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Load Weight:

20Kg

Maximum Size Of Test Piece:

220mm×220mm×280mm

Rotary Accuracy:

±3″

Perpendicularity:

±3″

Positioning Error:

±5″

Positioning Repeatability:

±2″

Maximum Angular Acceleration （inner Frame）:

≥100°/s²

Maximum Angular Acceleration ( Outer Frame):

≥50°/s²

Packaging Details:

wooden box

Supply Ability:

≤3 sets， 3 months

Highlight:

2DT495-C 2 Axis Turntable

20Kg 2 Axis Turntable

dual axis turntable

Product Description

2DT495-C Dual Axis Automatic Frame Simulation Test Turntable

Product Overview

The 2DT495-C dual-axis rotating platform is a dual-axis automatic frame multi-functional simulation test equipment. It features test functions including position and speed measurement, designed to meet the functional testing and experimental requirements of inertial systems and inertial components. The system offers excellent dynamic characteristics with high-precision positioning capability, stable speed performance, and minimal waveform distortion.

Technical Specifications

Specification	Details
Load Weight	20Kg
Maximum Size of Test Piece	220mm * 220mm * 280mm
Rotary Accuracy Of Dual-Axis	±3″
Perpendicularity Of Dual-Axis	±3″
Intersection Of Dual-Axis	Ф0.5mm diameter ball
Positioning Error Of Angular Position	±5″
Positioning Repeatability Of Angular Position	±2″
Rate Range	Inner frame: 0.01°/s ~ 200°/s Outer frame: 0.01°/s ~ 200°/s
Rate Accuracy	ω ≤ 1°/s: 210⁻³ (1° average) 1°/s ≤ ω < 10°/s: 210⁻⁴ (10° average) ω ≥ 10°/s: 2*10⁻⁵ (360° average)
Maximum Angular Acceleration	Inner frame: ≥100°/s² Outer frame: ≥50°/s²
User Slip Ring	Customizable

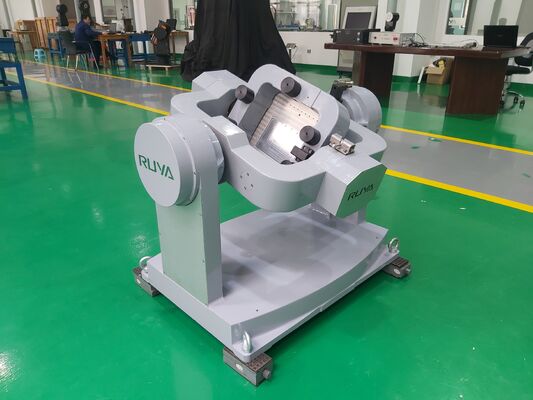

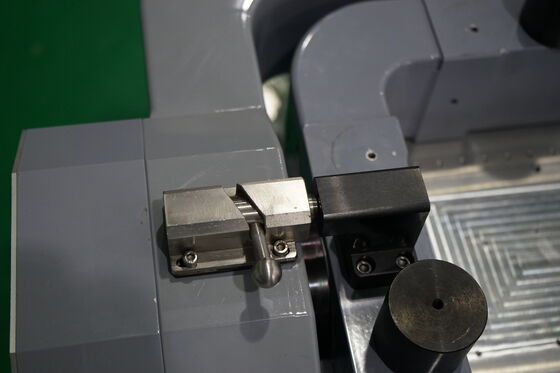

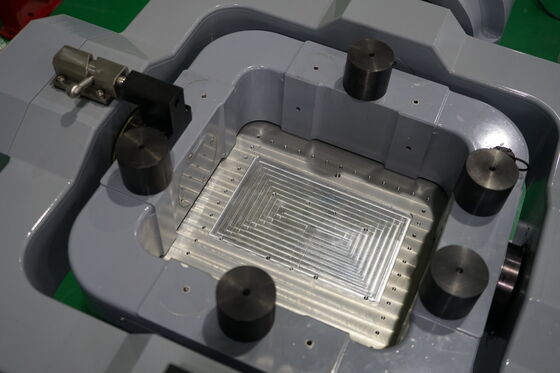

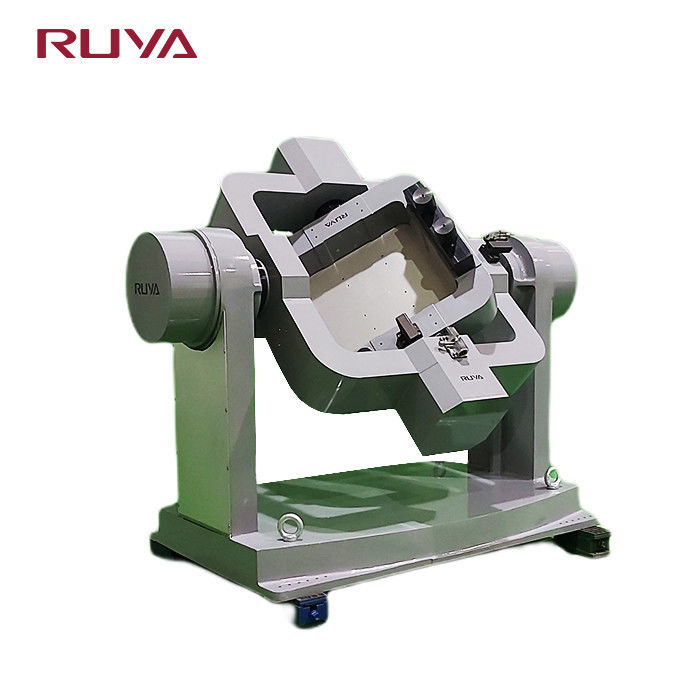

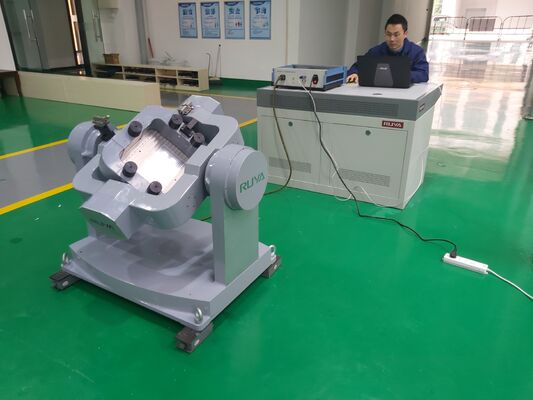

Product Images
