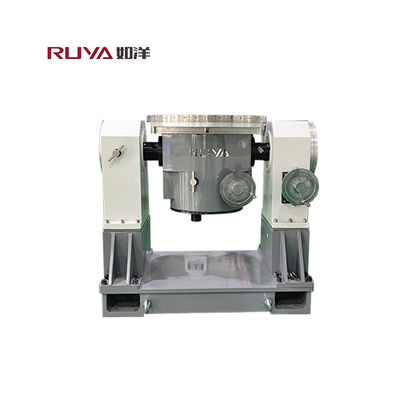

2ST580-A Dual Axis Manual Digital Display Position Turntable with 40Kg Load Weight

Name: 2ST580-A Dual Axis Manual Digital Display Position Turntable with 40Kg Load Weight
Brand: Jiujiang RUYA Precision Technology Co., Ltd
SKU: 2ST580-A
Availability: InStock

Brand Name:	RUYA
Model Number:	2ST580-A
MOQ:	1 set
Price:	negotiable
Delivery Time:	3-4 months
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Load Weight:

40Kg

Table Diameter:

Ф580mm

Table Flatness:

0.02mm

Table Runout:

0.02mm

Intersection:

Ф0.5mm Diameter Ball

Rotary Accuracy:

±3″

Perpendicularity:

±3″

Display Resolution:

0.0001°

Packaging Details:

wooden box

Supply Ability:

≤3 sets， 3 months

Highlight:

Dual Axis Position Turntable

Digital Display Position Turntable

2ST580-A positioning turntables

Product Description

2ST580-A Dual Axis Manual Digital Display Position Turntable

Product Overview

The 2ST580-A dual-axis manual digital display position turntable is a precision measurement and positioning device featuring two independently rotatable axes. This system allows manual operation of azimuth and pitch to specific angles, with corresponding angular positions displayed by independent digital display circuits that operate without mutual interference.

Technical Specifications

Specification	Value
Load Weight	40Kg
Table Diameter	Ф580mm
Table Flatness	0.02mm
Table Runout	0.02mm
Rotary Accuracy Of Dual-Axis	±3″
Perpendicularity Of Dual-Axis	±3″
Intersection Of Dual-Axis	Ф0.5mm diameter ball
Positioning Error Of Angular Position	Outer frame: ±5″ Inner frame: ±5″
Positioning Repeatability Of Angular Position	±2″
Angle Rotary Range	Inner frame: Continuous rotation Outer frame: ±90°
Display Mode	Degree: 0.0000-359.9999° Degrees, minutes and seconds: 0°0′0″-359°59′59″ Radian: 0.0000-6.2832
Display Resolution	0.0001°
