IPLAT-II-01 Damped Inertial Stabilization Platform

Name: IPLAT-II-01 Damped Inertial Stabilization Platform
Brand: Jiujiang RUYA Precision Technology Co., Ltd
SKU: iPLAT-II-01
Availability: InStock

Brand Name:	RUYA
Model Number:	iPLAT-II-01
MOQ:	1 set
Price:	negotiable
Delivery Time:	3-4 months
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Maximum Size Of Load:

≤Φ230×420

Maximum Weight Of Load:

≤40Kg

Angle Range:

≤±20°

Angular Rate Range:

≤60°

Angular Acceleration Range:

≤30°/s²

RMS:

≤10″

Dimension:

≤620mm×580mm×1100mm

Weight:

≤92Kg

Packaging Details:

wooden box

Supply Ability:

≤3 sets， 3 months

Highlight:

Damped Inertial stabilization platform

IPLAT-II-01 stabilization platform

stabilization platform

Product Description

iPLAT-II-01 Damped Inertial Stabilization Platform

Product Description

Damped Inertial Stabilization Platform(DISP) is a technical device used to keep a device or system stable in a specific direction. It uses inertial force and damping force to offset external interference, allowing the equipment on the platform to maintain a fixed posture or track a specific motion trajectory.

Product Parameters

Specification
1	Maximum Size Of Load		≤Φ230×420
2	Maximum Weight Of Load		≤40Kg
3	Horizontal Roll Axis	Angle Range	≤±20°
4		Angular Rate Range	≤60°
5		Angular Acceleration Range	≤30°/s²
6		Horizontal Error (RMS)	≤10″
7	Pitch Axis	Angle Range	≤±22°
8		Angular Rate Range	≤60°
9		Angular Acceleration Range	≤30°/s²
10		Horizontal Error (RMS)	≤10″
11	Dimension		≤620mm×580mm×1100mm
12	Weight		≤92Kg

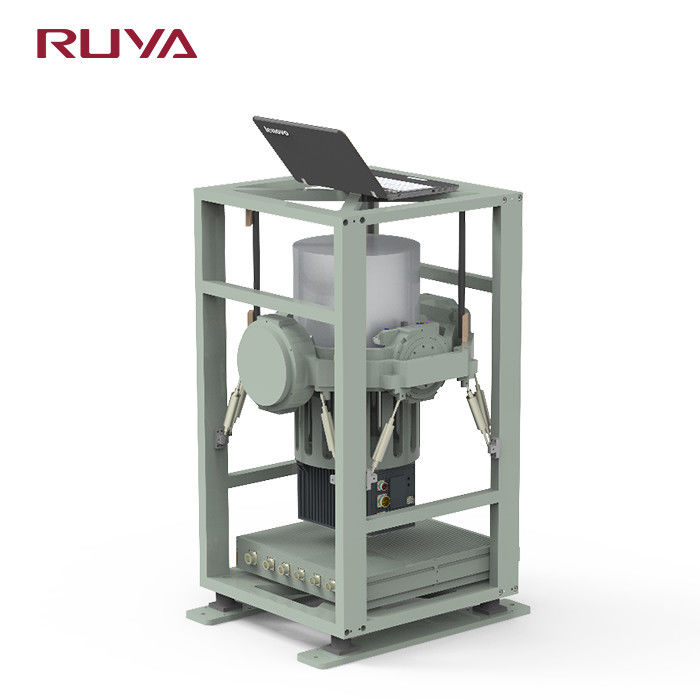

IPLAT-II-01 Damped Inertial Stabilization Platform 0

IPLAT-II-01 Damped Inertial Stabilization Platform 1
