IPLAT-I-01 Gyro Stabilized Platform Precise Inertial Navigation Control System

IPLAT-I-01 Gyro Stabilized Platform Precise Inertial Navigation Control System

IPLAT-I-01 Gyro Stabilized Platform Precise Inertial Navigation Control System

Brand Name:	RUYA
Model Number:	IPLAT-I-01
MOQ:	1 set
Price:	negotiable
Delivery Time:	3-4 months
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Maximum Size Of Load:

≤Φ330×600

Maximum Weight Of Load:

≤40Kg

Angle Range:

≤±18°

Angular Rate Range:

≤60°

Angular Acceleration Range:

≤30°/s²

RMS:

≤10″

Dimension:

≤580mm×580mm×650mm

Weight:

≤85Kg

Packaging Details:

wooden box

Supply Ability:

≤3 sets， 3 months

Highlight:

IPLAT-I-01 gyro stabilized platform

,

gyro stabilized platform

,

gyro stabilized platform IPLAT-I-01

Product Description

IPLAT-I-01 Gyro Stabilized Platform Precise Inertial Navigation Control System

Product Overview

The IPLAT-I-01 Gyro-Stabilized Platform is a precise inertial navigation and control system engineered to resist external interference and maintain spatial platform stability. This ensures that equipment or sensors mounted on the platform remain stable even during motion, delivering reliable performance in dynamic environments.

Technical Specifications

Parameter	Specification
Maximum Size Of Load	≤Φ330×600
Maximum Weight Of Load	≤40Kg
Horizontal Roll Axis
Angle Range	≤±18°
Angular Rate Range	≤60°
Angular Acceleration Range	≤30°/s²
Horizontal Error (RMS)	≤10″
Pitch Axis
Angle Range	≤±18°
Angular Rate Range	≤60°
Angular Acceleration Range	≤30°/s²
Horizontal Error (RMS)	≤10″
Dimension	≤580mm×580mm×650mm
Weight	≤85Kg

Product Images

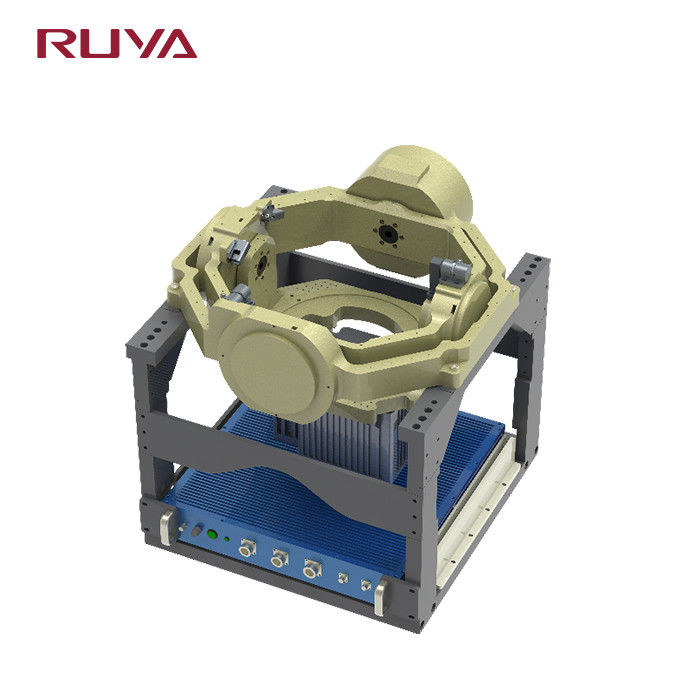

IPLAT-I-01 Gyro Stabilized Platform external view showing mechanical structure and mounting points

IPLAT-I-01 Gyro Stabilized Platform internal components and stabilization mechanism details
