2ST580-A Dual Axis Manual Digital Display Position Turntable

Name: 2ST580-A Dual Axis Manual Digital Display Position Turntable
Brand: Jiujiang RUYA Precision Technology Co., Ltd
SKU: 2ST580-A
Availability: InStock

Brand Name:	RUYA
Model Number:	2ST580-A
MOQ:	1 set
Price:	negotiable
Delivery Time:	3-4 months
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Load Weight:

40Kg

Table Diameter:

Ф580mm

Table Flatness:

0.02mm

Table Runout:

0.02mm

Intersection:

Ф0.5mm Diameter Ball

Rotary Accuracy:

±3″

Perpendicularity:

±3″

Display Resolution:

0.0001°

Packaging Details:

wooden box

Supply Ability:

≤3 sets， 3 months

Highlight:

Dual Axis Position Turntable

Digital Display Position Turntable

2ST580-A positioning turntables

Product Description

2ST580-A Dual-axis Manual Digital Display Position Turntable

Product Description

The dual-axis manual digital display position turntable is a device used for precision measurement and positioning. It usually consists of two axis that can be rotated independently. Its azimuth and pitch can be manually operated to a certain angle, and the corresponding angular position is displayed by respective digital display circuits. The digital display circuits work independently without interfering with each other.

Product Parameters

Specification
1	Load Weight	40Kg
2	Table Diameter	Ф580mm
3	Table Flatness	0.02mm
4	Table Runout	0.02mm
5	Rotary Accuracy Of Dual-Axis	±3″
6	Perpendicularity Of Dual-Axis	±3″
7	Intersection Of Dual-Axis	Ф0.5mm diameter ball
8	Positioning Error Of Angular Position	outer frame:±5″
8	Positioning Error Of Angular Position	inner frame:±5″
9	Positioning Repeatability Of Angular Position	±2″
10	Angle Rotary Range	inner frame:continuous rotation
10	Angle Rotary Range	outer frame:±90°
11	Display Mode	Degree:0.0000-359.9999°
		Degrees, minutes and seconds:0°0′0″-359°59′59″
		Radian:0.0000-6.2832
12	Display Resolution	0.0001°

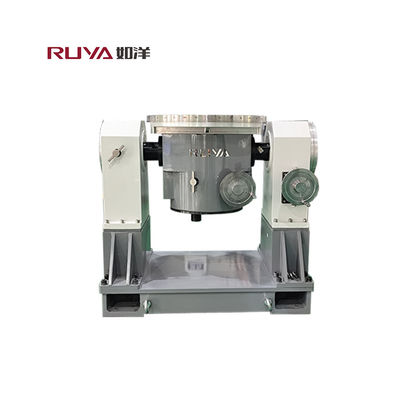

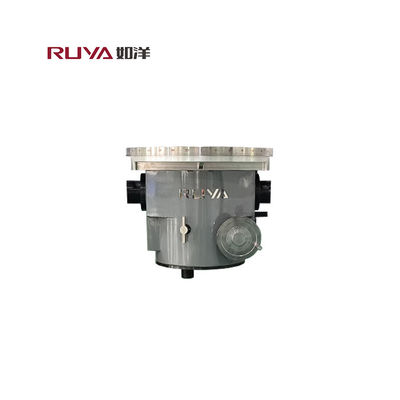

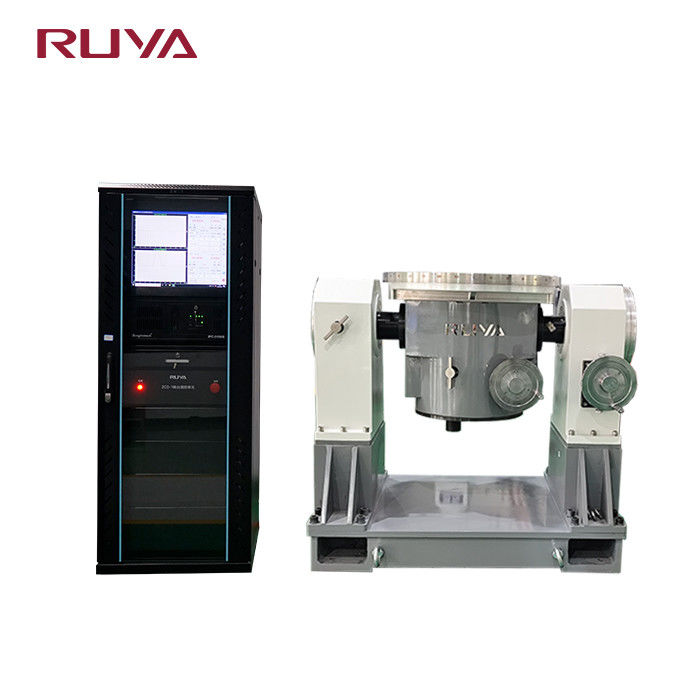

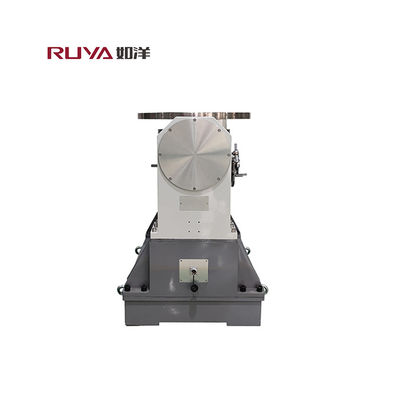

2ST580-A Dual Axis Manual Digital Display Position Turntable 0

2ST580-A Dual Axis Manual Digital Display Position Turntable 1
