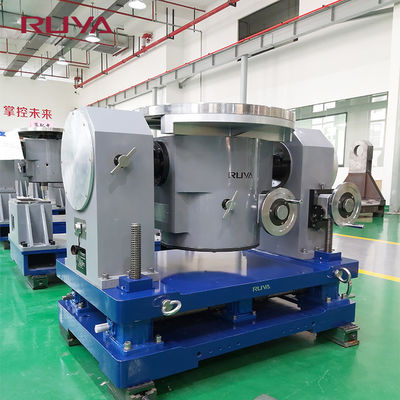

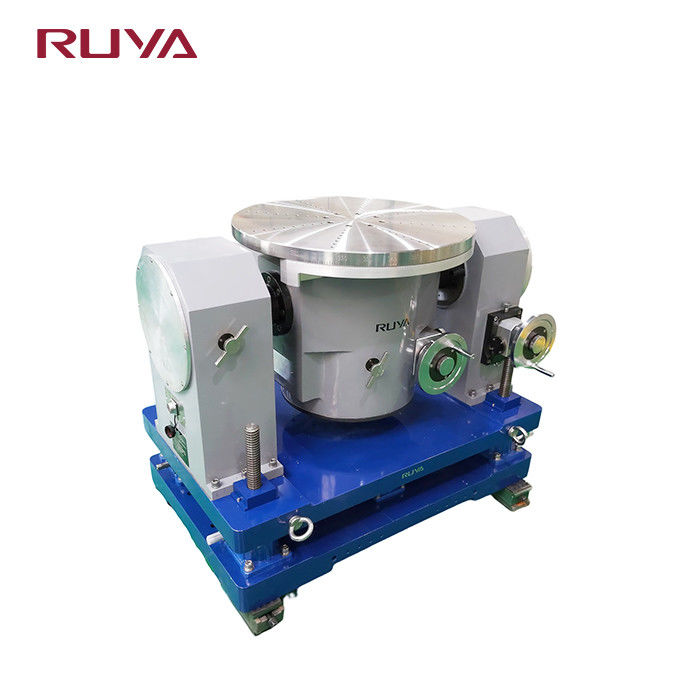

2ST580-AH Dual Axis Manual Digital Display Position Turntable With Lifting

Name: 2ST580-AH Dual Axis Manual Digital Display Position Turntable With Lifting
Brand: Jiujiang RUYA Precision Technology Co., Ltd
SKU: 2ST580-AH
Availability: InStock

Brand Name:	RUYA
Model Number:	2ST580-AH
MOQ:	1 set
Price:	negotiable
Delivery Time:	3-4 months
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Load Weight:

40Kg

Rotary Accuracy:

±3″

Perpendicularity:

±3″

Positioning Repeatability:

±2″

Display Resolution:

0.0001°

Lift Range:

200mm

Angle Rotary Range( Inner Frame):

Continuous Rotation

Angle Rotary Range( Outer Frame):

±90°

Packaging Details:

wooden box

Supply Ability:

≤3 sets， 3 months

Highlight:

2ST580-AH 2 Axis Turntable

Manual 2 Axis Turntable

40Kg dual axis turntable

Product Description

2ST580-AH dual-axis manual digital display position turntable with lifting

Product Description

2ST580-AH dual-axis manual digital display position turntable with lift is mainly used for static attitude simulation of the two degrees of freedom of the inner and outer rings of the test piece individually or simultaneously. It can also be used to detect the angle output accuracy or calibration of the inner and outer rings of the test piece. Both axis are manually operated and have fine adjustment functions and locking devices.

Product Parameters

Specification
1	Load Weight	40Kg

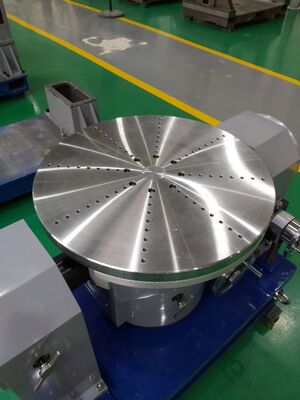

2	Table Diameter	Ф580mm
3	Table Flatness	0.02mm
4	Table Runout	0.02mm
5	Rotary Accuracy Of Dual-Axis	±3″
6	Perpendicularity Of Dual-Axis	±3″
7	Intersection Of Dual-Axis	Ф0.5mm diameter ball
8	Positioning Error Of Angular Position	outer frame:±5″
8	Positioning Error Of Angular Position	inner frame:±5″
9	Positioning Repeatability Of Angular Position	±2″
10	Angle Rotary Range	inner frame:continuous rotation
10	Angle Rotary Range	outer frame:±90°

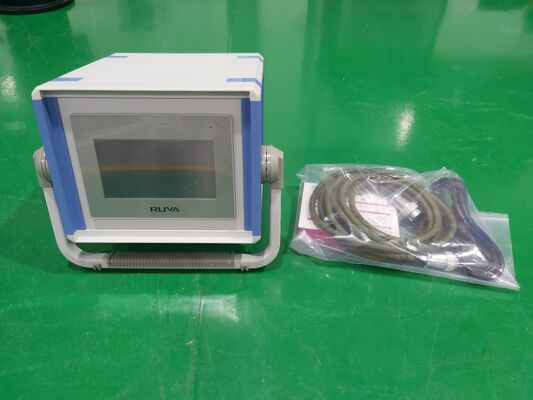

11	Display Mode	Degree:0.0000-359.9999°
		Degrees, minutes and seconds:0°0′0″-359°59′59″
		Radian:0.0000-6.2832
12	Display Resolution	0.0001°
13	Lift Range	200mm

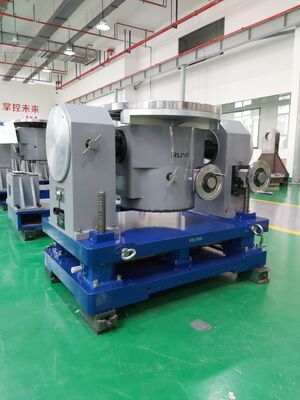

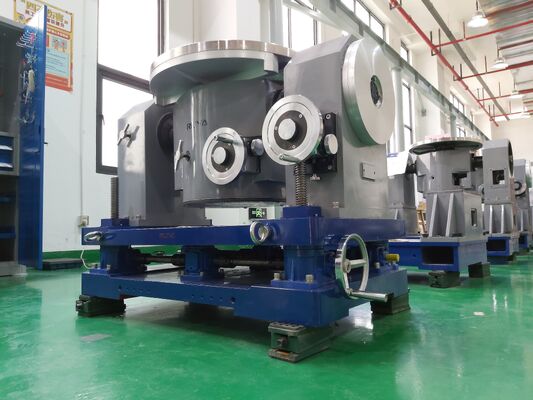

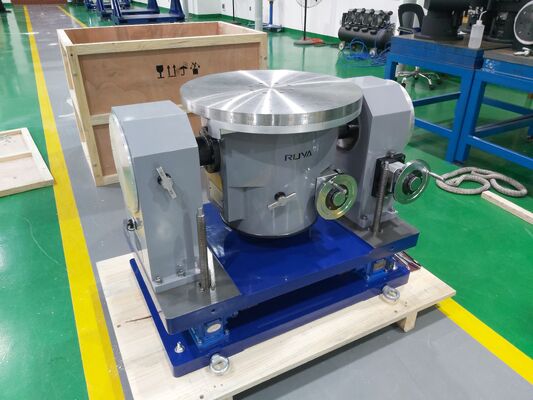

2ST580-AH Dual Axis Manual Digital Display Position Turntable With Lifting 0

2ST580-AH Dual Axis Manual Digital Display Position Turntable With Lifting 1
