2ST580-AH Dual Axis Manual Turntable with 200mm Lift Range for Precise Positioning

Name: 2ST580-AH Dual Axis Manual Turntable with 200mm Lift Range for Precise Positioning
Brand: Jiujiang RUYA Precision Technology Co., Ltd
SKU: 2ST580-AH
Availability: InStock

Brand Name:	RUYA
Model Number:	2ST580-AH
MOQ:	1 set
Price:	negotiable
Delivery Time:	3-4 months
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Load Weight:

40Kg

Rotary Accuracy:

±3″

Perpendicularity:

±3″

Positioning Repeatability:

±2″

Display Resolution:

0.0001°

Lift Range:

200mm

Angle Rotary Range( Inner Frame):

Continuous Rotation

Angle Rotary Range( Outer Frame):

±90°

Packaging Details:

wooden box

Supply Ability:

≤3 sets， 3 months

Highlight:

2ST580-AH 2 Axis Turntable

Manual 2 Axis Turntable

40Kg dual axis turntable

Product Description

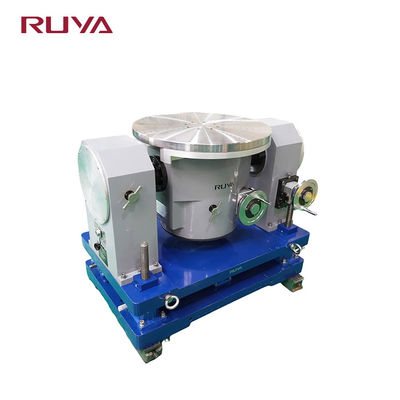

2ST580-AH Dual Axis Manual Digital Display Position Turntable With Lifting

Product Overview

The 2ST580-AH dual-axis manual digital display position turntable with lift is designed for static attitude simulation of the two degrees of freedom of the inner and outer rings of test pieces, either individually or simultaneously. This precision instrument is also suitable for detecting angle output accuracy and calibration of test piece components.

Manual operation with fine adjustment capabilities
Dual-axis positioning with locking devices

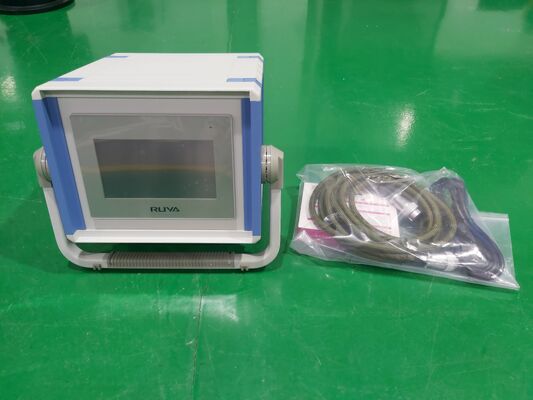

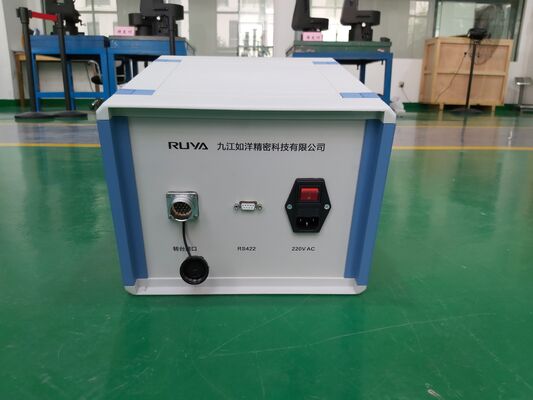

Digital display for precise measurement
Integrated lifting mechanism

Technical Specifications

Specification	Value
Load Weight	40Kg
Table Diameter	Ф580mm
Table Flatness	0.02mm
Table Runout	0.02mm
Rotary Accuracy Of Dual-Axis	±3″
Perpendicularity Of Dual-Axis	±3″
Intersection Of Dual-Axis	Ф0.5mm diameter ball
Positioning Error Of Angular Position	Outer frame: ±5″ Inner frame: ±5″
Positioning Repeatability Of Angular Position	±2″
Angle Rotary Range	Inner frame: Continuous rotation Outer frame: ±90°
Display Mode	Degree: 0.0000-359.9999° Degrees, minutes and seconds: 0°0′0″-359°59′59″ Radian: 0.0000-6.2832
Display Resolution	0.0001°
Lift Range	200mm

Product Images
