2 Axis Turntable
Created with Pixso. 2DT450-A Dual Axis Electric Rate Positioning Turntable with 450mm Table Diameter
name
  • name
  • name
  • name
  • name
  • name
  • name
  • name
  • name
  • name

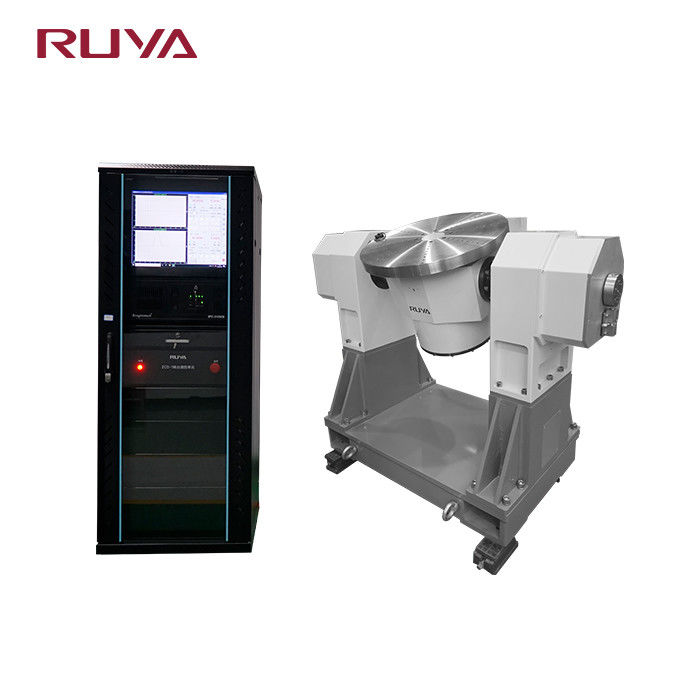

2DT450-A Dual Axis Electric Rate Positioning Turntable with 450mm Table Diameter

Brand Name: RUYA
Model Number: 2DT450-A
MOQ: 1 set
Price: negotiable
Delivery Time: 3-4 months
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO 9001
Table Diameter:
Ф400mm
Table Flatness:
0.02mm
Table Runout:
0.02mm
Rotary Accuracy:
±3″
Perpendicularity:
±3″
Weight:
≤750Kg
Table Body Dimensions:
1320×700×960 Mm
User Slip Ring:
Customizable
Packaging Details:
wooden box
Supply Ability:
≤3 sets， 3 months
Highlight:

Dual Axis positioning turntables

,

Electric Rate positioning turntables

,

2DT450-A electric positioning turntables

Product Description
2DT450-A Dual Axis Electric Rate Positioning Turntables
Product Overview

The 2DT450-A dual-axis electric rate position turntable integrates azimuth and pitch axes, providing fully automatic high-precision motion control. This system is widely used for performance testing in aerospace, photoelectric detection, and guidance systems. The tabletop accommodates various fixtures and is suitable for testing parts of different sizes, enabling efficient rate swing, dynamic tracking, and environmental adaptability testing to enhance product reliability and testing efficiency.

Technical Specifications
Specification Details
Load Weight 30Kg
Table Diameter Ф450mm
Table Flatness 0.02mm
Table Runout 0.02mm
Rotary Accuracy Of Dual-Axis ±3″
Perpendicularity Of Dual-Axis ±3″
Intersection Of Dual-Axis Ф0.5mm diameter ball
Positioning Error Of Angular Position Outer frame: ±3″
Inner frame: ±3″
Positioning Repeatability Of Angular Position ±2″
Rate Range Inner frame: 0.01°/s~800°/s
Outer frame: 0.01°/s~300°/s
Rate Accuracy ω≤1°/s: 2×10⁻³ (1° average)
1°/s≤ω<10°/s: 2×10⁻⁴ (10° average)
ω≥10°/s: 2×10⁻⁵ (360° average)
Maximum Angular Acceleration Inner frame: ≥200°/s²
Outer frame: ≥100°/s²
User Slip Ring Customizable
Weight ≤750Kg
Table Body Dimensions 1320×700×960 mm

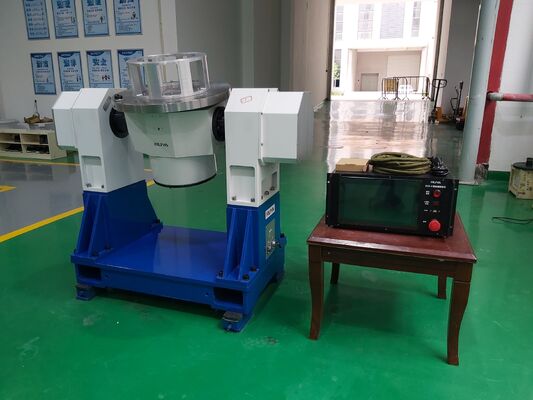

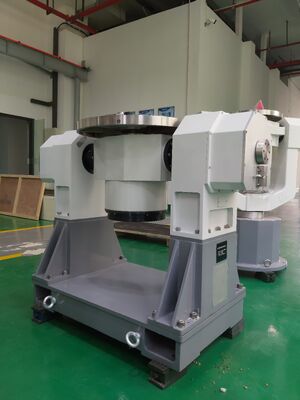

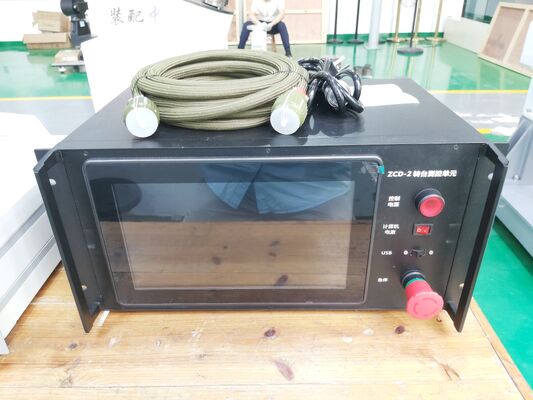

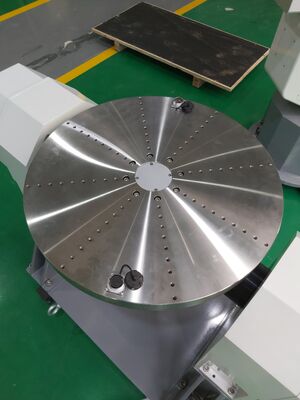

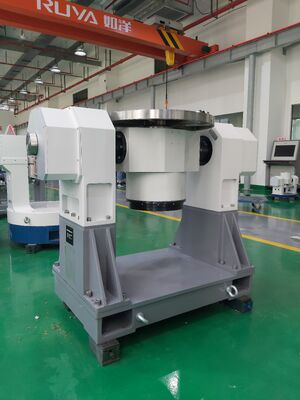

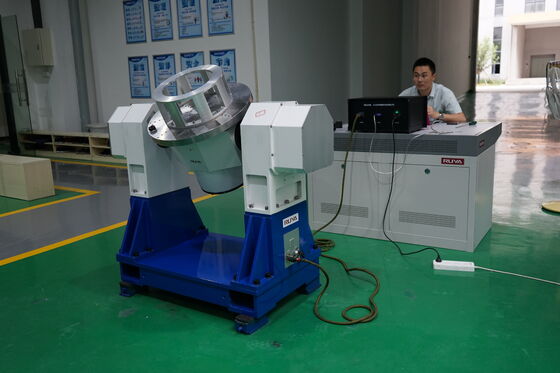

2DT450-A Dual Axis Electric Rate Positioning Turntable with 450mm Table Diameter 0


2DT450-A Dual Axis Electric Rate Positioning Turntable with 450mm Table Diameter 1


2DT450-A Dual Axis Electric Rate Positioning Turntable with 450mm Table Diameter 2

2DT450-A Dual Axis Electric Rate Positioning Turntable with 450mm Table Diameter 3







2DT450-A Dual Axis Electric Rate Positioning Turntable with 450mm Table Diameter 4
