High-Speed Single-Axis Rate Table with Maximum Rate ≥20000°/s

High-Speed Single-Axis Rate Table with Maximum Rate ≥20000°/s

Brand Name:	RUYA
Model Number:	/
MOQ:	1 set
Price:	negotiable
Delivery Time:	2-3 months
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Tabletop Diameter:

450 Mm

Maximum Load:

≥5 Kg

Tabletop Flatness:

±0.02 Mm

Minimum Rate:

≤10°/s

Maximum Rate:

≥20000°/s

Maximum Angular Acceleration:

≥2000°/s²

Positional Resolution:

1″

Packaging Details:

wooden box

Supply Ability:

≤3 sets，3 months

Highlight:

Maximum rate ≥20000°/s Single-Axis Rate Table

Tabletop flatness ±0.02 mm 1 Axis Turntable

Maximum angular acceleration ≥2000°/s² High-Speed Rotary Testing Platform

Product Description

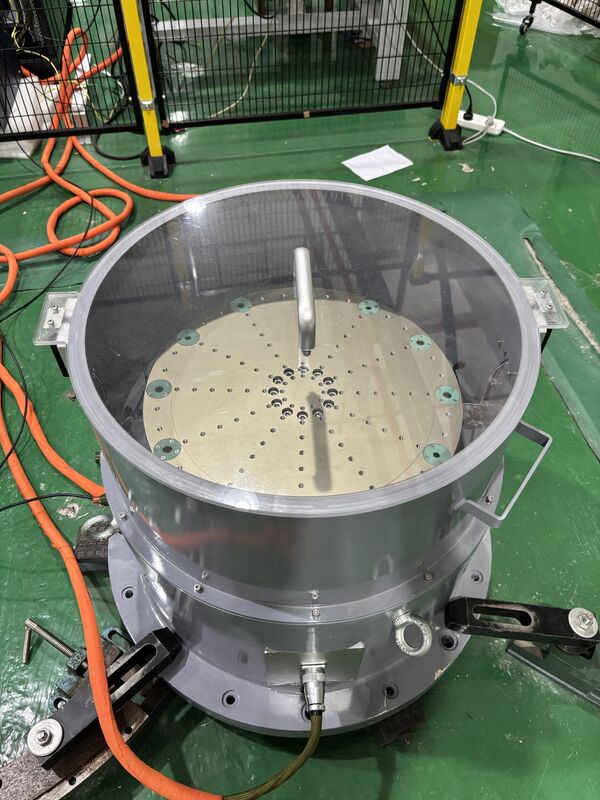

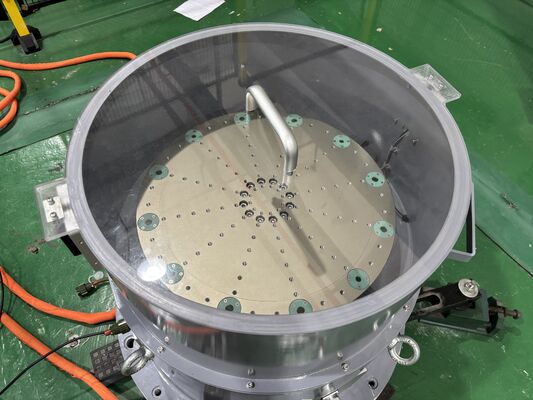

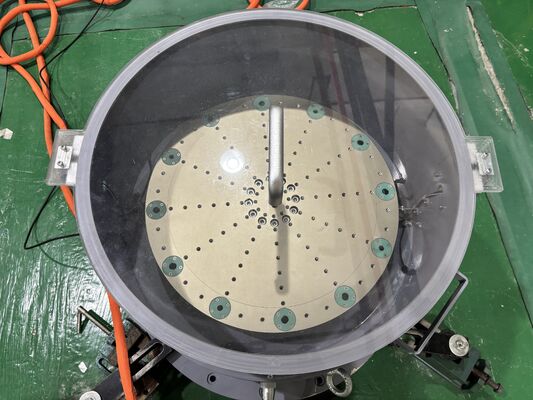

High-Speed Single-Axis Rate Table

Product Overview

A high-speed single-axis rate table is specifically designed for the calibration of angular rate sensors. It supports continuous 360° rotation and integrates three operating modes—position, rate, and swing—featuring a wide speed range, rapid response, high stability, and high positioning accuracy. Widely used for inertial component calibration, sensor testing, optoelectronic inspection, and attitude simulation for intelligent vehicles, it serves as a standard high-speed rotary testing platform for both laboratories and production lines.

Technical Specifications

Tabletop diameter	450 mm
Maximum load	≥5 kg
Tabletop flatness	±0.02 mm
Minimum rate	≤10°/s
Maximum rate	≥20000°/s
Maximum angular acceleration	≥2000°/s²
Positional resolution	1″

High-Speed Single-Axis Rate Table with Maximum Rate ≥20000°/s
