1 Axis Turntable
Created with Pixso. DT160-A 30kg Payload Single Axis Small Tabletop Electric Turntable With 160mm Table Diameter
DT160-A 30kg Payload Single Axis Small Tabletop Electric Turntable With 160mm Table Diameter
  • name
  • name
  • name
  • name

DT160-A 30kg Payload Single Axis Small Tabletop Electric Turntable With 160mm Table Diameter

Brand Name: RUYA
Model Number: DT160-A
MOQ: 1 set
Price: negotiable
Delivery Time: 2-3 months
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO 9001
Table Diameter:
Ф160mm
Table Flatness:
0.02mm
Table Runout:
0.02mm
Rotary Accuracy:
±3″
Positioning Error:
±3″
Positioning Repeatability:
±2″
Rate Resolution:
0.0001°/s
Maximum Angular Acceleration:
≥50°/s²
Packaging Details:
wooden box
Supply Ability:
≤3 sets，3 months
Highlight:

Single Axis electric turntable

,

30kg electric turntable

,

DT160-A electric turntables

Product Description
DT160-A Small Payload 30kg Single Axis Electric Turntable
Product Overview

The DT160-A single-axis electric turntable is primarily designed for testing, production debugging, and maintenance calibration of resolver indexing errors. It serves angular position and rate functional testing applications with stable performance, reliable operation, and simple user interface. The equipment is also suitable for experimental testing of other inertial components and devices.

Technical Specifications
Specification Value
Load Weight 30Kg
Table Diameter Ф160mm
Table Flatness 0.02mm
Table Runout 0.02mm
Rotary Accuracy Of Axis ±3″
Positioning Error Of Angular Position ±3″
Positioning Repeatability Of Angular Position ±2″
Rate Range ±0.0001°/s~±300°/s
Rate Resolution 0.0001°/s
Rate Accuracy ω≤1°/s: 2*10⁻³ (1° average)
1°/s≤ω<10°/s: 2*10⁻⁴ (10° average)
ω≥10°/s: 2*10⁻⁵ (360° average)
Maximum Angular Acceleration ≥50°/s²
User Slip Ring Customizable

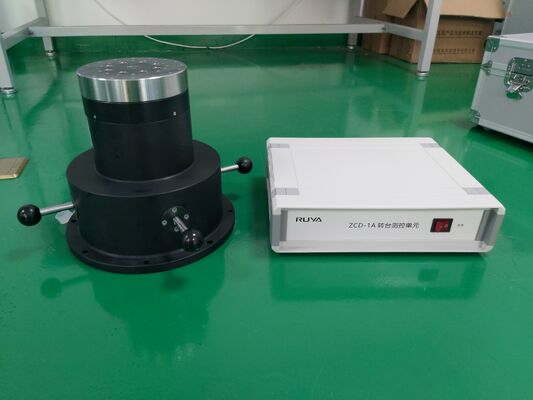

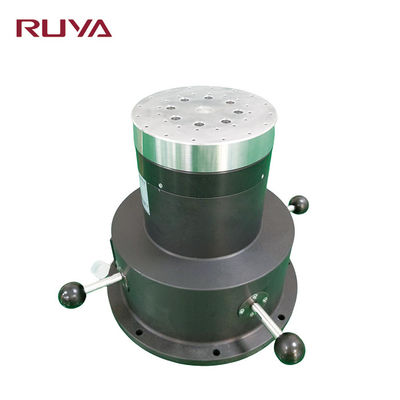

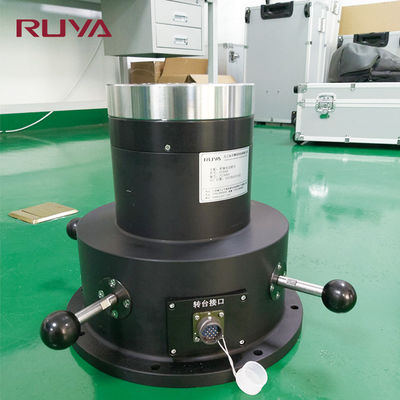

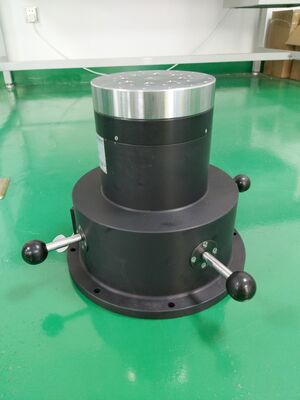

Product Images
DT160-A 30kg Payload Single Axis Small Tabletop Electric Turntable With 160mm Table Diameter 0 DT160-A 30kg Payload Single Axis Small Tabletop Electric Turntable With 160mm Table Diameter 1
