DT300-AS Single Axis Electric Turntable with 5kg Payload 0.02mm Flatness for Precision Testing

Name: DT300-AS Single Axis Electric Turntable with 5kg Payload 0.02mm Flatness for Precision Testing
Brand: Jiujiang RUYA Precision Technology Co., Ltd
SKU: DT300-AS
Availability: InStock

Brand Name:	RUYA
Model Number:	DT300-AS
MOQ:	1 set
Price:	negotiable
Delivery Time:	2-3 months
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Load Weight:

5KG

Table Diameter:

Ф300mm

Rate Range:

±0.0001°/s~±500°/s

Maximum Angular Acceleration:

≥100°/s²

User Slip Ring:

Customizable

Table Flatness:

0.02mm

Table Runout:

0.02mm

Rate Resolution:

0.0001°/s

Packaging Details:

wooden box

Supply Ability:

≤3 sets，3 months

Highlight:

5kg test turntable

Single Axis test turntable

DT300-AS test turntables

Product Description

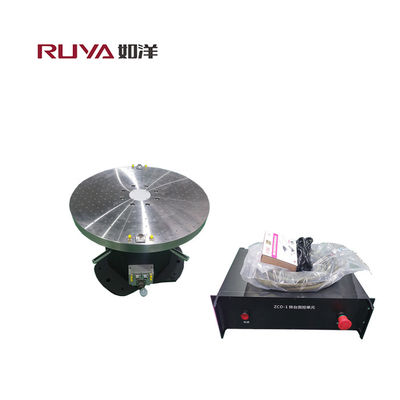

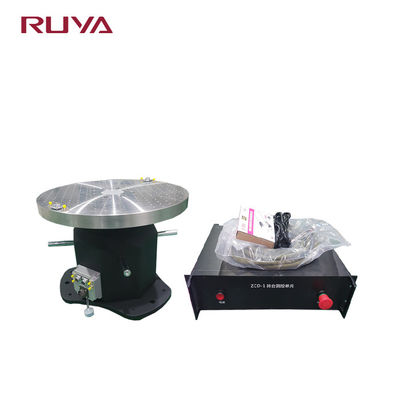

DT300-AS Small Payload 5kg Single Axis Electric Rate Position Test Turntable

Product Overview

Small electric turntables are designed for functional testing of precision components, including component velocity and position measurements.

Key Functions

Angular Position Function: Software sets target angular position, starting acceleration, and maximum speed to control turntable rotation to the target position.

Angular Rate Function: Software sets target rate and starting acceleration to control turntable operation at a constant rate.

Technical Specifications

Specification	Value
Load Weight	5Kg
Table Diameter	Ф300mm
Table Flatness	0.02mm
Table Runout	0.02mm
Rotary Accuracy Of Axis	±3″
Positioning Error Of Angular Position	±3″
Positioning Repeatability Of Angular Position	±2″
Rate Range	±0.0001°/s~±500°/s
Rate Resolution	0.0001°/s
Rate Accuracy	ω≤1°/s: 210⁻³ (1° average) 1°/s≤ω<10°/s: 210⁻⁴ (10° average) ω≥10°/s: 2*10⁻⁵ (360° average)
Maximum Angular Acceleration	≥100°/s²
User Slip Ring	Customizable
