1 Axis Rate Table Single-axis Electric Inertial Navigation Test Turntable

Brand Name:	RUYA
MOQ:	1 set
Price:	negotiable
Delivery Time:	2-3 months
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Load Weight:

40Kg

Table Diameter:

Ф350mm

Positioning Error:

±2″

Positioning Repeatability:

±2″

Table Flatness:

0.02mm

Table Runout:

0.02mm

Maximum Angular Acceleration:

≥200°/s²

Rate Range:

±0.0001°/s~±300°/s

Packaging Details:

wooden box

Supply Ability:

≤3 sets， 3 months

Product Description

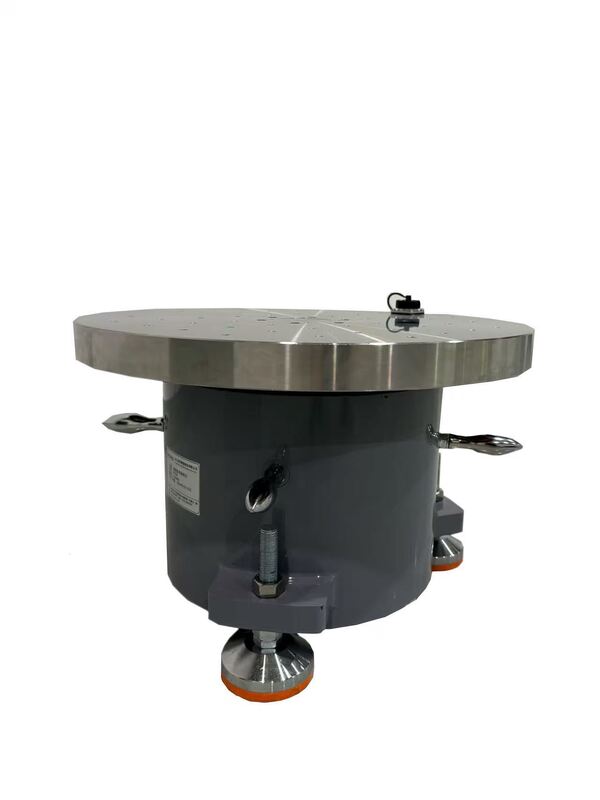

1 Axis Rate Table Single-axis Electric Inertial Navigation Test Turntable

Product Description

As a precision inertial testing apparatus, the single-axis electric turntable plays an indispensable role in the R&D and manufacturing of fiber optic gyroscopes and IMUs, providing accurate and repeatable test conditions for rate, position, and swing performance evaluations. Characterized by stable running status, simplified operation procedures, easy transportation, and economical cost, it effectively reduces the threshold for inertial product testing while ensuring test accuracy. The built-in stable support frame optimizes the testing setup process, enabling operators to conduct efficient and hassle-free experiments. Moreover, its cross-compatibility extends its utility to experimental verification of various other inertial components, making it a cost-efficient and multi-functional solution for inertial technology research institutions and manufacturing enterprises.

Product Parameters

Specification
1	Load Weight	40Kg
2	Table Diameter	Ф350mm
3	Table Flatness	0.02mm
4	Table Runout	0.02mm
5	Rotary Accuracy Of Axis	±2″
6	Positioning Error Of Angular Position	±2″
7	Positioning Repeatability Of Angular Position	±2″
8	Rate Range	±0.0001°/s~±300°/s；
9	Rate Accuracy	ω≤1°/s , 2×10^-3 (1° average)
		1°/s≤ω<10°/s , 2×10^-4 (10° average)
		ω≥10°/s , 2×10^-5 (360° average)
10	Maximum Angular Acceleration	≥200°/s²
11	User Slip Ring	Customizable

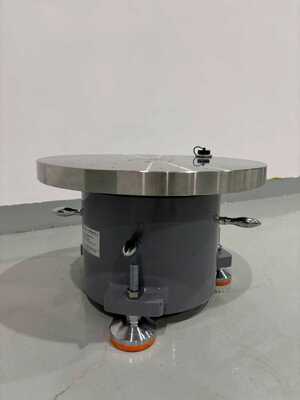

1 Axis Rate Table Single-axis Electric Inertial Navigation Test Turntable 0

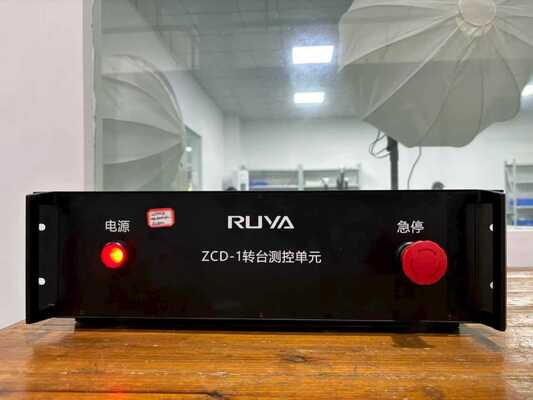

1 Axis Rate Table Single-axis Electric Inertial Navigation Test Turntable 1

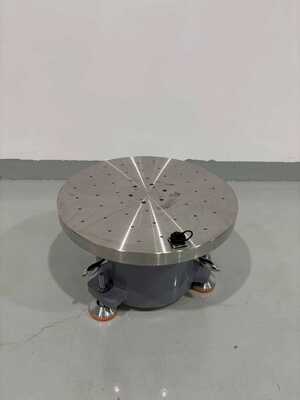

1 Axis Rate Table Single-axis Electric Inertial Navigation Test Turntable 2

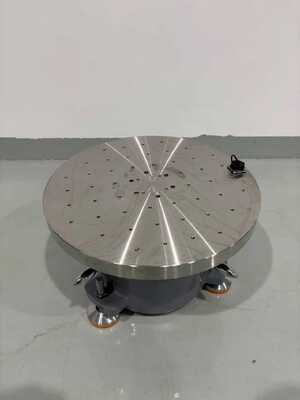

1 Axis Rate Table Single-axis Electric Inertial Navigation Test Turntable 3

Our customers

1 Axis Rate Table Single-axis Electric Inertial Navigation Test Turntable 4
