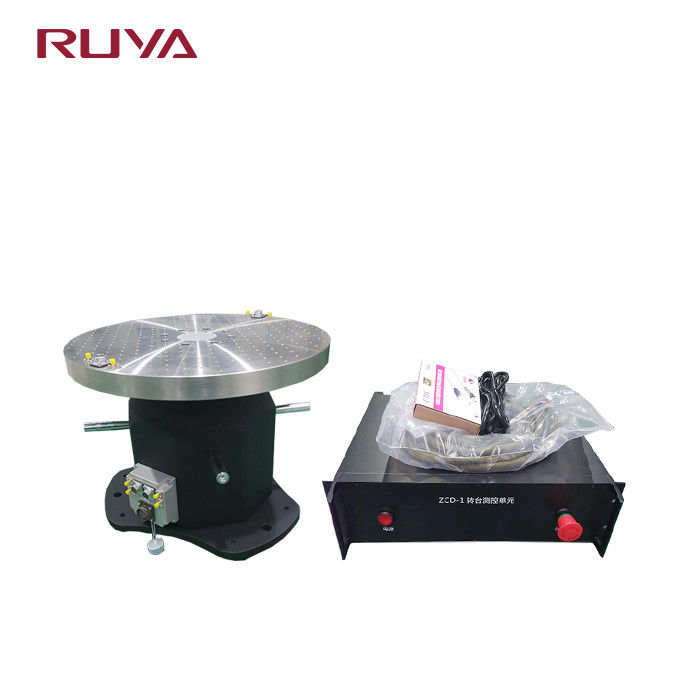

DT300-AS Small Payload 5kg Single Axis Electric Rate Position Test Turntable

Name: DT300-AS Small Payload 5kg Single Axis Electric Rate Position Test Turntable
Brand: Jiujiang RUYA Precision Technology Co., Ltd
SKU: DT300-AS
Availability: InStock

Brand Name:	RUYA
Model Number:	DT300-AS
MOQ:	1 set
Price:	negotiable
Delivery Time:	2-3 months
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Load Weight:

5KG

Table Diameter:

Ф300mm

Rate Range:

±0.0001°/s~±500°/s

Maximum Angular Acceleration:

≥100°/s²

User Slip Ring:

Customizable

Table Flatness:

0.02mm

Table Runout:

0.02mm

Rate Resolution:

0.0001°/s

Packaging Details:

wooden box

Supply Ability:

≤3 sets，3 months

Highlight:

5kg test turntable

Single Axis test turntable

DT300-AS test turntables

Product Description

DT300-AS Small Payload 5kg Single-axis Electric Rate Position Test Turntable

Product Description

Small electric turntables are used for functional testing of precision components, component velocity and position.

Angular position function: The software sets the target angular position, starting acceleration and maximum speed, and controls the turntable to rotate to the target angular position.

Angular rate function: The software sets the target rate and starting acceleration to control the turntable to run at a constant rate.

Product Parameters

Specification
1	Load Weight	5Kg
2	Table Diameter	Ф300mm
3	Table Flatness	0.02mm
4	Table Runout	0.02mm
5	Rotary Accuracy Of Axis	±3″
6	Positioning Error Of Angular Position	±3″
7	Positioning Repeatability Of Angular Position	±2″
8	Rate Range	±0.0001°/s~±500°/s
9	Rate Resolution	0.0001°/s
10	Rate Accuracy	ω≤1°/s , 2×10-3 (1° average)
		1°/s≤ω<10°/s , 2×10-4 (10° average)
		ω≥10°/s , 2×10-5 (360° average)
11	Maximum Angular Acceleration	≥100°/s²
12	User Slip Ring	Customizable

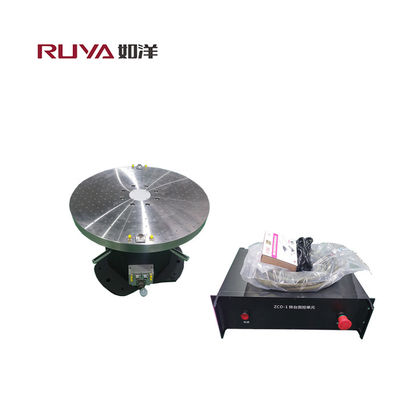

DT300-AS Small Payload 5kg Single Axis Electric Rate Position Test Turntable 0

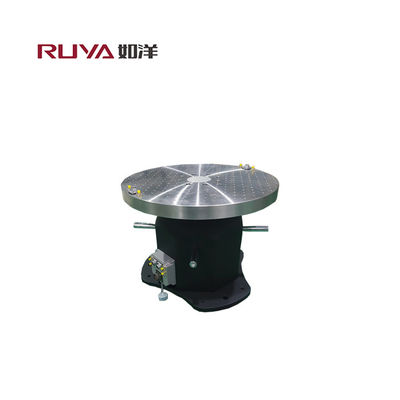

DT300-AS Small Payload 5kg Single Axis Electric Rate Position Test Turntable 1
