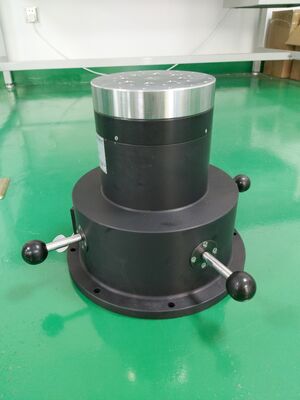

DT160-A Small Payload 30kg Single Axis Electric Turntable

Name: DT160-A Small Payload 30kg Single Axis Electric Turntable
Brand: Jiujiang RUYA Precision Technology Co., Ltd
SKU: DT160-A
Availability: InStock

Brand Name:	RUYA
Model Number:	DT160-A
MOQ:	1 set
Price:	negotiable
Delivery Time:	2-3 months
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Table Diameter:

Ф160mm

Table Flatness:

0.02mm

Table Runout:

0.02mm

Rotary Accuracy:

±3″

Positioning Error:

±3″

Positioning Repeatability:

±2″

Rate Resolution:

0.0001°/s

Maximum Angular Acceleration:

≥50°/s²

Packaging Details:

wooden box

Supply Ability:

≤3 sets，3 months

Highlight:

Single Axis electric turntable

30kg electric turntable

DT160-A electric turntables

Product Description

DT160-A Small Payload 30kg Single-axis Electric Turntable

Product Description

The single-axis electric turntable is mainly used for testing, production debugging and maintenance calibration of resolver indexing errors; it is used for angular position and rate functional tests. It has the characteristics of stable performance, reliable operation and simple operation. The equipment can also be used for experimental testing of other inertial components and devices.

Product Parameters

Specification
1	Load Weight	30Kg
2	Table Diameter	Ф160mm
3	Table Flatness	0.02mm
4	Table Runout	0.02mm
5	Rotary Accuracy Of Axis	±3″
6	Positioning Error Of Angular Position	±3″
7	Positioning Repeatability Of Angular Position	±2″
8	Rate Range	±0.0001°/s~±300°/s
9	Rate Resolution	0.0001°/s
10	Rate Accuracy	ω≤1°/s , 2×10-3 (1° average)
		1°/s≤ω<10°/s , 2×10-4 (10° average)
		ω≥10°/s , 2×10-5 (360° average)
11	Maximum Angular Acceleration	≥50°/s²
12	User Slip Ring	Customizable

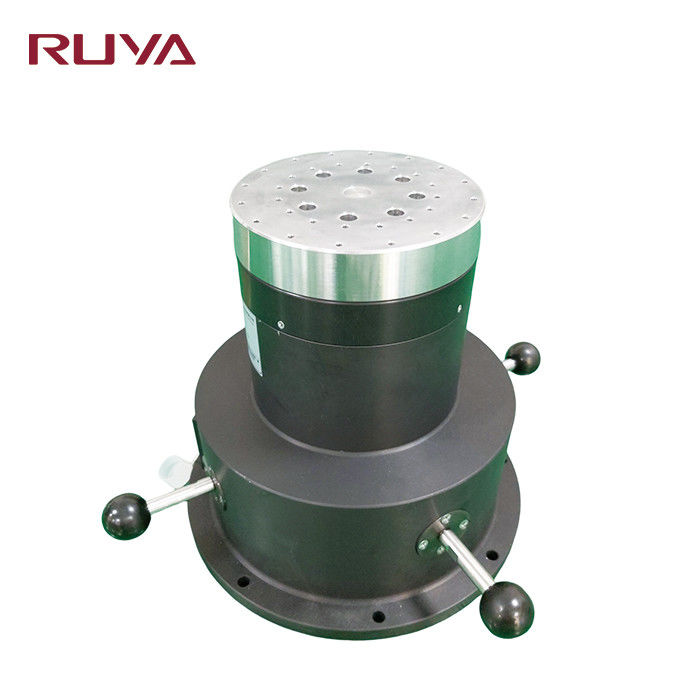

DT160-A Small Payload 30kg Single Axis Electric Turntable 0

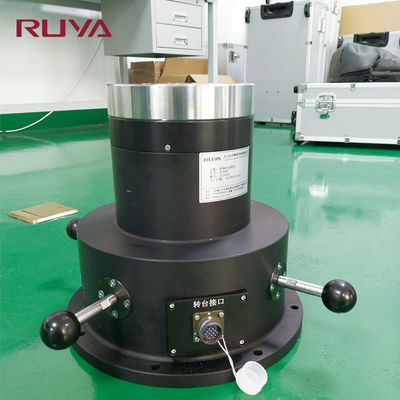

DT160-A Small Payload 30kg Single Axis Electric Turntable 1
