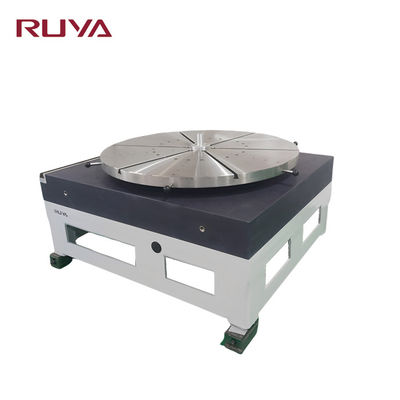

ST1000-D High Precision Rotary Platform With 400mm Payload 100kg

Name: ST1000-D High Precision Rotary Platform With 400mm Payload 100kg
Brand: Jiujiang RUYA Precision Technology Co., Ltd
SKU: ST1000-D
Availability: InStock

Brand Name:	RUYA
Model Number:	ST1000-D
MOQ:	1 set
Price:	negotiable
Delivery Time:	2-3 months
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Load Weight:

100KG

Table Diameter:

Ф400mm

Table Flatness:

0.025mm

Table Runout:

0.025mm

Rotation Mode:

Manual

Braking Mode:

Handbrake

Positioning Repeatability:

±0.1°

Measuring Range:

0~360°

Packaging Details:

wooden box

Supply Ability:

≤3 sets，3 months

Highlight:

High Precision rotary platform

400mm rotary platform

100kg rotary platforms

Product Description

ST1000-D High-precision Rotary Platform With Ф400mm Payload 100kg

Product Description

High-precision rotary platform equipment is mainly used as an auxiliary inspection machine in the aerospace and CNC machining industries, and is used to measure the shape and position deviations of disc shafts and ring components.

Product Parameters

Specification
1	Load Weight	100Kg
2	Table Diameter	Ф400mm
3	Table Flatness	0.025mm
4	Table Runout	0.025mm
5	Rotation Mode	Manual
6	Braking Mode	Handbrake
7	Positioning Repeatability Of Angular Position	±0.1°
8	Measuring Range	0~360°

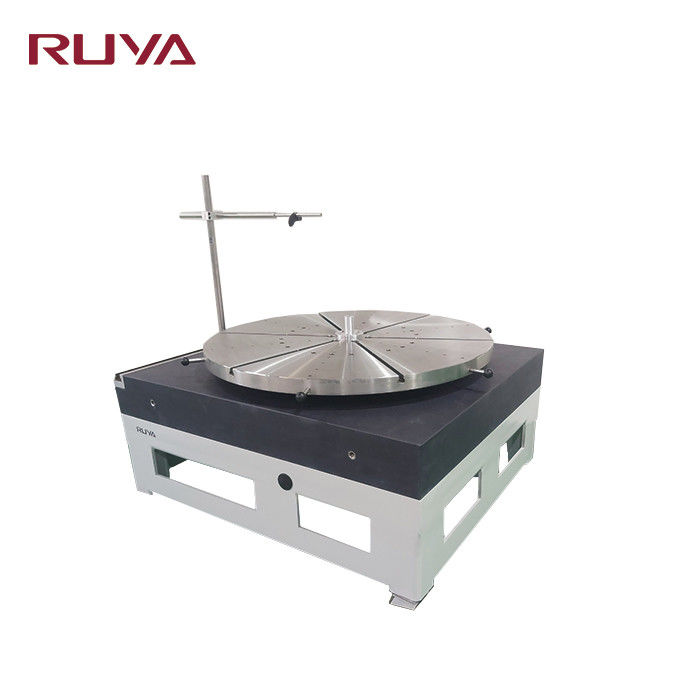

9	Equipped with a triple rod dial indicator bracket	support dial indicators for testing

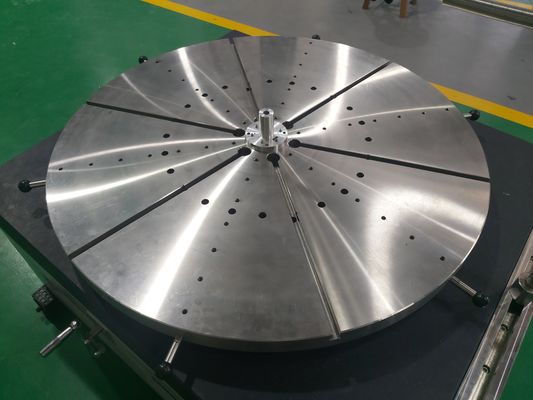

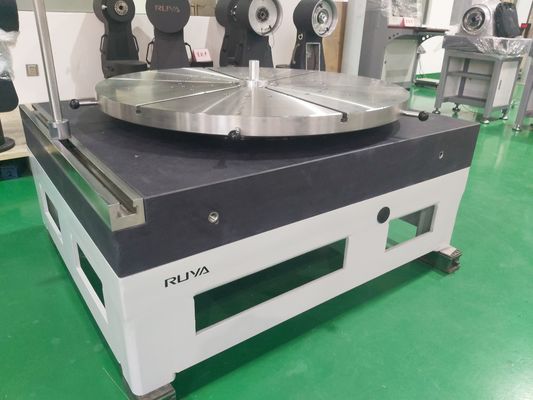

ST1000-D High Precision Rotary Platform With 400mm Payload 100kg 0

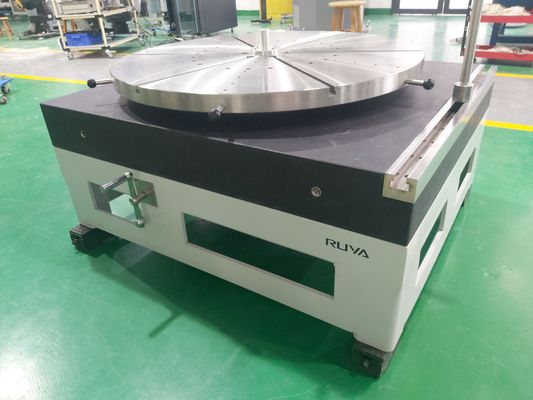

ST1000-D High Precision Rotary Platform With 400mm Payload 100kg 1
