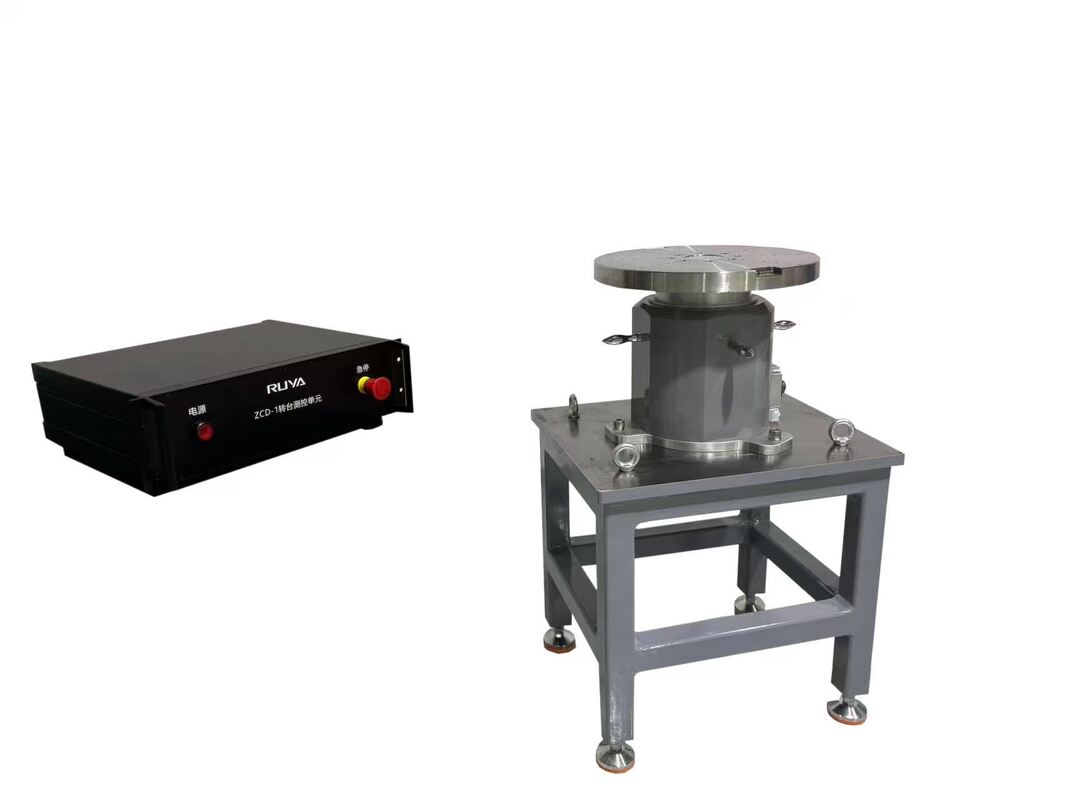

Single-axis Electric Turntable With Support Frame 1 Axis Rate Table

Brand Name:	RUYA
MOQ:	1 set
Price:	negotiable
Delivery Time:	2-3 months
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Load Weight:

25Kg

Table Diameter:

Ф450mm

Positioning Error:

±2″

Positioning Repeatability:

±2″

Table Flatness:

0.02mm

Table Runout:

0.02mm

Maximum Angular Acceleration:

≥300°/s²

User Slip Ring:

Customizable

Packaging Details:

wooden box

Supply Ability:

≤3 sets， 3 months

Product Description

Single-axis Electric Turntable With Support Frame 1 Axis Rate Table

Product Description

The single-axis electric turntable is a high-precision specialized device engineered to cater to the full-cycle demands of fiber optic gyroscopes and IMUs, spanning research trials, production debugging, performance verification, and precision calibration. Boasting core operational modes including rate control, position positioning, and swing simulation, it delivers consistent performance, dependable operation, and user-friendly manipulation. Its compact, portable design coupled with cost-effectiveness further enhances its practicality, while the integrated stable support frame streamlines operational workflows for testers. Beyond its primary applications, this versatile turntable also serves as a reliable testing platform for a broad spectrum of other inertial components and units. The turntable is equipped with a stable support frame to facilitate testing by operators.

Product Parameters

Specification
1	Load Weight	25Kg
2	Table Diameter	Ф450mm
3	Table Flatness	0.02mm
4	Table Runout	0.02mm
5	Rotary Accuracy Of Axis	±2″
6	Positioning Error Of Angular Position	±2″
7	Positioning Repeatability Of Angular Position	±2″
8	Rate Range	±0.0001°/s~±2000°/s；
9	Rate Accuracy	ω≤1°/s , 2×10^-3 (1° average)
		1°/s≤ω<10°/s , 2×10^-4 (10° average)
		ω≥10°/s , 2×10^-5 (360° average)
10	Maximum Angular Acceleration	≥300°/s²
11	User Slip Ring	Customizable

Single-axis Electric Turntable With Support Frame 1 Axis Rate Table 0

Single-axis Electric Turntable With Support Frame 1 Axis Rate Table 1

Single-axis Electric Turntable With Support Frame 1 Axis Rate Table 2

Single-axis Electric Turntable With Support Frame 1 Axis Rate Table 3
