1 Axis Electric Rate Position Table with 30Kg Load Weight for Inertial Navigation Testing

Brand Name:	RUYA
MOQ:	1 set
Price:	negotiable
Delivery Time:	2-3 months
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Load Weight:

30Kg

Table Diameter:

Ф300mm

Table Flatness:

0.02mm

Table Runout:

0.02mm

Rotary Accuracy:

±2″

Positioning Error:

±2″

Positioning Repeatability:

±2″

Rate Range:

±0.0001°/s~±500°/s

Packaging Details:

wooden box

Supply Ability:

≤3 sets， 3 months

Highlight:

1 axis turntable with electric rate

single-axis inertial navigation test turntable

electric position table for navigation testing

Product Description

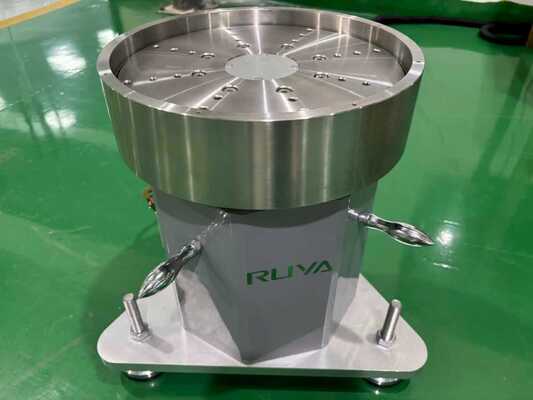

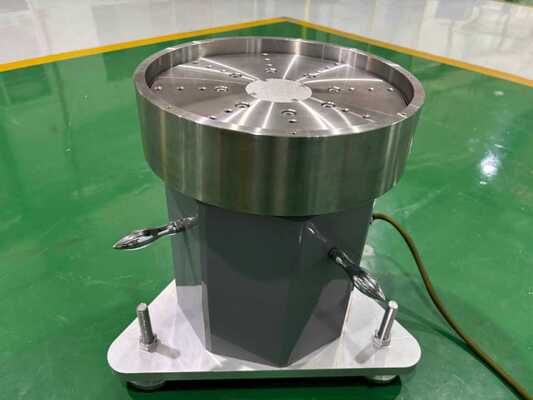

1 Axis Electric Rate Position Table Single-axis Inertial Navigation Test Turntable

Product Overview

The single-axis electric turntable is a special precision equipment with functions such as rate, position and swing, developed for the research testing, production debugging, testing and calibration of fiber optic gyroscopes and IMUs. It has stable performance, reliable operation, simple operation, easy portability, low cost and other characteristics. The equipment can also be used for experimental testing of other inertial components and units.

Technical Specifications

Specification	Value
Load Weight	30Kg
Table Diameter	Ф300mm
Table Flatness	0.02mm
Table Runout	0.02mm
Rotary Accuracy Of Axis	±2″
Positioning Error Of Angular Position	±2″
Positioning Repeatability Of Angular Position	±2″
Rate Range	±0.0001°/s~±500°/s
Rate Accuracy	ω≤1°/s: 210⁻³ (1° average) 1°/s≤ω<10°/s: 210⁻⁴ (10° average) ω≥10°/s: 2*10⁻⁵ (360° average)
Maximum Angular Acceleration	≥100°/s²

Product Gallery
