1 Axis Electric Rate Position Table Single-axis Inertial Navigation Test Turntable

Brand Name:	RUYA
MOQ:	1 set
Price:	negotiable
Delivery Time:	2-3 months
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Load Weight:

30Kg

Table Diameter:

Ф300mm

Table Flatness:

0.02mm

Table Runout:

0.02mm

Rotary Accuracy:

±2″

Positioning Error:

±2″

Positioning Repeatability:

±2″

Rate Range:

±0.0001°/s~±500°/s

Packaging Details:

wooden box

Supply Ability:

≤3 sets， 3 months

Product Description

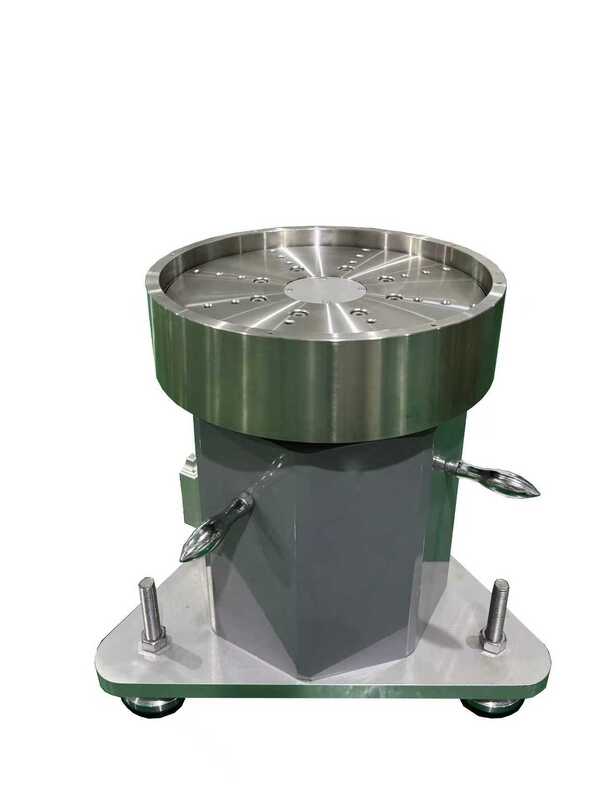

1 Axis Electric Rate Position Table Single-axis Inertial Navigation Test Turntable

Product Description

The single-axis electric turntable is a special precision equipment with functions such as rate, position and swing, developed for the research testing, production debugging, testing and calibration of fiber optic gyroscopes and IMUs. It has stable performance, reliable operation, simple operation, easy portability, low cost and other characteristics. The equipment can also be used for experimental testing of other inertial components and units.

Product Parameters

Specification
1	Load Weight	30Kg
2	Table Diameter	Ф300mm
3	Table Flatness	0.02mm
4	Table Runout	0.02mm
5	Rotary Accuracy Of Axis	±2″
6	Positioning Error Of Angular Position	±2″
7	Positioning Repeatability Of Angular Position	±2″
8	Rate Range	±0.0001°/s~±500°/s；
9	Rate Accuracy	ω≤1°/s , 2×10^-3 (1° average)
		1°/s≤ω<10°/s , 2×10^-4 (10° average)
		ω≥10°/s , 2×10^-5 (360° average)
10	Maximum Angular Acceleration	≥100°/s²

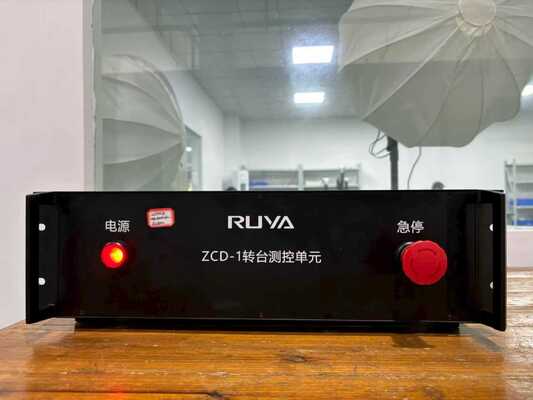

1 Axis Electric Rate Position Table Single-axis Inertial Navigation Test Turntable 0

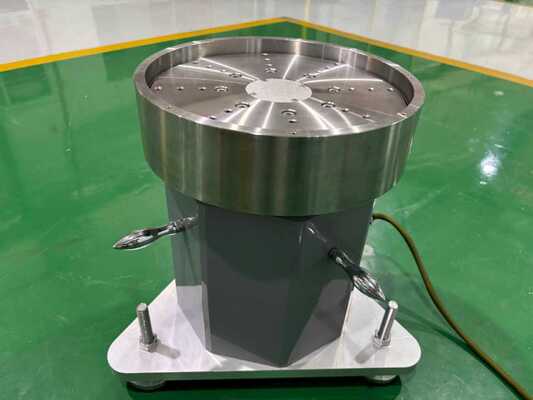

1 Axis Electric Rate Position Table Single-axis Inertial Navigation Test Turntable 1

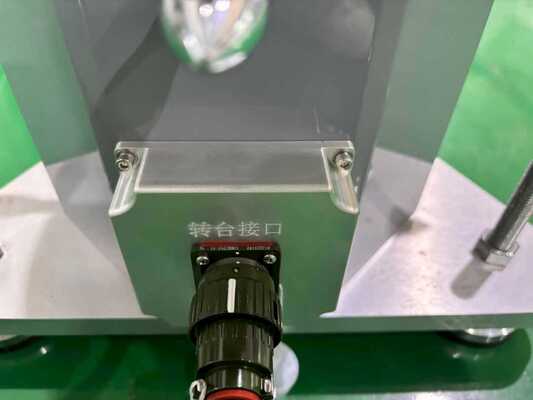

1 Axis Electric Rate Position Table Single-axis Inertial Navigation Test Turntable 2

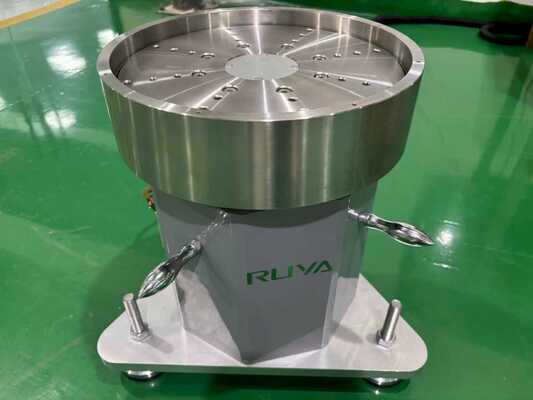

1 Axis Electric Rate Position Table Single-axis Inertial Navigation Test Turntable 3

Our customers

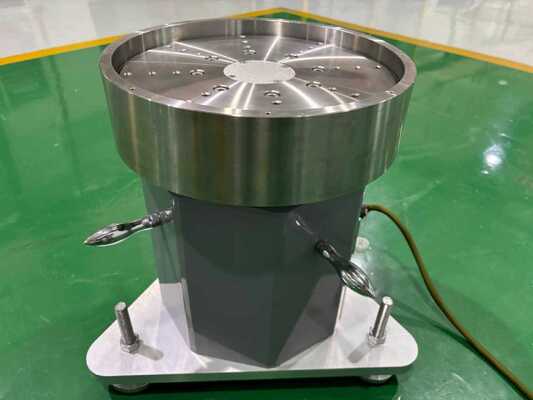

1 Axis Electric Rate Position Table Single-axis Inertial Navigation Test Turntable 4
