Tracking Turntable
Created with Pixso. 2-STGZ/2 Frame-type U-T Structure Dual Axis Tracking Turntable with High Precision 30kg Load Capacity for UAV Tracking
name
  • name
  • name
  • name
  • name
  • name

2-STGZ/2 Frame-type U-T Structure Dual Axis Tracking Turntable with High Precision 30kg Load Capacity for UAV Tracking

Brand Name: RUYA
Model Number: 2-STGZ/2
MOQ: 1 set
Price: negotiable
Delivery Time: 3 months
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO 9001
Azimuth Rotation Range:
-90º~+90°
Pitch Rotation Range:
-5°~+85°
Pointing Accuracy (Static):
10″ (3σ)
Repeatability:
2″
Vertical Axis Angular Wobble:
≤2″
Horizontal Axis Angular Wobble:
≤3″
Angular Position Measurement Resolution:
0.0001°
Angular Position Measurement Accuracy:
≤5″
Packaging Details:
wooden box
Supply Ability:
≤3 sets， 3 months
Highlight:

2-STGZ/2 UAV tracking turntable

,

dual axis tracking device

,

frame-type U-T structure turntable

Product Description
2-STGZ/2 Two-dimensional UAV Tracking Turntable Frame-type U-T Structure Dual Axis Tracking Device
Product Overview

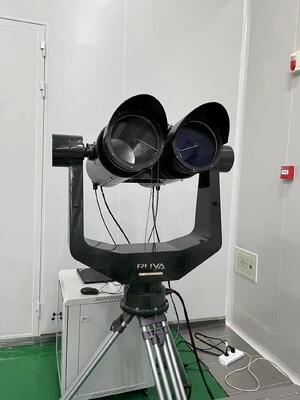

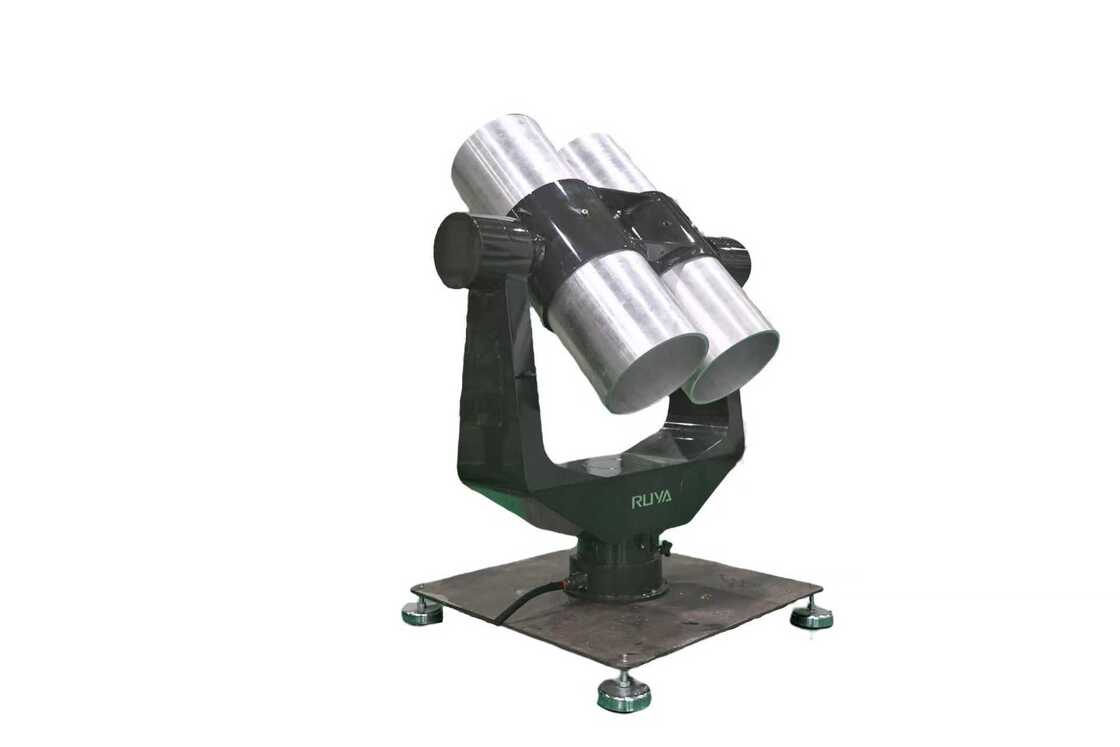

The 2-STGZ/2 two-dimensional tracking turntable features two degrees of motion freedom: azimuth and pitch. This frame-type U-T structure two-dimensional tracking device is primarily designed for tracking unmanned aerial vehicles (UAVs) with precision and reliability.

Technical Specifications
  • Turntable Structure: Azimuth axis features "T" shaped structure; Pitch axis features "U" shaped ring frame structure
  • Azimuth Rotation Range: -90° to +90° (to center point)
  • Pitch Rotation Range: -5° to +85°
  • Zero Point: Equipped with code disk zero point
  • Pointing Accuracy (Static): 10″ (3σ)
  • Repeatability: 2″
  • Vertical Axis Angular Wobble: ≤2″
  • Horizontal Axis Angular Wobble: ≤3″
  • Angular Position Measurement Resolution: 0.0001°
  • Angular Position Measurement Accuracy: ≤5″
  • Load Size: Two Φ250
  • Load Weight: 30kg, double lens barrel
  • Turntable Weight: 45kg
  • Limits: Dual protection with mechanical and electronic limits
  • Tracking Error: <3″
  • Maximum Azimuth Speed: ≥20°/s
  • Maximum Azimuth Tracking Speed: ≥2°/s
  • Maximum Pitch Speed: ≥20°/s
  • Maximum Pitch Tracking Speed: ≥2°/s
  • Maximum Azimuth Tracking Acceleration: ≥2°/s
  • Maximum Pitch Tracking Acceleration: ≥2°/s
Product Images
2-STGZ/2 Frame-type U-T Structure Dual Axis Tracking Turntable with High Precision 30kg Load Capacity for UAV Tracking 0 2-STGZ/2 Frame-type U-T Structure Dual Axis Tracking Turntable with High Precision 30kg Load Capacity for UAV Tracking 1 2-STGZ/2 Frame-type U-T Structure Dual Axis Tracking Turntable with High Precision 30kg Load Capacity for UAV Tracking 2 2-STGZ/2 Frame-type U-T Structure Dual Axis Tracking Turntable with High Precision 30kg Load Capacity for UAV Tracking 3
Our Customers
2-STGZ/2 Frame-type U-T Structure Dual Axis Tracking Turntable with High Precision 30kg Load Capacity for UAV Tracking 4
