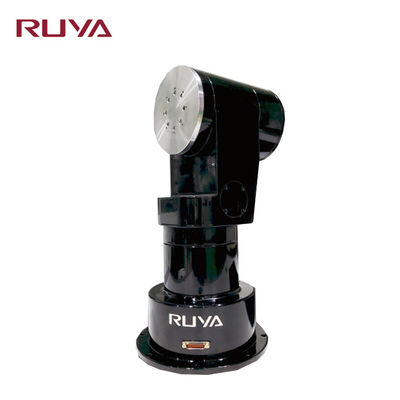

2-STGZ100 Light Load Tracking Turntable with 10Kg Load Weight for Precision Applications

Name: 2-STGZ100 Light Load Tracking Turntable with 10Kg Load Weight for Precision Applications
Brand: Jiujiang RUYA Precision Technology Co., Ltd
SKU: 2-STGZ100
Availability: InStock

Brand Name:	RUYA
Model Number:	2-STGZ100
MOQ:	1 set
Price:	negotiable
Delivery Time:	3-4 months
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Load Weight:

10Kg

Rotary Accuracy:

±3″

Positioning Error:

±3″

Positioning Repeatability:

±2″

Resolution Of Angular Position:

0.0001°

Code Disc Resolution:

1″

For Stellar Targets, Open-Loop Tracking Accuracy (RMS):

Error Within 10 Seconds <0.5″, Error Within 60 Minutes <1″;

For Space Targets, Open-Loop Tracking Accuracy (RMS):

Single Axis<5″

Packaging Details:

wooden box

Supply Ability:

≤3 sets， 3 months

Highlight:

2-STGZ100 Tracking Turntable

10Kg Tracking Turntable

tracking turntable 10Kg

Product Description

2-STGZ100 Light Load Tracking Turntable 10Kg Load Weight

Product Overview

The 2-STGZ100 Light Load Tracking Turntable features a single-arm pitch axis and rotary horizontal axis design. It carries optical lenses up to 100mm in diameter with a maximum load weight of 10kg. The turntable rotation is directly motor-driven, with mechanical interfaces coordinated with motor research units.

This tracking turntable is suitable for drone suspension applications and precision tracking operations.

Technical Specifications

Specification	Details
Load Weight	10Kg
Angle Rotary Range	Azimuth: ±170° Pitch: ±80°
Rotary Accuracy Of Dual-Axis	±3″
Positioning Error Of Angular Position	±3″
Positioning Repeatability Of Angular Position	±2″
Resolution Of Angular Position	0.0001°
Rate Accuracy	ω≤1°/s: 2×10⁻³ (1° average) 1°/s≤ω<10°/s: 2×10⁻⁴ (10° average) ω≥10°/s: 2×10⁻⁵ (360° average)
Maintain Precision Tracking Speed	10°/s≥azimuth≥1″/s 5°/s≥pitch≥1″/s
Maximum Angular Acceleration	Pitch: ≥2°/s² Azimuth: ≥6°/s²
Code Disc Resolution	1″
Zero Point	With code disc zero point
For Stellar Targets, Open-Loop Tracking Accuracy (RMS)	Error within 10 seconds <0.5″, error within 60 minutes <1″
For Space Targets, Open-Loop Tracking Accuracy (RMS)	Single axis <5″
