2-STGZ/1 Direct Drive Dual Axis Tracking Turntable with 30Kg Load High Precision and L-Shaped Structure

Name: 2-STGZ/1 Direct Drive Dual Axis Tracking Turntable with 30Kg Load High Precision and L-Shaped Structure
Brand: Jiujiang RUYA Precision Technology Co., Ltd
SKU: 2-STGZ/1
Availability: InStock

Brand Name:	RUYA
Model Number:	2-STGZ/1
MOQ:	1 set
Price:	negotiable
Delivery Time:	3-4 months
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Load Weight:

30Kg

Angle Rotary Range（Outer Frame）:

±358°

Angle Rotary Range（Inner Frame）:

-5°~+95°

Rotary Accuracy:

±3″

Positioning Error:

±3″

Positioning Repeatability:

±2″

For Stellar Targets, Open-Loop Tracking Accuracy (RMS):

Error Within 10 Seconds <0.5″, Error Within 60 Minutes <1″;

For Space Targets, Open-Loop Tracking Accuracy (RMS):

Single Axis<5″

Packaging Details:

wooden box

Supply Ability:

≤3 sets， 3 months

Highlight:

Direct Drive Tracking Turntable

Dual Axis Tracking Turntable

30Kg 2 axis turntable

Product Description

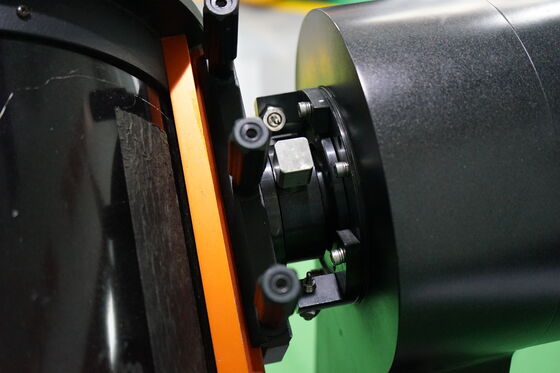

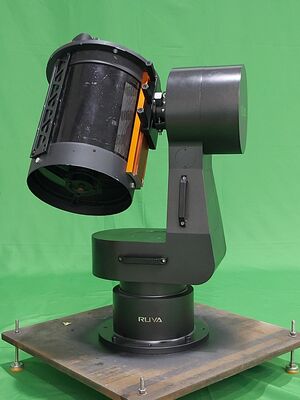

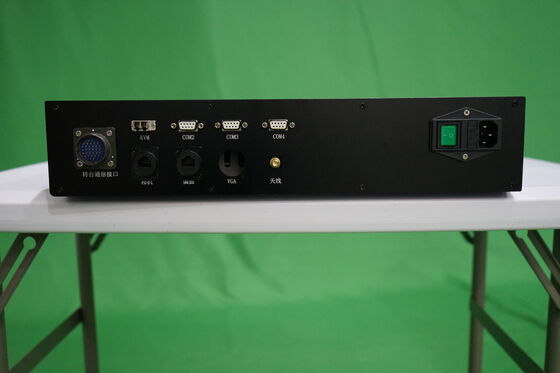

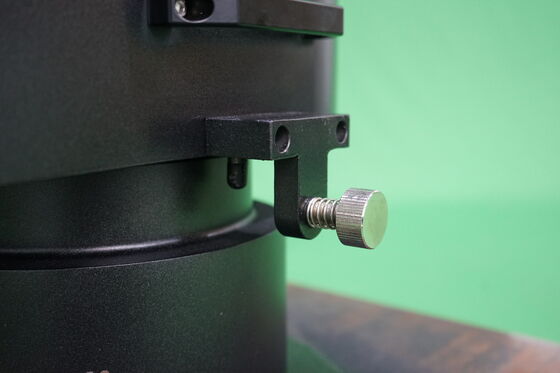

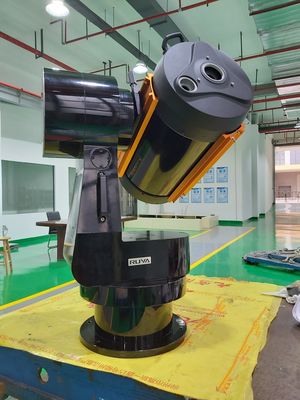

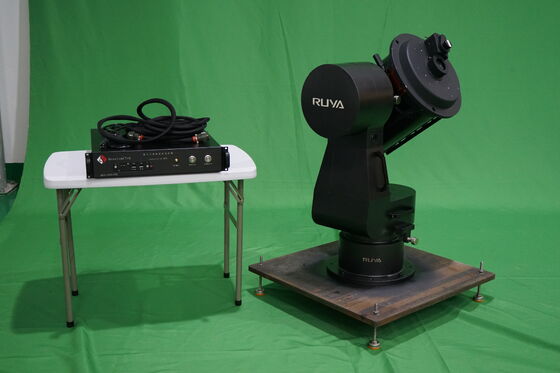

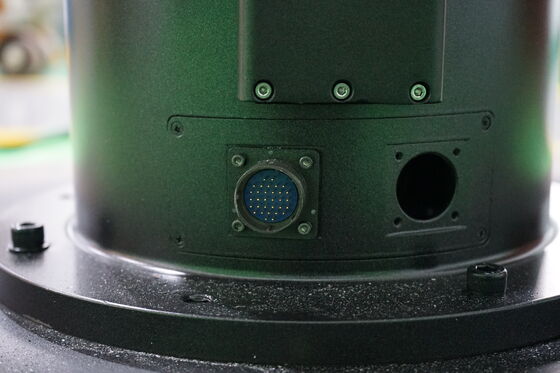

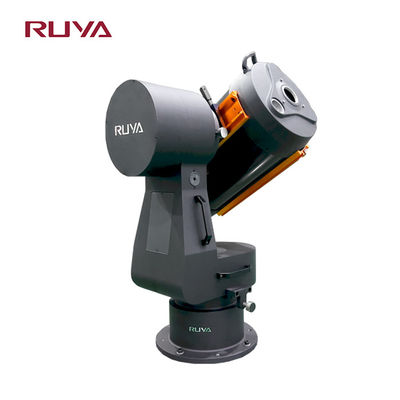

2-STGZ/1 Direct Drive Dual Axis Tracking Turntable 30Kg Load

Product Overview

The 2-STGZ/1 direct-drive dual-axis tracking turntable features two degrees of freedom in azimuth and pitch axes. This TL-type two-dimensional tracking equipment simulates satellite pointing and attitude on the ground while eliminating the influence of Earth's rotation. It serves as a quantum communication ground receiving station and, when combined with quantum satellite transmitters, enables complete satellite-to-ground quantum communication.

Key Features

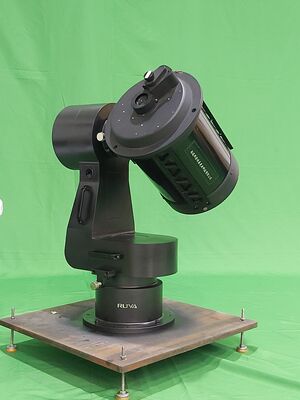

L-shaped structure provides exceptional flexibility for load installation
High-precision encoders ensure reliable tracking accuracy
DC motors and drives minimize transmission links, eliminating transmission errors
Main structure constructed from aviation cast aluminum alloy for lightweight stability

Technical Specifications

Specification	Details
Load Weight	30Kg
Angle Rotary Range	Outer frame: ±358° Inner frame: -5° to +95°
Rotary Accuracy Of Dual-Axis	±3″
Positioning Error Of Angular Position	±3″
Positioning Repeatability Of Angular Position	±2″
Rate Accuracy	ω≤1°/s: 2×10⁻³ (1° average) 1°/s≤ω<10°/s: 2×10⁻⁴ (10° average) ω≥10°/s: 2×10⁻⁵ (360° average)
Maintain Precision Tracking Speed	Azimuth: ≥2°/s, maximum ≥10°/s Pitch: ≥1°/s, maximum ≥4°/s
Maximum Angular Acceleration	Inner frame: ≥1°/s² Outer frame: ≥1°/s²
Code Disc Resolution	1″
Zero Point	With code disc zero point
For Stellar Targets, Open-Loop Tracking Accuracy (RMS)	Error within 10 seconds <0.5″, error within 60 minutes <1″
For Space Targets, Open-Loop Tracking Accuracy (RMS)	Single axis <5″
