2DTGZ280C Dual Axis Satellite Tracking Turntable with High-Resolution Encoder

Name: 2DTGZ280C Dual Axis Satellite Tracking Turntable with High-Resolution Encoder
Brand: Jiujiang RUYA Precision Technology Co., Ltd
SKU: 2DTGZ280C
Availability: InStock

Brand Name:	RUYA
Model Number:	2DTGZ280C
MOQ:	1 set
Price:	negotiable
Delivery Time:	3-4 months
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Angle Rotary Range（Outer Frame）:

±355°

Angle Rotary Range（Inner Frame）:

-20°~+95°

Maximum Angular Acceleration( Inner Frame):

≥1°/s²

Maximum Angular Acceleration( Outer Frame):

≥1°/s²

Positioning Error:

±3″

Code Disc Resolution:

1″

For Stellar Targets, Open-Loop Tracking Accuracy (RMS):

Error Within 10 Seconds <0.5″, Error Within 60 Minutes <1″;

For Space Targets, Open-Loop Tracking Accuracy (RMS):

Single Axis<3″

Packaging Details:

wooden box

Supply Ability:

≤3 sets， 3 months

Highlight:

Tracking Turntable 2 axis

Satellite Tracking Turntable

80kg 2 axis turntable

Product Description

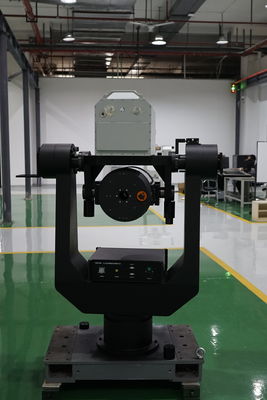

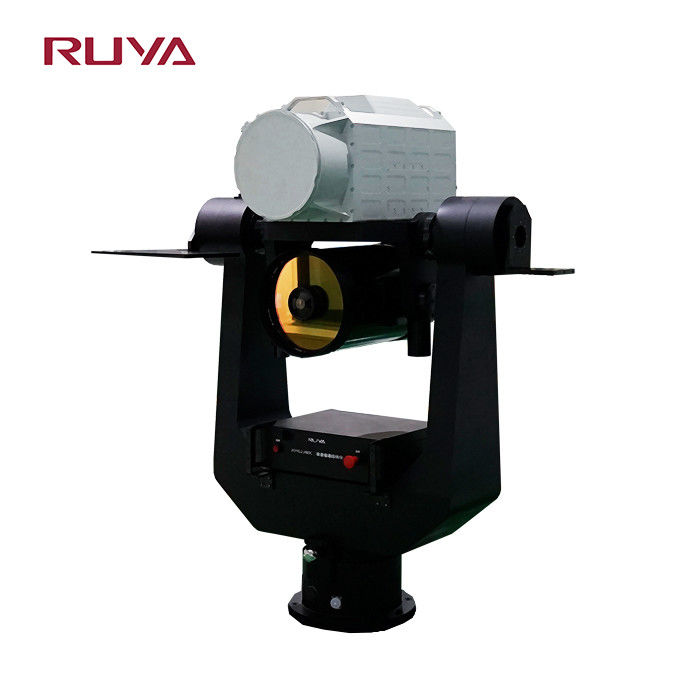

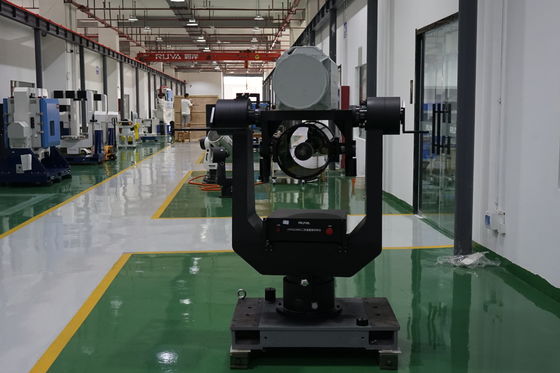

2DTGZ280C Dual Axis Satellite Tracking Turntable With 80kg Payload

Product Overview

The 2DTGZ280C dual-axis tracking turntable features a high-rigidity tabletop design and is equipped with azimuth axis (X) and pitch axis (Y) dual-degree-of-freedom motion systems. This configuration meets the dynamic testing requirements for precision components, optical components, and inertial navigation equipment. The device supports position control, rate swing, and dynamic tracking modes. By combining high-resolution encoders with low-friction drive technology, it ensures no return error during testing processes, providing a reliable dynamic test platform for scientific research institutes.

Technical Specifications

Specification	Value
Load Weight	80Kg
Angle Rotary Range	Outer frame: ±355° Inner frame: -20° to +95°
Rotary Accuracy Of Dual-Axis	±3″
Perpendicularity Of Dual-Axis	±3″
Positioning Error Of Angular Position	±3″
Positioning Repeatability Of Angular Position	±2″
Rate Accuracy	ω≤1°/s: 2×10⁻³ (1° average) 1°/s≤ω<10°/s: 2×10⁻⁴ (10° average) ω≥10°/s: 2×10⁻⁵ (360° average)
Maintain Precision Tracking Speed	Orientation: ≥2°/s, maximum ≥10°/s Pitch: ≥1°/s, maximum ≥4°/s
Maximum Angular Acceleration	Inner frame: ≥1°/s² Outer frame: ≥1°/s²
Code Disc Resolution	1″
Zero Point	With code disc zero point
For Stellar Targets, Open-Loop Tracking Accuracy (RMS)	Error within 10 seconds <0.5″, error within 60 minutes <1″
For Space Targets, Open-Loop Tracking Accuracy (RMS)	Single axis <3″
