Satellite Tracking Turntable With Payload 150kg Satellite Antennas And Optical Systems Tracking Device

Satellite Tracking Turntable With Payload 150kg Satellite Antennas And Optical Systems Tracking Device

Brand Name:	RUYA
MOQ:	1 set
Price:	negotiable
Delivery Time:	3 months
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Load Weight:

150Kg

Rotary Accuracy:

±3″

Positioning Error:

±3″

Positioning Repeatability:

±2″

Angle Rotary Range(azimuth）:

±280°

Angle Rotary Range（pitch）:

-5°~+95°

Resolution Of Angular Position:

0.0001°

Code Disc Resolution:

1″

Packaging Details:

wooden box

Supply Ability:

≤3 sets， 3 months

Highlight:

satellite tracking turntable with payload

150kg satellite antennas tracking device

optical systems tracking turntable

Product Description

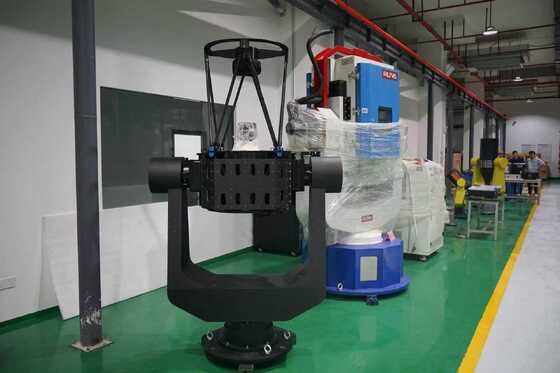

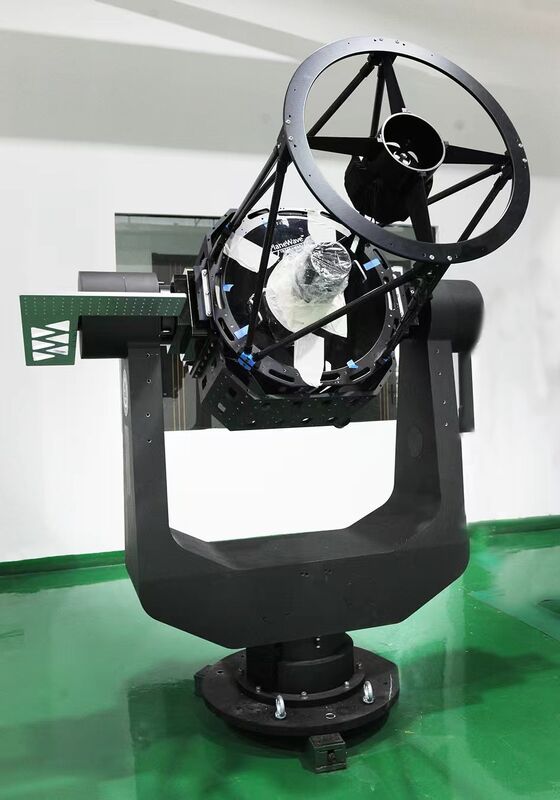

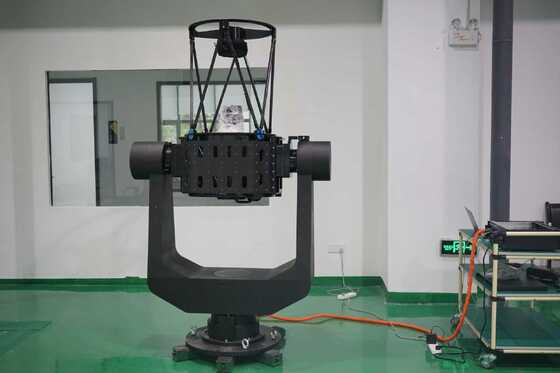

Satellite Tracking Turntable With Payload 150kg Satellite Antennas And Optical Systems Tracking Device

The satellite tracking turntable features two degrees of freedom in azimuth and pitch axes, effectively eliminating the effects of Earth's self-rotation. Designed to work with payloads including satellite antennas and optical systems, it enables precise capture, pointing, and tracking of stars, satellites, and other space targets.

Technical Specifications

Specification	Details
Load Weight	150Kg
Angle Rotary Range	Azimuth: ±280° Pitch: -5° to +95°
Rotary Accuracy Of Dual-Axis	±3″
Positioning Error Of Angular Position	±3″
Positioning Repeatability Of Angular Position	±2″
Resolution Of Angular Position	0.0001°
Rate Accuracy	ω≤1°/s: 210⁻³ (1° average) 1°/s≤ω<10°/s: 210⁻⁴ (10° average) ω≥10°/s: 2*10⁻⁵ (360° average)
Maintain Precision Tracking Speed	10°/s ≥ azimuth ≥ 1″/s 5°/s ≥ pitch ≥ 1″/s
Maximum Angular Acceleration	Pitch: ≥2°/s² Azimuth: ≥6°/s²
Code Disc Resolution	1″
Zero Point	With code disc zero point
For Stellar Targets, Open-Loop Tracking Accuracy (RMS)	Error within 10 seconds <0.5″, error within 60 minutes <1″
For Space Targets, Open-Loop Tracking Accuracy (RMS)	Single axis <5″

Product Gallery
