Dual-axis Manual Turntable Static Attitude Simulation Inertial Calibration Device

Brand Name:	RUYA
MOQ:	1 set
Price:	negotiable
Delivery Time:	3 months
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Load Weight:

50Kg

Table Size:

550mm×550mm

Rotary Accuracy:

±2″

Perpendicularity:

±3″

Positioning Repeatability:

±1.5″

Angle Rotary Range（Azimuth）:

360° Continuous Rotation

Angle Rotary Range（pitch）:

±45°

Display Resolution:

0.0001°

Packaging Details:

wooden box

Supply Ability:

≤3 sets， 3 months

Product Description

Dual-axis Manual Turntable Static Attitude Simulation Inertial Calibration Device

Product Description

The dual-axis manual turntable is mainly used for static attitude simulation, testing and calibration of inertial devices and components.

Product Parameters

Specification
1	Load Weight	50Kg
2	Table Size	550mm×550mm
3	Table Flatness	0.02mm
5	Rotary Accuracy Of Dual-Axis	±2″
6	Perpendicularity Of Dual-Axis	±3″
7	Intersection Of Dual-Axis	Ф0.5mm diameter ball
8	Positioning Error Of Angular Position	outer frame:±2″；
8	Positioning Error Of Angular Position	inner frame:±2″；
9	Positioning Repeatability Of Angular Position	±1.5″
10	Angle Rotary Range	Azimuth:360° continuous rotation
10	Angle Rotary Range	Pitch:±45°
11	Display Mode	Degree:0.0000-359.9999°
		Degrees, minutes and seconds:0°0′0″-359°59′59″
		Radian:0.0000-6.2832
12	Display Resolution	0.0001°
13	Lift Range	900+250mm

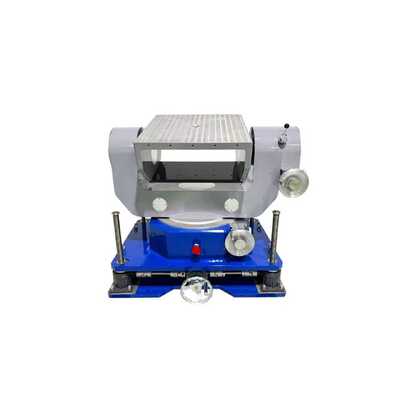

Dual-axis Manual Turntable Static Attitude Simulation Inertial Calibration Device 0

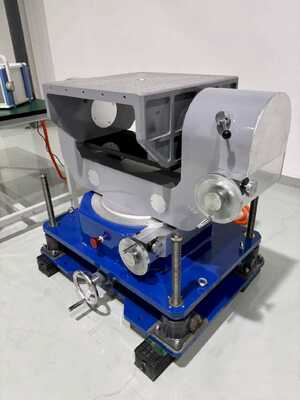

Dual-axis Manual Turntable Static Attitude Simulation Inertial Calibration Device 1

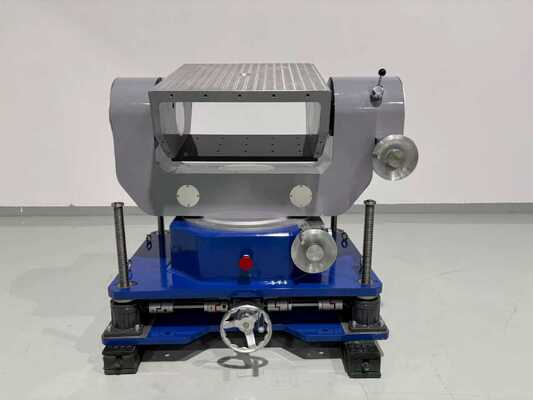

Dual-axis Manual Turntable Static Attitude Simulation Inertial Calibration Device 2

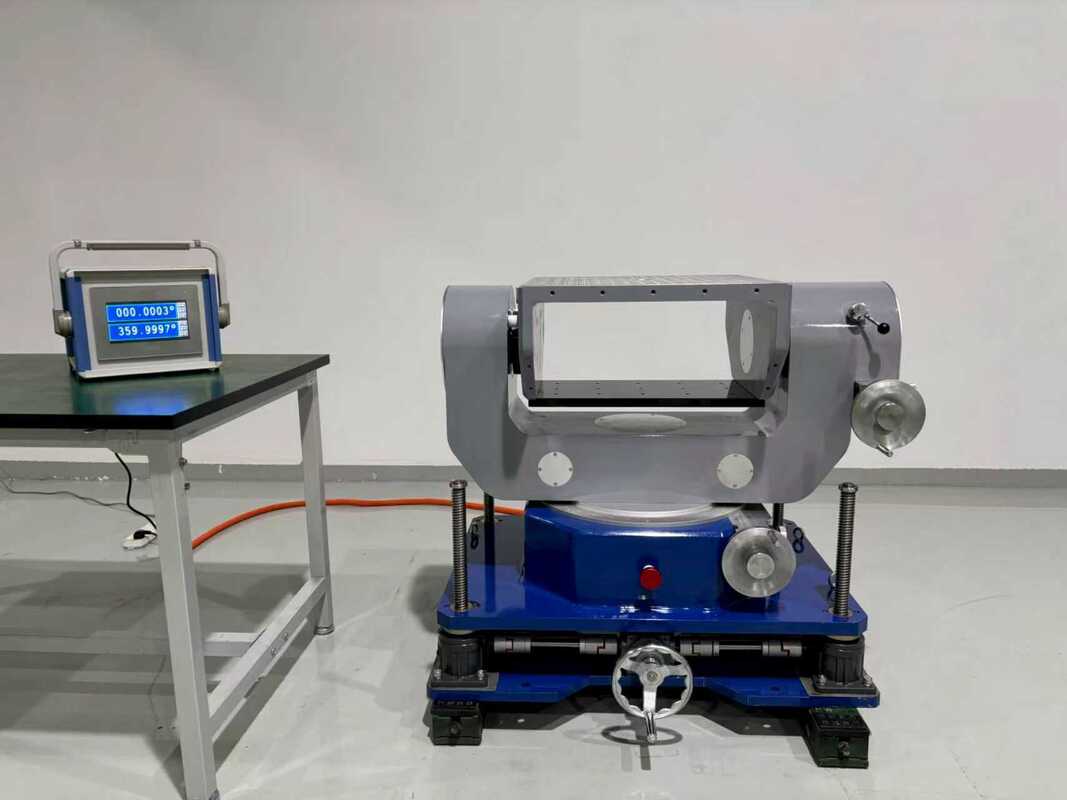

Dual-axis Manual Turntable Static Attitude Simulation Inertial Calibration Device 3
