2DT450-A04 Dual-axis Electric Turntable with 20Kg Load Weight 450mm Table Diameter and for Inertial Navigation Testing

Brand Name:	RUYA
MOQ:	1 set
Price:	negotiable
Delivery Time:	3 months
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Load Weight:

20Kg

Table Diameter:

Ф450mm

Positioning Error Of Angular Position(outer Frame):

±2″

Positioning Error Of Angular Position(inner Frame):

±2″

Rate Range(inner Frame):

0.01°/s~1000°/s

Rate Range(outer Frame):

0.01°/s~500°/s

User Slip Ring:

Customizable

Weight:

≤200Kg

Packaging Details:

wooden box

Supply Ability:

≤3 sets， 3 months

Highlight:

dual-axis electric turntable for navigation testing

2-axis rate position table with warranty

inertial navigation test turntable electric

Product Description

2DT450-A04 Dual-axis Electric Turntable Inertial Navigation Test Rate Position Table

Product Overview

The dual-axis electric turntable features two degrees of motion freedom in azimuth axis (X) and pitch axis (Y). This tabletop two-dimensional precision testing equipment is primarily used for testing and calibration of position, rate, swing, and other functions of inertial devices and components.

Technical Specifications

Specification	Details
Load Weight	20Kg
Table Diameter	Ф450mm
Table Flatness	0.02mm
Table Runout	0.02mm
Rotary Accuracy Of Dual-Axis	±2″
Perpendicularity Of Dual-Axis	±2″
Intersection Of Dual-Axis	Ф0.5mm diameter ball
Positioning Error Of Angular Position	Outer frame: ±2″ Inner frame: ±2″
Positioning Repeatability Of Angular Position	±2″
Rate Range	Inner frame: 0.01°/s ~ 1000°/s Outer frame: 0.01°/s ~ 500°/s
Rate Accuracy	ω ≤ 1°/s: 210⁻³ (1° average) 1°/s ≤ ω < 10°/s: 210⁻⁴ (10° average) ω ≥ 10°/s: 2*10⁻⁵ (360° average)
Maximum Angular Acceleration	Inner frame: ≥500°/s² Outer frame: ≥200°/s²
User Slip Ring	Customizable
Weight	≤200Kg

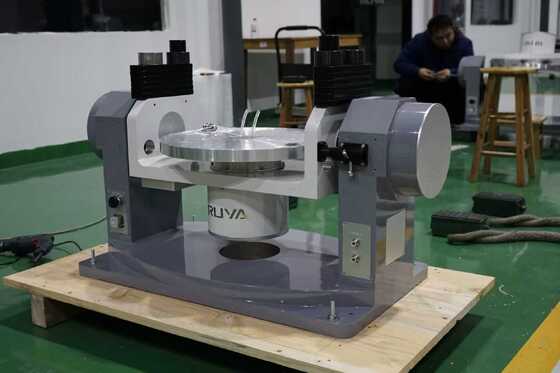

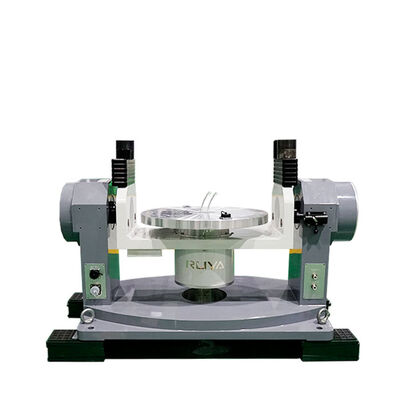

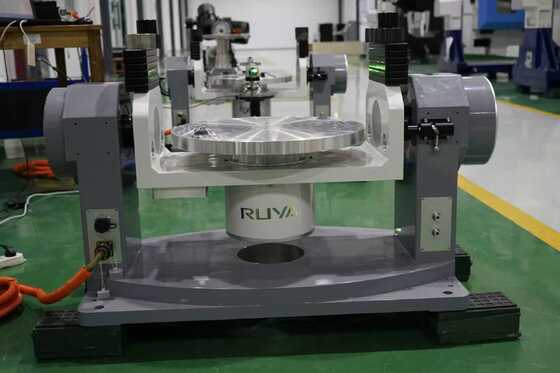

Product Gallery
