2DT450-A04 Dual-axis Electric Turntable Inertial Navigation Test Rate Position Table

Brand Name:	RUYA
MOQ:	1 set
Price:	negotiable
Delivery Time:	3 months
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Load Weight:

20Kg

Table Diameter:

Ф450mm

Positioning Error Of Angular Position(outer Frame):

±2″

Positioning Error Of Angular Position(inner Frame):

±2″

Rate Range(inner Frame):

0.01°/s~1000°/s

Rate Range(outer Frame):

0.01°/s~500°/s

User Slip Ring:

Customizable

Weight:

≤200Kg

Packaging Details:

wooden box

Supply Ability:

≤3 sets， 3 months

Product Description

2DT450-A04 Dual-axis Electric Turntable Inertial Navigation Test Rate Position Table

Product Description

The dual-axis electric turntable has two degrees of motion freedom in azimuth axis (X) and pitch axis (Y). It is a tabletop two-dimensional precision testing equipment. It is mainly used for testing and calibration of the position, rate, swing and other functions of inertial devices and components.

Product Parameters

Specification
1	Load Weight	20Kg
2	Table Diameter	Ф450mm
3	Table Flatness	0.02mm
4	Table Runout	0.02mm
5	Rotary Accuracy Of Dual-Axis	±2″
6	Perpendicularity Of Dual-Axis	±2″
7	Intersection Of Dual-Axis	Ф0.5mm diameter ball
8	Positioning Error Of Angular Position	outer frame:±2″；
8	Positioning Error Of Angular Position	inner frame:±2″；
9	Positioning Repeatability Of Angular Position	±2″
10	Rate Range	inner frame:0.01°/s~1000°/s；
10	Rate Range	outer frame:0.01°/s~500°/s；
11	Rate Accuracy	ω≤1°/s , 2×10^-3 (1° average)
		1°/s≤ω<10°/s , 2×10^-4 (10° average)
		ω≥10°/s , 2×10^-5 (360° average)
12	Maximum Angular Acceleration	inner frame:≥500°/s²
12	Maximum Angular Acceleration	outer frame:≥200°/s²
13	User Slip Ring	Customizable
14	Weight	≤200Kg

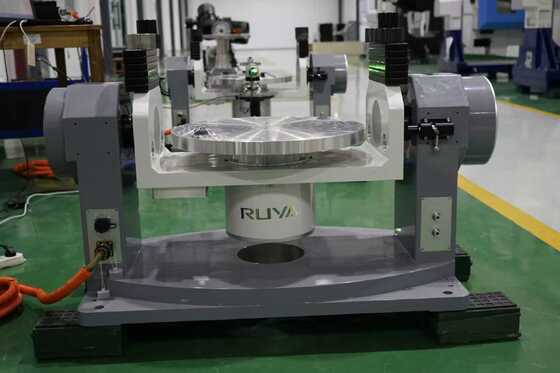

2DT450-A04 Dual-axis Electric Turntable Inertial Navigation Test Rate Position Table 0

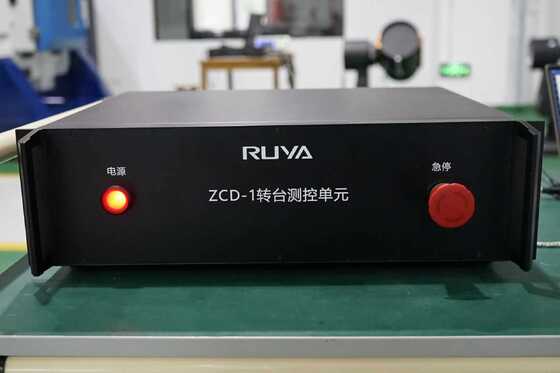

2DT450-A04 Dual-axis Electric Turntable Inertial Navigation Test Rate Position Table 1

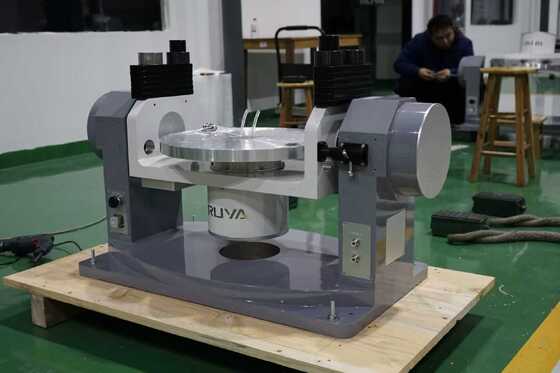

2DT450-A04 Dual-axis Electric Turntable Inertial Navigation Test Rate Position Table 2

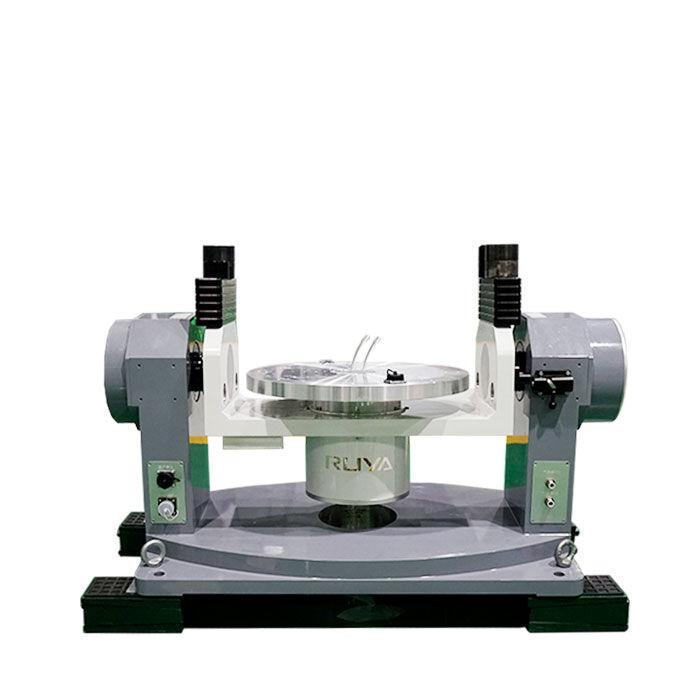

2DT450-A04 Dual-axis Electric Turntable Inertial Navigation Test Rate Position Table 3
