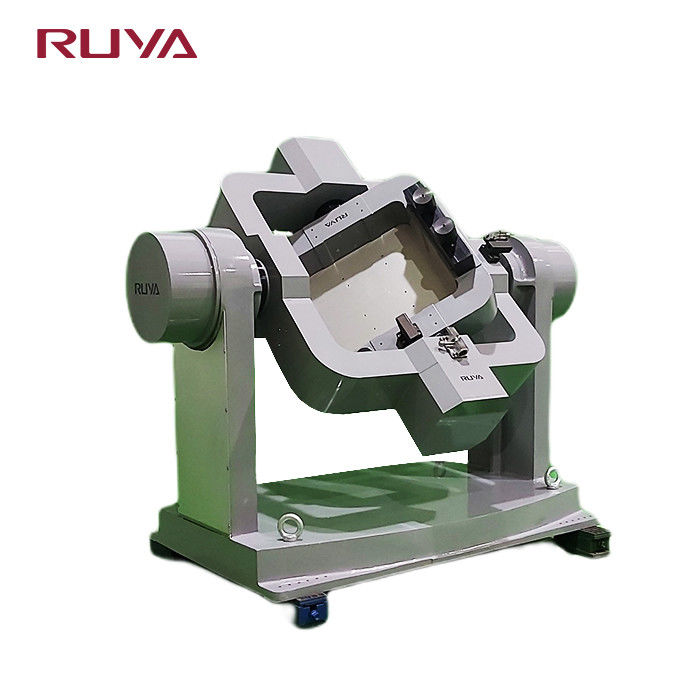

2DT495-C Dual Axis Automatic Frame Simulation Test Turntable

Name: 2DT495-C Dual Axis Automatic Frame Simulation Test Turntable
Brand: Jiujiang RUYA Precision Technology Co., Ltd
SKU: 2DT495-C
Availability: InStock

Brand Name:	RUYA
Model Number:	2DT495-C
MOQ:	1 set
Price:	negotiable
Delivery Time:	3-4 months
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Load Weight:

20Kg

Maximum Size Of Test Piece:

220mm×220mm×280mm

Rotary Accuracy:

±3″

Perpendicularity:

±3″

Positioning Error:

±5″

Positioning Repeatability:

±2″

Maximum Angular Acceleration （inner Frame）:

≥100°/s²

Maximum Angular Acceleration ( Outer Frame):

≥50°/s²

Packaging Details:

wooden box

Supply Ability:

≤3 sets， 3 months

Highlight:

2DT495-C 2 Axis Turntable

20Kg 2 Axis Turntable

dual axis turntable

Product Description

2DT495-C Dual-axis Automatic Frame Simulation Test Turntable

Product Description

2DT495-C dual-axis rotating platform is a dual-axis automatic frame multi-functional simulation test equipment. It has test functions such as position and speed. It can meet the functional testing and experiments of inertial systems and inertial components. It has good dynamic characteristics such as high-precision positioning capability, stable speed, and small waveform distortion.

Product Parameters

Specification
1	Load Weight	20Kg
2	Maximum size of test piece	220mm×220mm×280mm
3	Rotary Accuracy Of Dual-Axis	±3″
4	Perpendicularity Of Dual-Axis	±3″
5	Intersection Of Dual-Axis	Ф0.5mm diameter ball
6	Positioning Error Of Angular Position	±5″
7	Positioning Repeatability Of Angular Position	±2″
8	Rate Range	inner frame:0.01°/s~200°/s；
8	Rate Range	outer frame:0.01°/s~200°/s；
9	Rate Accuracy	ω≤1°/s , 2×10-3 (1° average)
		1°/s≤ω<10°/s , 2×10-4 (10° average)
		ω≥10°/s , 2×10-5 (360° average)
10	Maximum Angular Acceleration	inner frame:≥100°/s²
10	Maximum Angular Acceleration	outer frame:≥50°/s²
11	User Slip Ring	Customizable

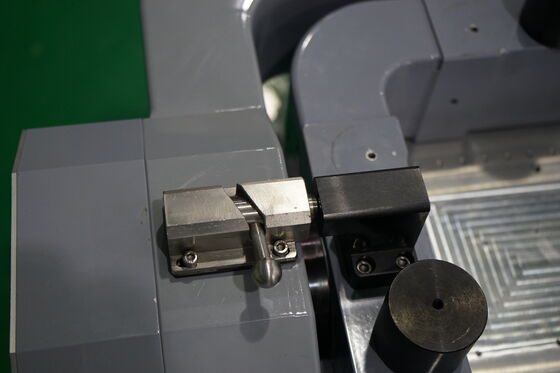

2DT495-C Dual Axis Automatic Frame Simulation Test Turntable 0

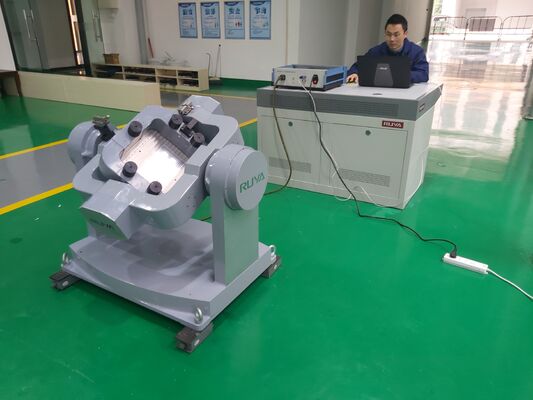

2DT495-C Dual Axis Automatic Frame Simulation Test Turntable 1
