2D Micro Stepping Turntable 160kg Payload Dual Axis Rate Table With Big Tabletop

Brand Name:	RUYA
MOQ:	1 set
Price:	negotiable
Delivery Time:	2-3 months
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Load Weight:

160Kg

Table Diameter:

Ф805mm

Table Flatness:

0.02mm

Table Runout:

0.02mm

Rotary Accuracy:

±2″

Perpendicularity:

±10″

Positioning Error Of Angular Position(outer Frame):

±2″

Positioning Error Of Angular Position(inner Frame):

±2″

Packaging Details:

wooden box

Supply Ability:

≤3 sets， 3 months

Product Description

2D Micro Stepping Turntable 160kg Payload Dual Axis Rate Table With Big Tabletop

Product Description

The 2D micro stepping turntable has two degrees of motion freedom in azimuth (X) and pitch (Y). It is a tabletop two-dimensional precision test equipment, mainly used for testing and calibration of inertial devices and components, such as fiber optic gyroscopes and inertial measurement units (IMUs).

Product Parameters

Specification
1	Load Weight	160Kg
2	Table Diameter	Ф805mm
3	Table Flatness	0.02mm
4	Table Runout	0.02mm
5	Rotary Accuracy Of Dual-Axis	±2″
6	Perpendicularity Of Dual-Axis	±10″
7	Intersection Of Dual-Axis	Ф0.5mm diameter ball
8	Positioning Error Of Angular Position	outer frame:±2″；
8	Positioning Error Of Angular Position	inner frame:±2″；
9	Positioning Repeatability Of Angular Position	±2″
10	Rate Range	inner frame:0.001°/s~20°/s；
10	Rate Range	outer frame:0.001°/s~20°/s；
11	Rate Accuracy	ω≤1°/s , 2×10^-3 (1° average)
		1°/s≤ω<10°/s , 2×10^-4 (10° average)
		ω≥10°/s , 2×10^-5 (360° average)
12	Working Temperature Range	-55°C~＋80°C

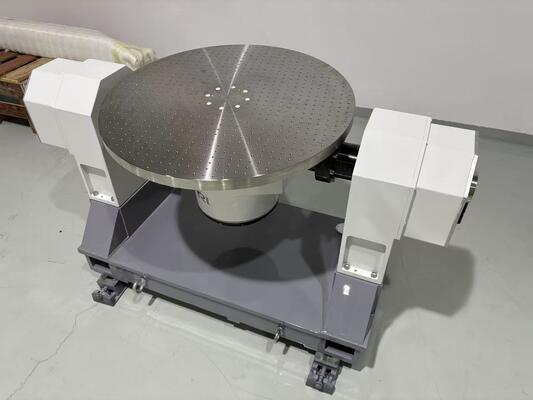

2D Micro Stepping Turntable 160kg Payload Dual Axis Rate Table With Big Tabletop 0

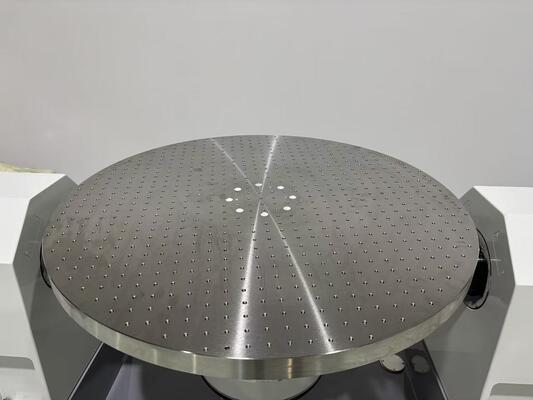

2D Micro Stepping Turntable 160kg Payload Dual Axis Rate Table With Big Tabletop 1

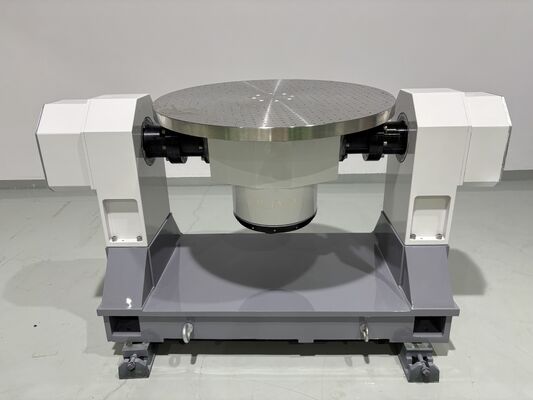

2D Micro Stepping Turntable 160kg Payload Dual Axis Rate Table With Big Tabletop 2

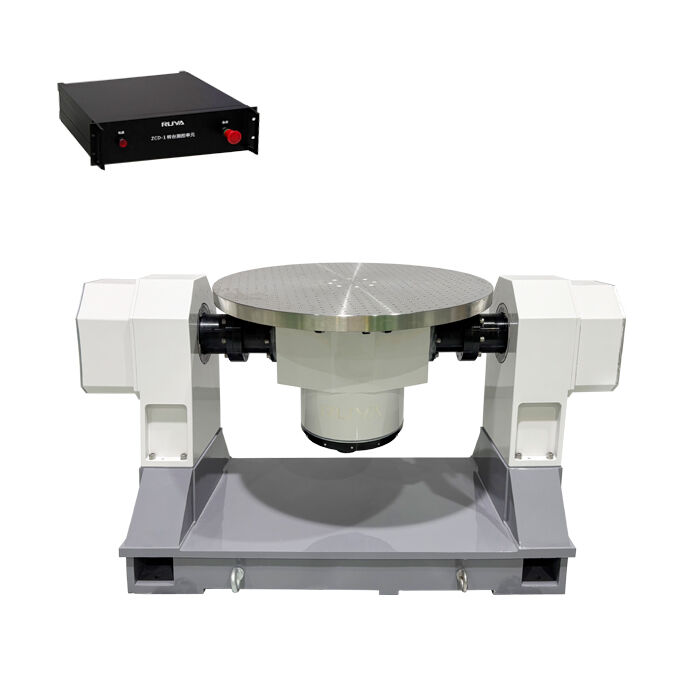

2D Micro Stepping Turntable 160kg Payload Dual Axis Rate Table With Big Tabletop 3

Our customers

2D Micro Stepping Turntable 160kg Payload Dual Axis Rate Table With Big Tabletop 4
