2DT50-FZ UAV Prevention Turntable System Tracking Turntable

name

2DT50-FZ UAV Prevention Turntable System Tracking Turntable

Brand Name:	RUYA
Model Number:	2DT50-FZ
MOQ:	1 set
Price:	negotiable
Delivery Time:	3-4 months
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Load Weight:

150Kg

Rate Range:

0°/s~100°/s

Maximum Angular Acceleration:

50°/s^2

Tracking Positioning Accuracy:

≤±10″

Positioning Repeatability:

≤±5″

Inclination Rotary Accuracy:

≤±3″

Perpendicularity:

≤±2″

Intersection:

Ф0.5mm Diameter Ball

Packaging Details:

wooden box

Supply Ability:

≤3 sets， 3 months

Highlight:

2DT50-FZ UAV Prevention Turntable System

,

2DT50-FZ Tracking Turntable

,

UAV Prevention Turntable System Tracking Turntable

Product Description

2DT50-FZ UAV Prevention Turntable System Tracking Turntable

Product Overview

The UAV Prevention Turntable features two degrees of freedom of movement in the azimuth axis (X) and pitch axis (Y). This U-T type two-dimensional precision testing equipment is primarily used for tracking and positioning within UAV prevention systems, providing accurate location coordinates for the entire system.

Technical Specifications

Specification	Details
Load Weight	150Kg
Rotary Range	Inner frame: ±350° Outer frame: ±90°
Rate Range Of Dual-Axis	0°/s ~ 100°/s
Maximum Angular Acceleration Of Dual-Axis	50°/s²
Tracking Positioning Accuracy Of Dual-Axis	≤ ±10″
Positioning Repeatability Of Dual-Axis	≤ ±5″
Intersection Of Dual-Axis	Ф0.5mm diameter ball
Inclination Rotary Accuracy Of Dual-Axis	≤ ±3″
Perpendicularity Of Dual-Axis	≤ ±2″
Rate Accuracy	ω ≤ 1°/s: 2×10⁻³ (1° average) 1°/s ≤ ω < 10°/s: 2×10⁻⁴ (10° average) ω ≥ 10°/s: 2×10⁻⁵ (360° average)

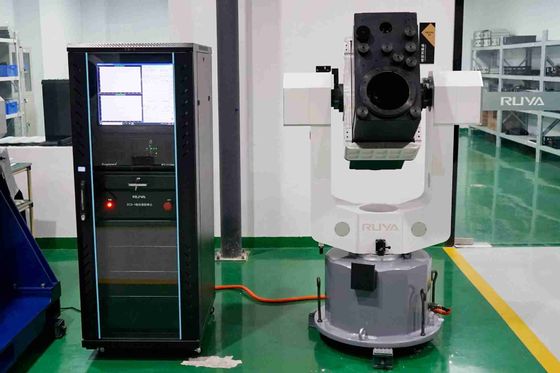

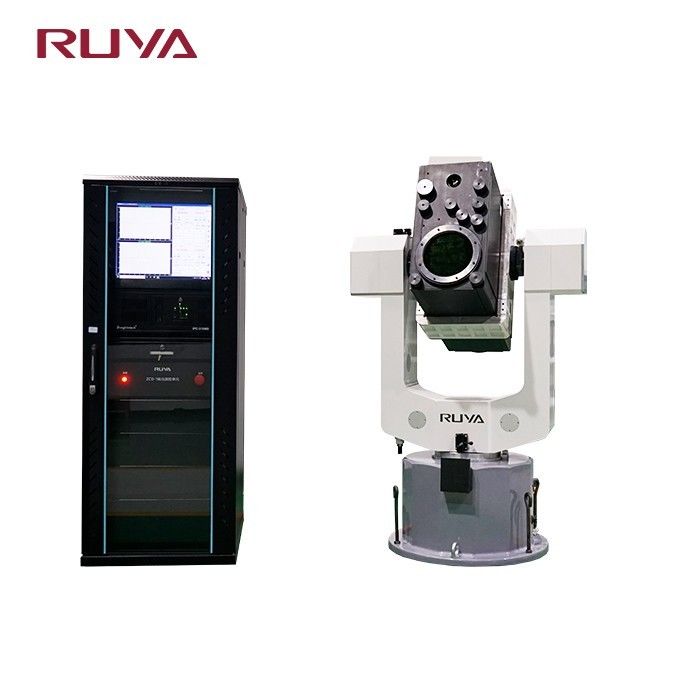

2DT50-FZ UAV Prevention Turntable System - Front view showing precision engineering and dual-axis design

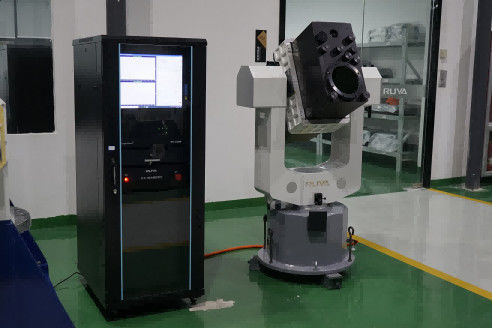

2DT50-FZ UAV Prevention Turntable System - Side view highlighting mechanical components and mounting interface
