2DTGZ-B Dual-axis Two-dimensional High-precision Motion Test Turntable with 50Kg Load Weight and 0.001°/s~15°/s Rate Range

Name: 2DTGZ-B Dual-axis Two-dimensional High-precision Motion Test Turntable with 50Kg Load Weight and 0.001°/s~15°/s Rate Range
Brand: Jiujiang RUYA Precision Technology Co., Ltd
SKU: 2DTGZ-B
Availability: InStock

Brand Name:	RUYA
Model Number:	2DTGZ-B
MOQ:	1 set
Price:	negotiable
Delivery Time:	3-4 months
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Load Weight:

50Kg

Load Size:

300mm×300mm×200mm

Rate Range（inner）:

0.001°/s~15°/s

Rate Range（outer）:

0.001°/s~15°/s

Angle Rotary Range（inner）:

-50°~+50°

Angle Rotary Range（outer）:

0~360°

Maximum Angular Acceleration（inner）:

≥10°/s²

Maximum Angular Acceleration（outer）:

≥10°/s²

Packaging Details:

wooden box

Supply Ability:

≤3 sets， 3 months

Highlight:

Dual-axis Tracking Turntable

High-precision Tracking Turntable

Two-dimensional Motion Test Tracking Turntable

Product Description

2DTGZ-B Dual-axis Two-dimensional High-precision Motion Test Tracking Turntable

Product Overview

The 2DTGZ-B Dual-axis Two-dimensional High-precision Motion Test Tracking Turntable features a dual-degree-of-freedom design with azimuth axis (X-axis) and pitch axis (Y-axis), integrated with a precision servo control system to achieve exceptional two-dimensional motion testing accuracy.

Specifically engineered for aerospace components, optoelectronic equipment, and inertial navigation systems, this turntable supports diverse experimental scenarios including target simulation, swing scanning, and dynamic tracking. It accurately reproduces complex motion trajectories with research-grade performance, meeting rigorous testing requirements in high-dynamic environments while supporting cutting-edge technology development and equipment verification.

Technical Specifications

Specification	Value
Load Weight	50Kg
Load Size	300mm×300mm×200mm
Rotary Accuracy Of Dual-Axis	±3″
Perpendicularity Of Dual-Axis	±3″
Intersection Of Dual-Axis	Ф0.5mm diameter ball
Positioning Error Of Angular Position	Outer frame: ±15″ Inner frame: ±15″
Positioning Repeatability Of Angular Position	±15″
Rate Range	Inner frame: 0.001°/s~15°/s Outer frame: 0.001°/s~15°/s
Angle Rotary Range	Outer frame: 0~360° Inner frame: -50°~+50°
Rate Accuracy	ω≤1°/s: 2×10⁻³ (1° average) 1°/s≤ω<10°/s: 2×10⁻⁴ (10° average) ω≥10°/s: 2×10⁻⁵ (360° average)
Maximum Angular Acceleration	Inner frame: ≥10°/s² Outer frame: ≥10°/s²

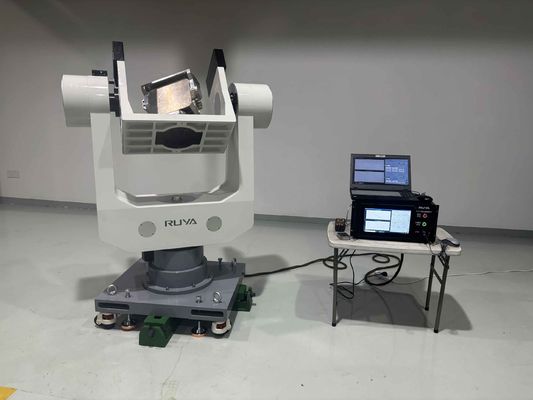

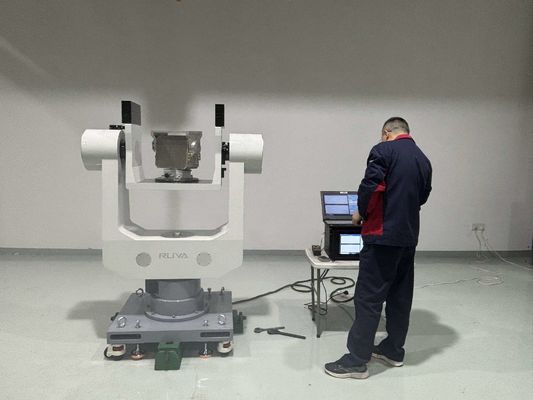

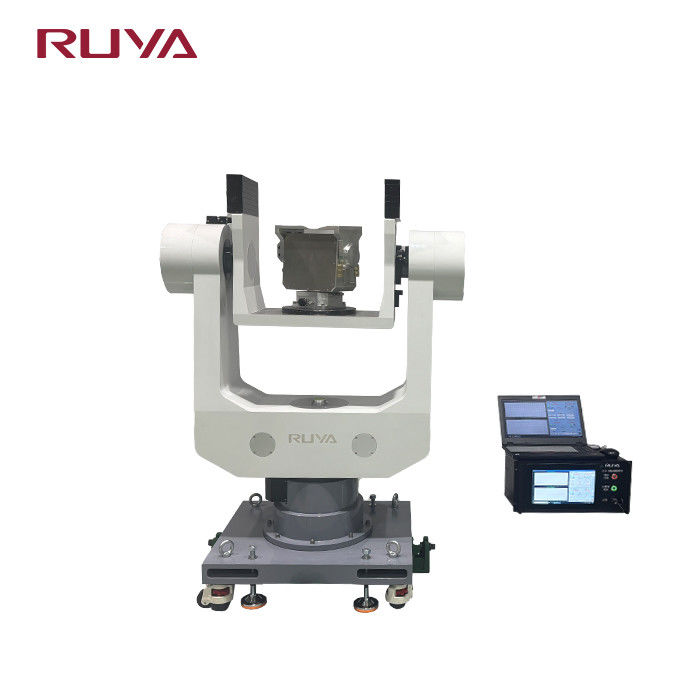

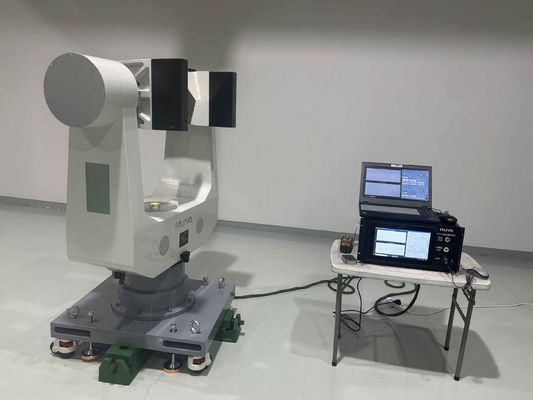

Product Images
