2-STGZ800 Heavy Load Tracking Turntable with 150Kg Capacity for Quantum Communication

Name: 2-STGZ800 Heavy Load Tracking Turntable with 150Kg Capacity for Quantum Communication
Brand: Jiujiang RUYA Precision Technology Co., Ltd
SKU: 2-STGZ800
Availability: InStock

Brand Name:	RUYA
Model Number:	2-STGZ800
MOQ:	1 set
Price:	negotiable
Delivery Time:	3-4 months
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Load Weight:

150Kg

Resolution Of Angular Position:

0.0001°

Maintain Precision Tracking Speed（:

10°/s≥azimuth≥1″/s；5°/s≥pitch≥1″/s

Code Disc Resolution:

1″

Maximum Angular Acceleration（pitch）:

≥2°/s²

Maximum Angular Acceleration（azimuth）:

≥6°/s²

For Stellar Targets, Open-Loop Tracking Accuracy (RMS):

Error Within 10 Seconds <0.5″, Error Within 60 Minutes <1″;

For Space Targets, Open-Loop Tracking Accuracy (RMS):

Single Axis<5″

Packaging Details:

wooden box

Supply Ability:

≤3 sets， 3 months

Highlight:

Heavy Load Tracking Turntable

150Kg Tracking Turntable

2-STGZ800 tracking turntables

Product Description

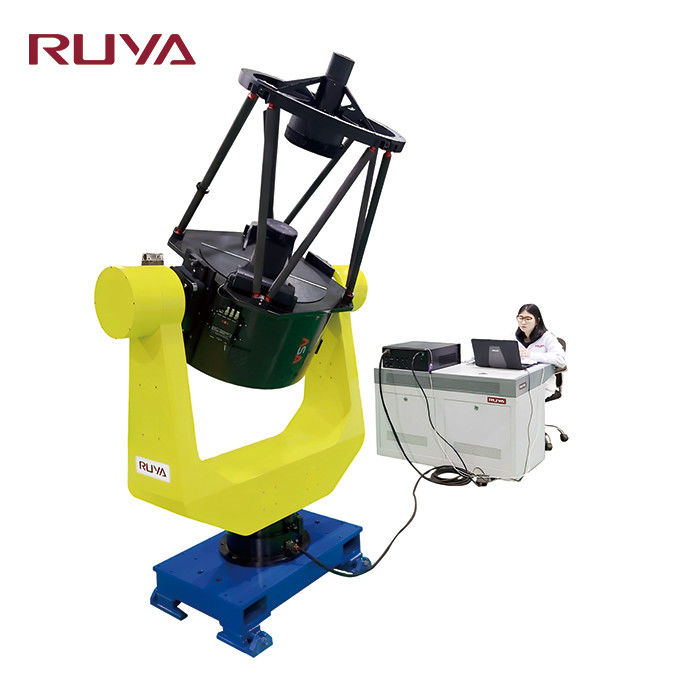

2-STGZ800 Heavy Load Tracking Turntable 150Kg Load Weight

Product Overview

The 2STGZ800 large-load direct-drive tracking turntable is specifically designed for quantum communication ground receiving stations. Working in conjunction with quantum satellite transmitters, this system enables complete satellite-to-ground quantum communication. Featuring advanced software control and guide design, this two-dimensional tracking turntable provides exceptional capability for tracking low-orbit satellites.

Technical Specifications

Specification	Details
Load Weight	150Kg
Angle Rotary Range	Azimuth: ±280° Pitch: -5° to +95°
Rotary Accuracy Of Dual-Axis	±3″
Positioning Error Of Angular Position	±3″
Positioning Repeatability Of Angular Position	±2″
Resolution Of Angular Position	0.0001°
Rate Accuracy	ω≤1°/s: 210⁻³ (1° average) 1°/s≤ω<10°/s: 210⁻⁴ (10° average) ω≥10°/s: 2*10⁻⁵ (360° average)
Maintain Precision Tracking Speed	10°/s≥azimuth≥1″/s 5°/s≥pitch≥1″/s
Maximum Angular Acceleration	Pitch: ≥2°/s² Azimuth: ≥6°/s²
Code Disc Resolution	1″
Zero Point	With code disc zero point
For Stellar Targets, Open-Loop Tracking Accuracy (RMS)	Error within 10 seconds <0.5″ Error within 60 minutes <1″
For Space Targets, Open-Loop Tracking Accuracy (RMS)	Single axis <5″

Product Images
