2-STGZ600 Medium Load Tracking Turntable with 100Kg Load Weight

Name: 2-STGZ600 Medium Load Tracking Turntable with 100Kg Load Weight
Brand: Jiujiang RUYA Precision Technology Co., Ltd
SKU: 2-STGZ600
Availability: InStock

Brand Name:	RUYA
Model Number:	2-STGZ600
MOQ:	1 set
Price:	negotiable
Delivery Time:	3-4 months
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Load Weight:

100Kg

Rotary Accuracy:

±3″

Positioning Error:

±3″

Positioning Repeatability:

±2″

Angle Rotary Range（azimuth）:

±280°

Angle Rotary Range（pitch）:

±90°

Maximum Angular Acceleration（pitch）:

≥2°/s²

Maximum Angular Acceleration（azimuth）:

≥6°/s²

Packaging Details:

wooden box

Supply Ability:

≤3 sets， 3 months

Highlight:

Medium Load Tracking Turntable

2-STGZ600 Tracking Turntable

100Kg tracking turntables

Product Description

2-STGZ600 Medium Load Tracking Turntable 100Kg Load Weight

Product Overview

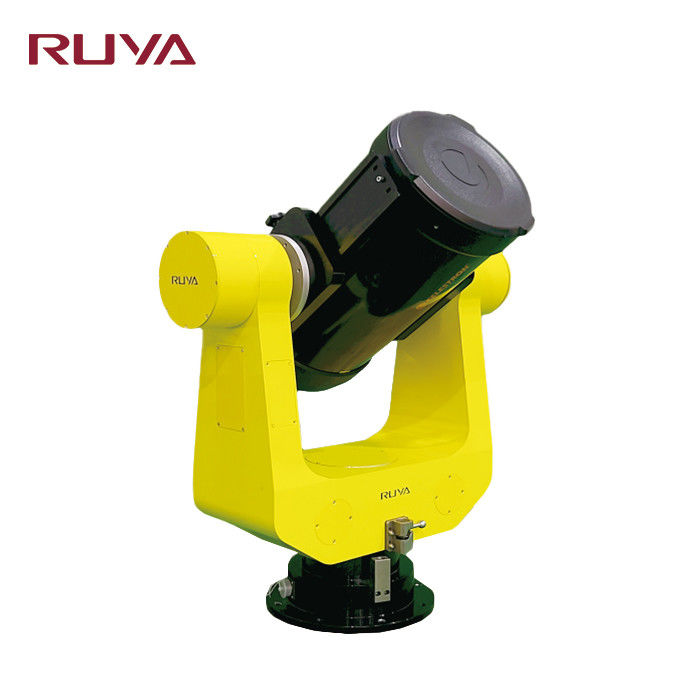

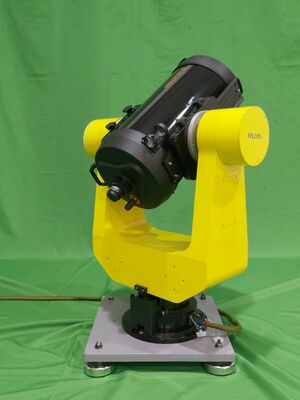

The 2-STGZ600 Medium Load Tracking Turntable features two degrees of freedom movement in the azimuth and pitch axes. This TL-type two-dimensional tracking equipment simulates satellite pointing and attitude on the ground while eliminating the influence of Earth's rotation. Designed for quantum communication ground receiving stations, it works in conjunction with quantum satellite transmitters to complete satellite-to-ground quantum communication. With user software control and guidance design, this two-dimensional tracking turntable provides satellite tracking capabilities.

Technical Specifications

Specification	Details
Load Weight	100Kg
Angle Rotary Range	Azimuth: ±280° Pitch: ±90°
Rotary Accuracy Of Dual-Axis	±3″
Positioning Error Of Angular Position	±3″
Positioning Repeatability Of Angular Position	±2″
Resolution Of Angular Position	0.0001°
Rate Accuracy	ω≤1°/s: 2×10⁻³ (1° average) 1°/s≤ω<10°/s: 2×10⁻⁴ (10° average) ω≥10°/s: 2×10⁻⁵ (360° average)
Maintain Precision Tracking Speed	10°/s≥azimuth≥1″/s 5°/s≥pitch≥1″/s
Maximum Angular Acceleration	Pitch: ≥2°/s² Azimuth: ≥6°/s²
Code Disc Resolution	1″
Zero Point	With code disc zero point
For Stellar Targets, Open-Loop Tracking Accuracy (RMS)	Error within 10 seconds <0.5″, error within 60 minutes <1″
For Space Targets, Open-Loop Tracking Accuracy (RMS)	Single axis <5″
