2-STGZ600 Medium Load Tracking Turntable 100Kg Load Weight

Name: 2-STGZ600 Medium Load Tracking Turntable 100Kg Load Weight
Brand: Jiujiang RUYA Precision Technology Co., Ltd
SKU: 2-STGZ600
Availability: InStock

Brand Name:	RUYA
Model Number:	2-STGZ600
MOQ:	1 set
Price:	negotiable
Delivery Time:	3-4 months
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Load Weight:

100Kg

Rotary Accuracy:

±3″

Positioning Error:

±3″

Positioning Repeatability:

±2″

Angle Rotary Range（azimuth）:

±280°

Angle Rotary Range（pitch）:

±90°

Maximum Angular Acceleration（pitch）:

≥2°/s²

Maximum Angular Acceleration（azimuth）:

≥6°/s²

Packaging Details:

wooden box

Supply Ability:

≤3 sets， 3 months

Highlight:

Medium Load Tracking Turntable

2-STGZ600 Tracking Turntable

100Kg tracking turntables

Product Description

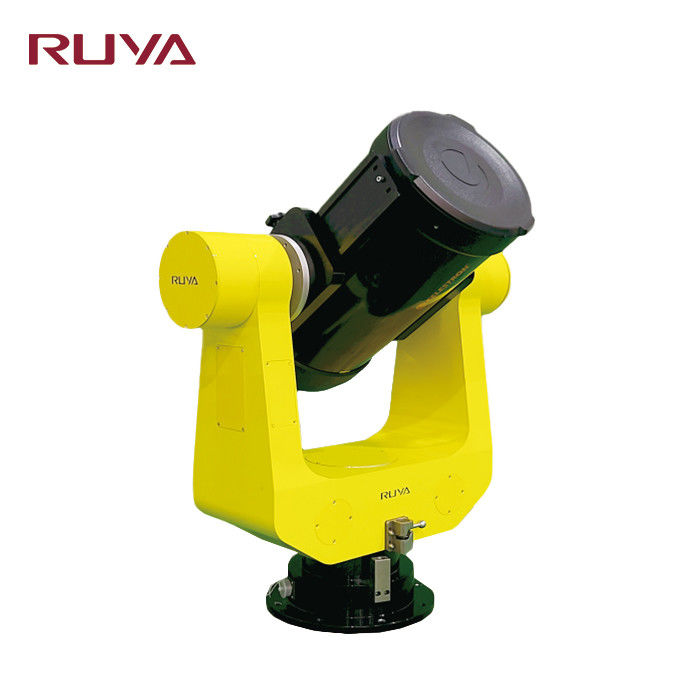

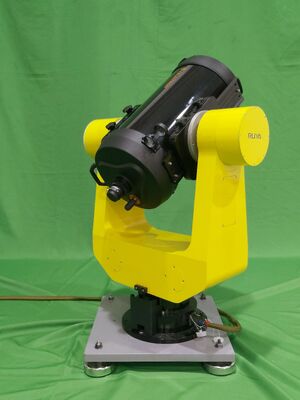

2-STGZ600 Medium Load Tracking Turntable

Product Description

The medium load tracking turntable has two degrees of freedom of movement in the azimuth axis and pitch axis. It is a TL type two-dimensional tracking equipment,which can simulate satellite pointing and attitude on the ground while eliminating the influence of the earth's rotation. It can be used as a quantum communication ground receiving station, and together with the quantum satellite transmitter, complete satellite-to-ground quantum communication. And cooperating with the user's software control and guide design, the two-dimensional tracking turntable has the ability to track satellites.

Product Parameters

Specification
1	Load Weight	100Kg
2	Angle Rotary Range	azimuth:±280°
2	Angle Rotary Range	pitch:±90°
3	Rotary Accuracy Of Dual-Axis	±3″
4	Positioning Error Of Angular Position	±3″
5	Positioning Repeatability Of Angular Position	±2″
6	Resolution Of Angular Position	0.0001°
7	Rate Accuracy	ω≤1°/s , 2×10-3 (1° average)
		1°/s≤ω<10°/s , 2×10-4 (10° average)
		ω≥10°/s , 2×10-5 (360° average)
8	Maintain Precision Tracking Speed	10°/s≥azimuth≥1″/s；
8	Maintain Precision Tracking Speed	5°/s≥pitch≥1″/s
9	Maximum Angular Acceleration	pitch:≥2°/s²；
9	Maximum Angular Acceleration	azimuth:≥6°/s²
10	Code Disc Resolution	1″
11	Zero Point	With code disc zero point
12	For Stellar Targets, Open-Loop Tracking Accuracy (RMS)	Error within 10 seconds <0.5″, error within 60 minutes <1″;
13	For Space Targets, Open-Loop Tracking Accuracy (RMS)	Single axis<5″
