2DTGZ-B High Precision Dual-Degree-of-Freedom Dual Axis Turntable with 50Kg Load Capacity for Motion Testing

Name: 2DTGZ-B High Precision Dual-Degree-of-Freedom Dual Axis Turntable with 50Kg Load Capacity for Motion Testing
Brand: Jiujiang RUYA Precision Technology Co., Ltd
SKU: 2DTGZ-B
Availability: InStock

Brand Name:	RUYA
Model Number:	2DTGZ-B
MOQ:	1 set
Price:	negotiable
Delivery Time:	3-4 months
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Load Weight:

50Kg

Load Size:

300mm×300mm×200mm

Rate Range（inner）:

0.001°/s~15°/s

Rate Range（outer）:

0.001°/s~15°/s

Angle Rotary Range（inner）:

-50°~+50°

Angle Rotary Range（outer）:

0~360°

Maximum Angular Acceleration（inner）:

≥10°/s²

Maximum Angular Acceleration（outer）:

≥10°/s²

Packaging Details:

wooden box

Supply Ability:

≤3 sets， 3 months

Highlight:

2DTGZ-B Tracking Turntable

High Precision Tracking Turntable

Motion Test dual axis turntable

Product Description

2DTGZ-B Dual Axis High Precision Motion Test Tracking Turntable

Product Overview

The 2DTGZ-B Dual-axis High-precision Motion Test Tracking Turntable is a sophisticated two-dimensional motion test platform featuring dual-degree-of-freedom systems for both azimuth (X-axis) and pitch (Y-axis) axes. Utilizing precision servo control technology, this system is engineered to deliver comprehensive multi-dimensional dynamic performance testing for aerospace components, optoelectronic equipment, inertial navigation systems, and related applications.

This turntable is widely employed in experimental scenarios including target simulation, swing scanning, and dynamic tracking, meeting the high-reliability testing requirements for complex motion trajectories in scientific research and industrial applications.

Technical Specifications

Specification	Value
Load Weight	50Kg
Load Size	300mm * 300mm * 200mm
Rotary Accuracy Of Dual-Axis	±3″
Perpendicularity Of Dual-Axis	±3″
Intersection Of Dual-Axis	Ф0.5mm diameter ball
Positioning Error Of Angular Position	Outer frame: ±15″ Inner frame: ±15″
Positioning Repeatability Of Angular Position	±15″
Rate Range	Inner frame: 0.001°/s ~ 15°/s Outer frame: 0.001°/s ~ 15°/s
Angle Rotary Range	Outer frame: 0° ~ 360° Inner frame: -50° ~ +50°
Rate Accuracy	ω ≤ 1°/s: 210⁻³ (1° average) 1°/s ≤ ω < 10°/s: 210⁻⁴ (10° average) ω ≥ 10°/s: 2*10⁻⁵ (360° average)
Maximum Angular Acceleration	Inner frame: ≥ 10°/s² Outer frame: ≥ 10°/s²

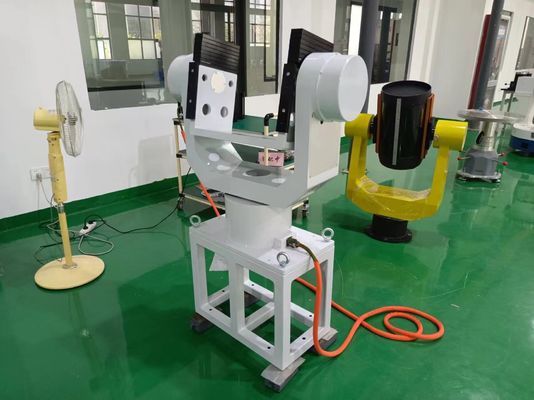

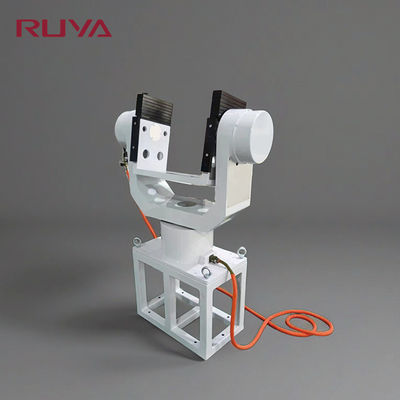

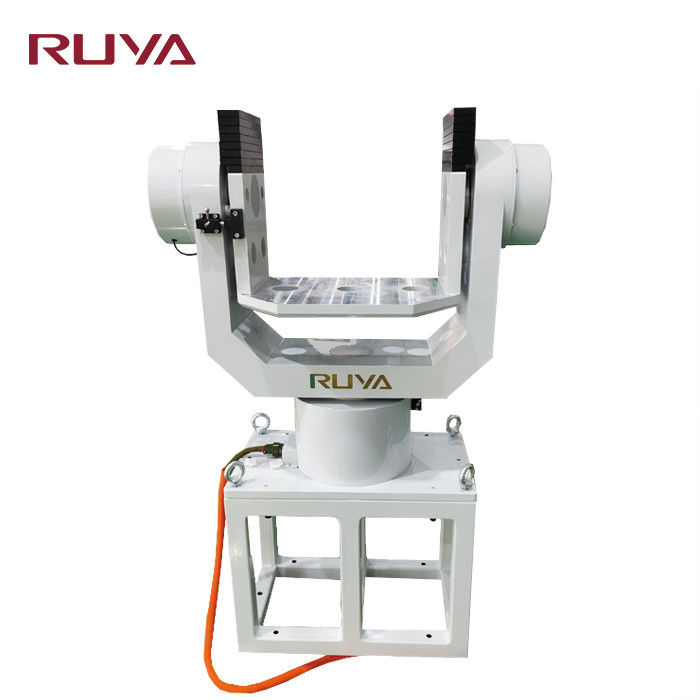

Product Images
