2DT650GZ-B Dual Axis Tracking Turntable Optoelectronic Device

Name: 2DT650GZ-B Dual Axis Tracking Turntable Optoelectronic Device
Brand: Jiujiang RUYA Precision Technology Co., Ltd
SKU: 2DT650GZ-B
Availability: InStock

Brand Name:	RUYA
Model Number:	2DT650GZ-B
MOQ:	1 set
Price:	negotiable
Delivery Time:	3-4 months
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Load Weight:

100Kg

Table Diameter:

Ф650mm

Table Flatness:

0.02mm

Table Runout:

0.02mm

Rotary Accuracy:

±3″

Perpendicularity:

±3″

Positioning Error（inner）:

±5″

Positioning Error（outer）:

±5″

Packaging Details:

wooden box

Supply Ability:

≤3 sets， 3 months

Highlight:

100Kg Tracking Turntable

Tracking Turntable Optoelectronic Device

2DT650GZ-B dual axis turntable

Product Description

DT650GZ-B Dual-axis Tracking Turntable Optoelectronic Device

Product Description

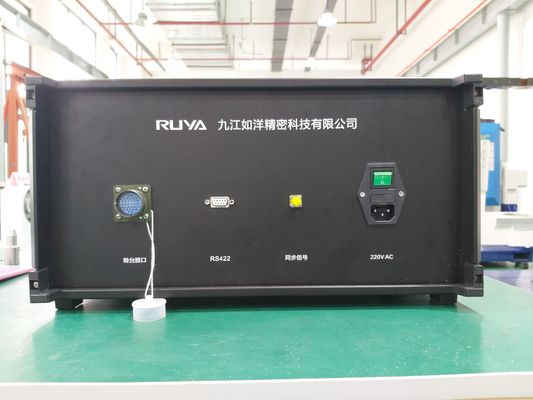

2DT650GZ-B optoelectronic device consists of a mechanical platform and a control box. The control box and the mechanical platform are connected through cables. The control box has an RS422 communication interface and can communicate with the host computer.

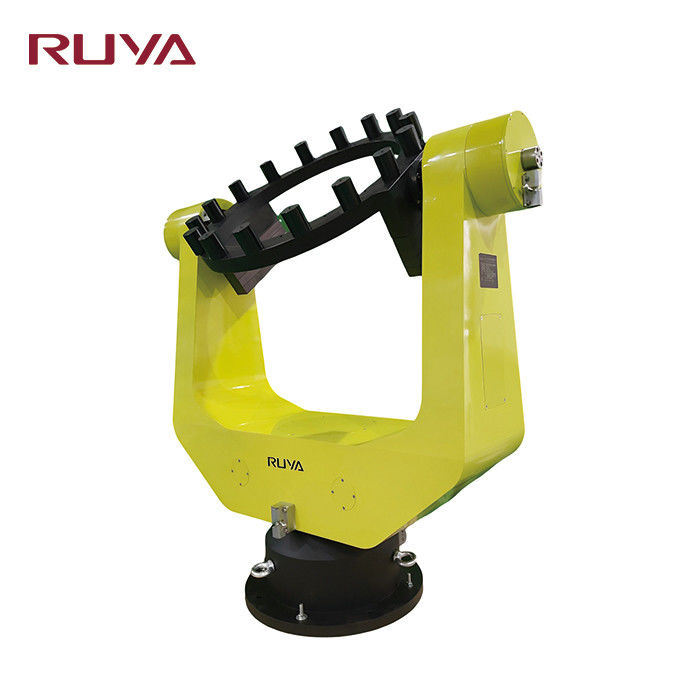

The mechanical platform body adopts an up-and-down vertical structure. The upper part is the pitch axis component and the lower part is the azimuth axis component. The control box has circuit modules such as angle resolution, motor drive, power conversion, and serial communication.

Product Parameters

Specification
1	Load Weight	100Kg
2	Table Diameter	Ф650mm
3	Table Flatness	0.02mm
4	Table Runout	0.02mm
5	Rotary Accuracy Of Dual-Axis	±3″
6	Perpendicularity Of Dual-Axis	±3″
7	Intersection Of Dual-Axis	Ф0.5mm diameter ball
8	Positioning Error Of Angular Position	outer frame:±5″；
8	Positioning Error Of Angular Position	inner frame:±5″；
9	Positioning Repeatability Of Angular Position	±2″
10	Rate Range	inner frame:0.001°/s~100°/s；
10	Rate Range	outer frame:0.001°/s~100°/s；
11	Angle Rotary Range	outer frame:continuous rotation
11	Angle Rotary Range	inner frame:±90°
12	Rate Accuracy	ω≤1°/s , 2×10-3 (1° average)
		1°/s≤ω<10°/s , 2×10-4 (10° average)
		ω≥10°/s , 2×10-5 (360° average)
13	Maximum Angular Acceleration	inner frame:≥30°/s²；
13	Maximum Angular Acceleration	outer frame:≥30°/s²

2DT650GZ-B Dual Axis Tracking Turntable Optoelectronic Device 0

2DT650GZ-B Dual Axis Tracking Turntable Optoelectronic Device 1
