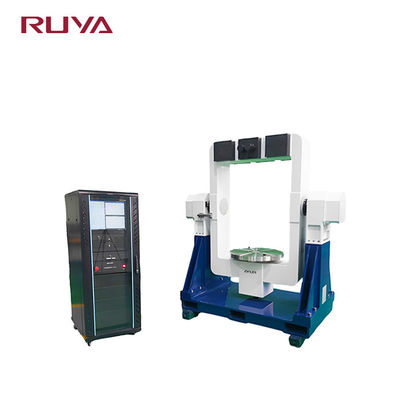

2DT600GZ Dual-Axis Tracking Turntable with 50Kg Load Weight for Inertial Navigation Testing

Brand Name: RUYA
Model Number: 2DT600GZ
MOQ: 1 set
Price: negotiable
Delivery Time: 3-4 months
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO 9001
Load Weight:
50Kg
Table Diameter:
Ф600mm
Table Flatness:
0.02mm
Table Runout:
0.02mm
Positioning Error( Outer Frame):
±3″
Positioning Error( Inner Frame):
±2″
Maximum Angular Acceleration（ Inner Frame）:
≥30°/s²
Maximum Angular Acceleration（ Outer Frame）:
≥30°/s²
Packaging Details:
wooden box
Supply Ability:
≤3 sets， 3 months
Highlight:

Tracking 2 axis turntable

,

Test 2 axis turntable

,

Inertial Navigation dual axis turntable

Product Description
2DT600GZ Tracking Inertial Navigation Test 2 Axis Turntable
Product Overview

The 2DT600GZ Dual-axis Tracking Inertial Navigation Test Turntable features two degrees of freedom of movement in the azimuth axis (X) and pitch axis (Y). This tabletop two-dimensional precision testing equipment is primarily used for testing the position, speed swing, tracking, and other functions of precision components and assemblies.

Technical Specifications
Specification Details
Load Weight 50Kg
Table Diameter Ф600mm
Table Flatness 0.02mm
Table Runout 0.02mm
Rotary Accuracy Of Dual-Axis ±3″
Perpendicularity Of Dual-Axis ±3″
Intersection Of Dual-Axis Ф0.5mm diameter ball
Positioning Error Of Angular Position Outer frame: ±3″
Inner frame: ±2″
Positioning Repeatability Of Angular Position ±2″
Rate Range Inner frame: 0.001°/s ~ 15°/s
Outer frame: 0.001°/s ~ 15°/s
Angle Rotary Range Outer frame: ±90°
Inner frame: ±170°
Rate Accuracy ω ≤ 1°/s: 2×10⁻³ (1° average)
1°/s ≤ ω < 10°/s: 2×10⁻⁴ (10° average)
ω ≥ 10°/s: 2×10⁻⁵ (360° average)
Maximum Angular Acceleration Inner frame: ≥30°/s²
Outer frame: ≥30°/s²
Product Images
2DT600GZ Dual-Axis Tracking Turntable with 50Kg Load Weight for Inertial Navigation Testing 0 2DT600GZ Dual-Axis Tracking Turntable with 50Kg Load Weight for Inertial Navigation Testing 1
