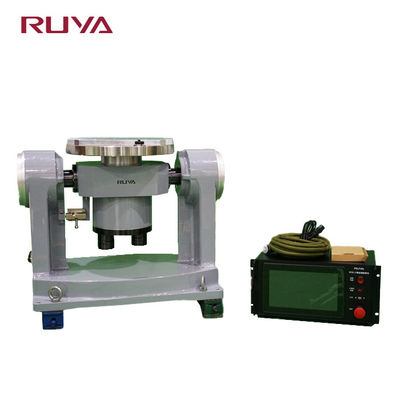

2DT400-A02 Dual Axis Electric Turntable Inner Ring High Speed with 15Kg Load Weight

Name: 2DT400-A02 Dual Axis Electric Turntable Inner Ring High Speed with 15Kg Load Weight
Brand: Jiujiang RUYA Precision Technology Co., Ltd
SKU: 2DT400-A02
Availability: InStock

Brand Name:	RUYA
Model Number:	2DT400-A02
MOQ:	1 set
Price:	negotiable
Delivery Time:	3-4 months
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Load Weight:

15Kg

Table Diameter:

Ф400mm

Rotary Accuracy:

±3″

Perpendicularity:

±3″

Intersection:

Ф0.5mm Diameter Ball

Positioning Repeatability:

±2″

User Slip Ring:

Customizable

Weight:

≤200Kg

Packaging Details:

wooden box

Supply Ability:

≤3 sets， 3 months

Highlight:

Electric dual axis turntable

2DT400-A02 dual axis turntable

High Speed 2 axis turntable

Product Description

2DT400-A02 Electric Dual Axis Turntable Inner Ring High Speed

Product Overview

The 2DT400-A02 Dual-axis Inner Ring High-speed Electric Turntable is a high-precision two-dimensional motion testing equipment equipped with dual degrees of freedom in the azimuth axis (X) and pitch axis (Y), which can realize continuous rotation and large-angle pitch adjustment. It adopts a precision servo drive system with high rigidity and low friction characteristics to ensure smooth operation and precise positioning.

This turntable is suitable for dynamic performance verification in inertial navigation, photoelectric tracking, radar testing and other fields. The table has strong load capacity, supports customized design, and meets the swing, rate tracking and position stability testing needs of various precision components. It is an ideal platform for scientific research and industrial testing.

Technical Specifications

Specification	Details
Load Weight	15Kg
Table Diameter	Ф400mm
Table Flatness	0.02mm
Table Runout	0.02mm
Rotary Accuracy Of Dual-Axis	±3″
Perpendicularity Of Dual-Axis	±3″
Intersection Of Dual-Axis	Ф0.5mm diameter ball
Positioning Error Of Angular Position	Outer frame: ±3″ Inner frame: ±2″
Positioning Repeatability Of Angular Position	±2″
Rate Range	Inner frame: 0.01°/s~3600°/s Outer frame: 0.01°/s~400°/s
Rate Accuracy	ω≤1°/s: 2×10⁻³ (1° average) 1°/s≤ω<10°/s: 2×10⁻⁴ (10° average) ω≥10°/s: 2×10⁻⁵ (360° average)
Maximum Angular Acceleration	Inner frame: ≥200°/s² Outer frame: ≥100°/s²
User Slip Ring	Customizable
Weight	≤200Kg
