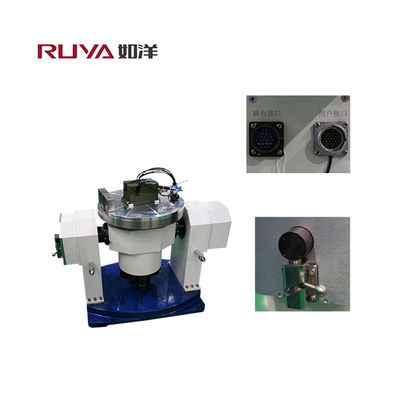

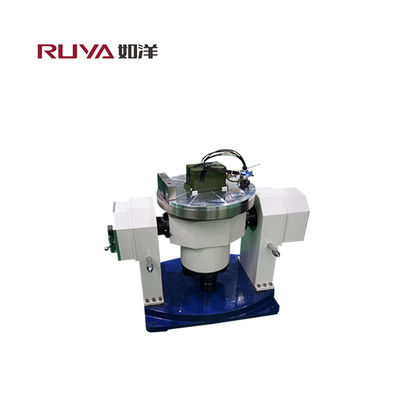

U-T Structure 2DT350-A Small Dual Axis Electric Turntable

Name: U-T Structure 2DT350-A Small Dual Axis Electric Turntable
Brand: Jiujiang RUYA Precision Technology Co., Ltd
SKU: 2DT350-A
Availability: InStock

Brand Name:	RUYA
Model Number:	2DT350-A
MOQ:	1 set
Price:	negotiable
Delivery Time:	3-4 months
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Load Weight:

20Kg

Table Diameter:

Ф350mm

Table Flatness:

0.02mm

Table Runout:

0.02mm

Intersection:

Ф0.5mm Diameter Ball

Positioning Repeatability:

±2″

User Slip Ring:

Customizable

Weight:

≤150Kg

Packaging Details:

wooden box

Supply Ability:

≤3 sets， 3 months

Highlight:

2DT350-A Electric Turntable

Dual Axis Electric Turntable

Small electric turntables

Product Description

U-T Structure 2DT350-A Small Dual-axis Electric Turntable

Product Description

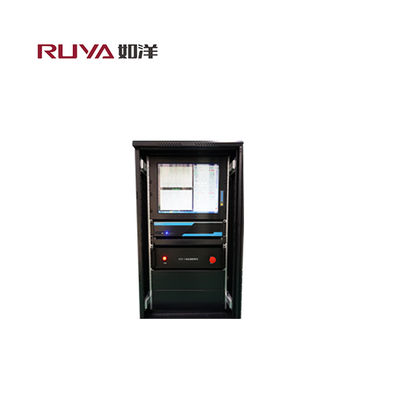

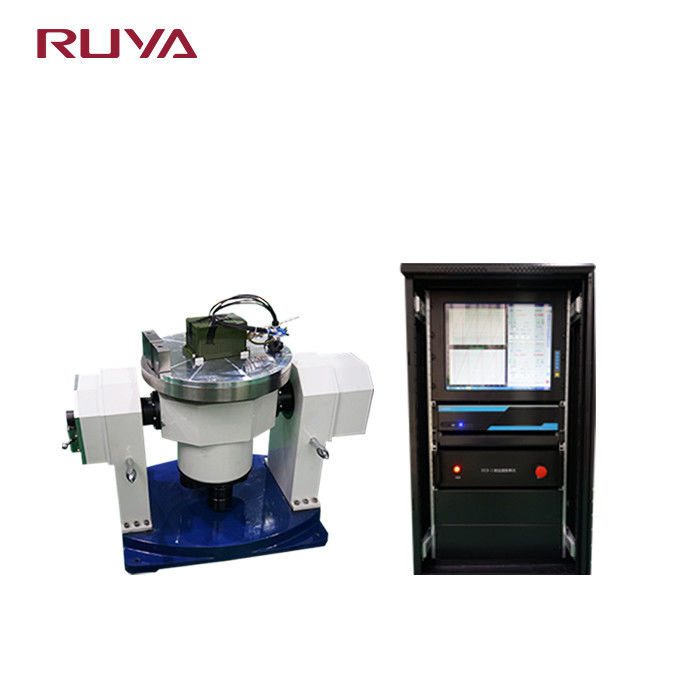

The dual-axis turntable is composed of a mechanical table body and a measurement and control system. It adopts a U-T structure and a precision mechanical shaft system. It has position, rate and low-frequency sinusoidal swing motion. It can provide accurate horizontal and position benchmarks for the load being measured. It provides single-axis and dual-axis positioning and rate benchmarks for static testing and calibration of inertial systems. It supports multi-position measurement and rate detection functions of inertial guidance, and the inertial navigation attitude test accuracy is 0.06°.

Product Parameters

Specification
1	Load Weight	20Kg
2	Table Diameter	Ф350mm
3	Table Flatness	0.02mm
4	Table Runout	0.02mm
5	Rotary Accuracy Of Dual-Axis	±3″
6	Perpendicularity Of Dual-Axis	±3″
7	Intersection Of Dual-Axis	Ф0.5mm diameter ball
8	Positioning Error Of Angular Position	outer frame:±3″；
8	Positioning Error Of Angular Position	inner frame:±3″；
9	Positioning Repeatability Of Angular Position	±2″
10	Rate Range	inner frame:0.01°/s~200°/s；
10	Rate Range	outer frame:0.01°/s~100°/s；
11	Rate Accuracy	ω≤1°/s , 2×10-3 (1° average)
		1°/s≤ω<10°/s , 2×10-4 (10° average)
		ω≥10°/s , 2×10-5 (360° average)
12	Maximum Angular Acceleration	inner frame:≥100°/s²
12	Maximum Angular Acceleration	outer frame:≥80°/s²
13	User Slip Ring	Customizable
14	Weight	≤150Kg

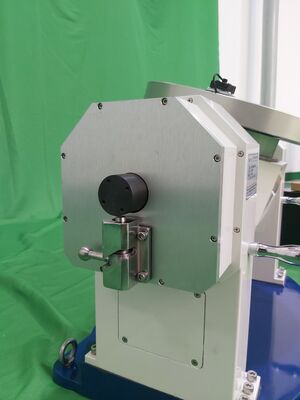

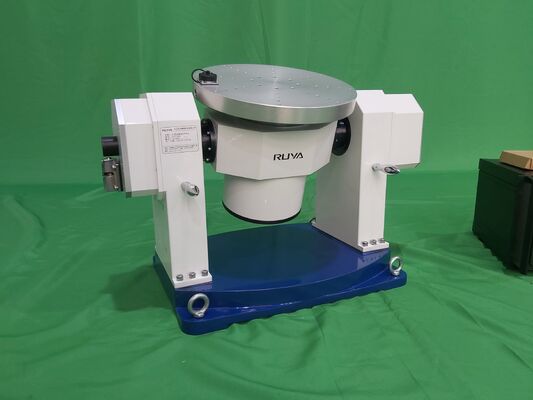

U-T Structure 2DT350-A Small Dual Axis Electric Turntable 0

U-T Structure 2DT350-A Small Dual Axis Electric Turntable 1
