U-T Structure 2DT350-A Small Dual Axis Electric Turntable with 20Kg Load Weight

Name: U-T Structure 2DT350-A Small Dual Axis Electric Turntable with 20Kg Load Weight
Brand: Jiujiang RUYA Precision Technology Co., Ltd
SKU: 2DT350-A
Availability: InStock

Brand Name:	RUYA
Model Number:	2DT350-A
MOQ:	1 set
Price:	negotiable
Delivery Time:	3-4 months
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Load Weight:

20Kg

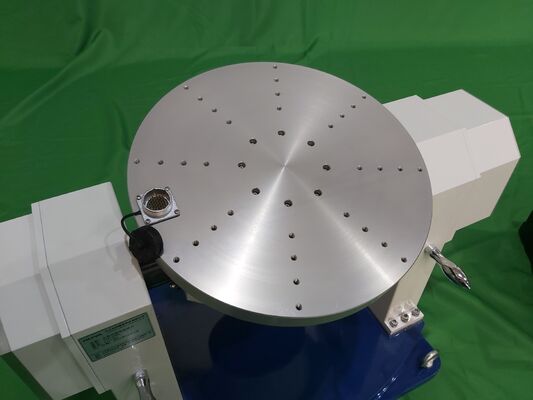

Table Diameter:

Ф350mm

Table Flatness:

0.02mm

Table Runout:

0.02mm

Intersection:

Ф0.5mm Diameter Ball

Positioning Repeatability:

±2″

User Slip Ring:

Customizable

Weight:

≤150Kg

Packaging Details:

wooden box

Supply Ability:

≤3 sets， 3 months

Highlight:

2DT350-A Electric Turntable

Dual Axis Electric Turntable

Small electric turntables

Product Description

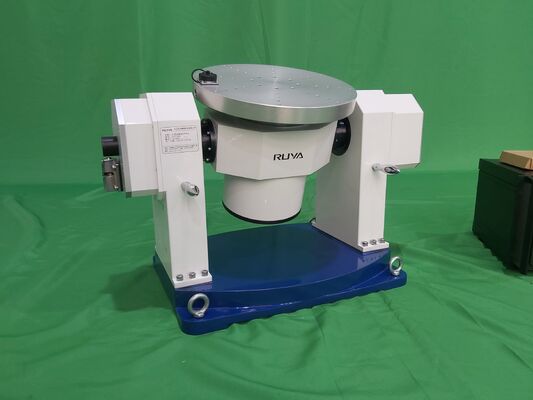

U-T Structure 2DT350-A Small Dual Axis Electric Turntable

Product Overview

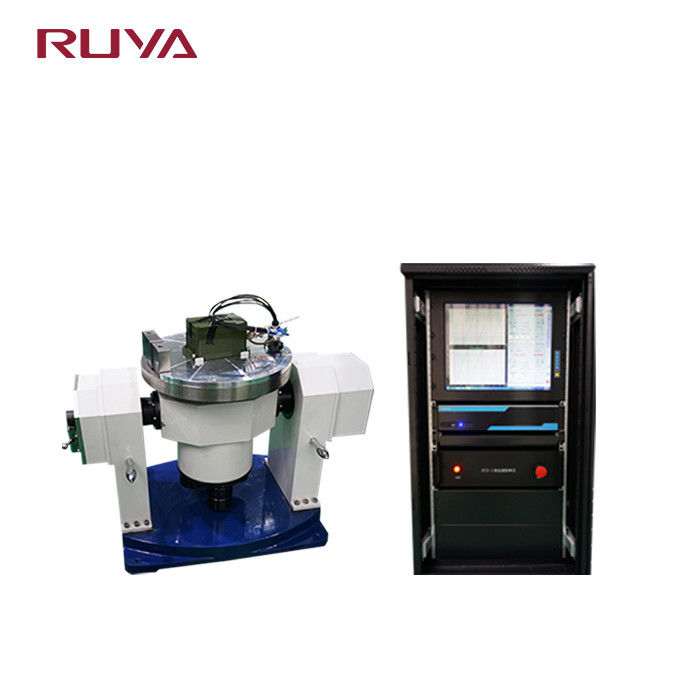

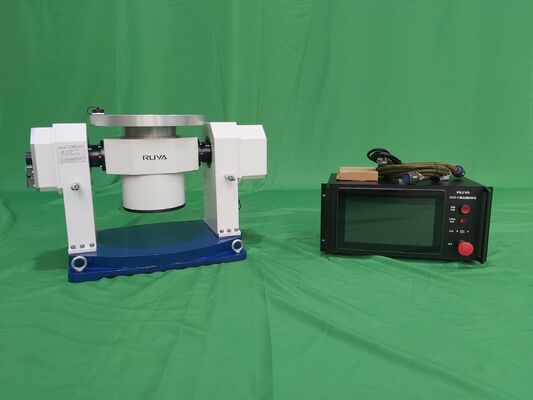

The dual-axis turntable consists of a mechanical table body and a measurement and control system. Featuring a U-T structure and precision mechanical shaft system, it provides position, rate, and low-frequency sinusoidal swing motion capabilities. This system delivers accurate horizontal and position benchmarks for the load being measured, offering single-axis and dual-axis positioning and rate benchmarks for static testing and calibration of inertial systems.

The turntable supports multi-position measurement and rate detection functions for inertial guidance applications, with an inertial navigation attitude test accuracy of 0.06°.

Technical Specifications

Specification	Details
Load Weight	20Kg
Table Diameter	Ф350mm
Table Flatness	0.02mm
Table Runout	0.02mm
Rotary Accuracy Of Dual-Axis	±3″
Perpendicularity Of Dual-Axis	±3″
Intersection Of Dual-Axis	Ф0.5mm diameter ball
Positioning Error Of Angular Position	Outer frame: ±3″ Inner frame: ±3″
Positioning Repeatability Of Angular Position	±2″
Rate Range	Inner frame: 0.01°/s~200°/s Outer frame: 0.01°/s~100°/s
Rate Accuracy	ω≤1°/s: 2×10⁻³ (1° average) 1°/s≤ω<10°/s: 2×10⁻⁴ (10° average) ω≥10°/s: 2×10⁻⁵ (360° average)
Maximum Angular Acceleration	Inner frame: ≥100°/s² Outer frame: ≥80°/s²
User Slip Ring	Customizable
Weight	≤150Kg
