Created with Pixso. ST1000-D High Precision Rotary Platform with 400mm Payload and 100kg Load Capacity
name
  • name
  • name
  • name
  • name
  • name
  • name

ST1000-D High Precision Rotary Platform with 400mm Payload and 100kg Load Capacity

Brand Name: RUYA
Model Number: ST1000-D
MOQ: 1 set
Price: negotiable
Delivery Time: 2-3 months
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO 9001
Load Weight:
100KG
Table Diameter:
Ф400mm
Table Flatness:
0.025mm
Table Runout:
0.025mm
Rotation Mode:
Manual
Braking  Mode:
Handbrake
Positioning Repeatability:
±0.1°
Measuring Range:
0~360°
Packaging Details:
wooden box
Supply Ability:
≤3 sets，3 months
Highlight:

High Precision rotary platform

,

400mm rotary platform

,

100kg rotary platforms

Product Description
ST1000-D High Precision Rotary Platform With 400mm Payload 100kg
Product Overview


High-precision rotary platform equipment is primarily used as an auxiliary inspection machine in the aerospace and CNC machining industries. It is designed to measure the shape and position deviations of disc shafts and ring components with exceptional accuracy.

Technical Specifications
Specification Value
Load Weight 100Kg
Table Diameter Ф400mm
Table Flatness 0.025mm
Table Runout 0.025mm
Rotation Mode Manual
Braking Mode Handbrake
Positioning Repeatability Of Angular Position ±0.1°
Measuring Range 0~360°

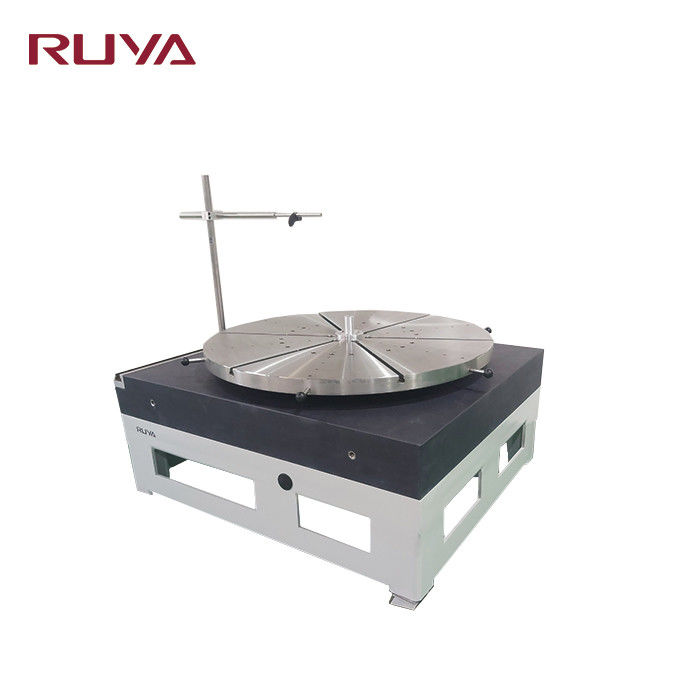

Equipped with triple rod dial indicator bracket Supports dial indicators for testing

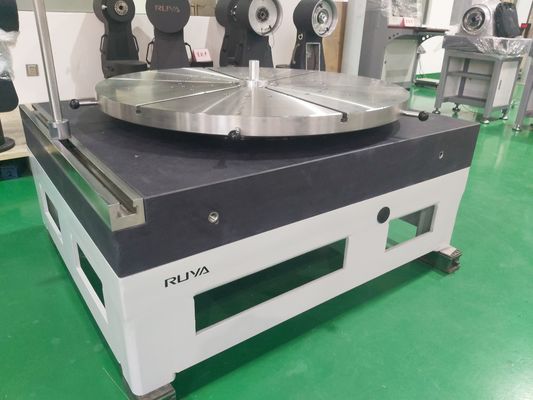

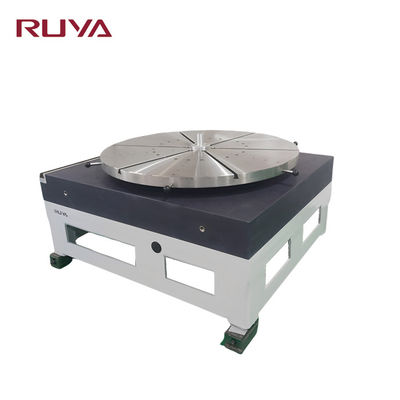

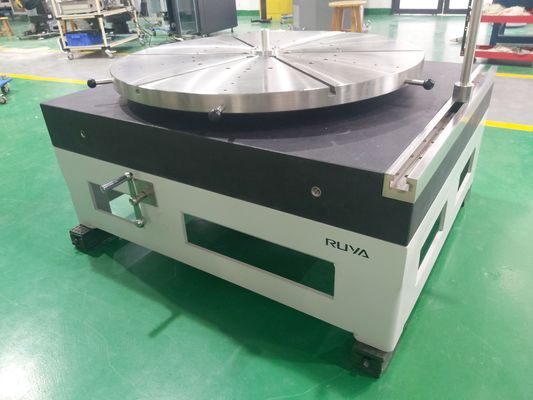

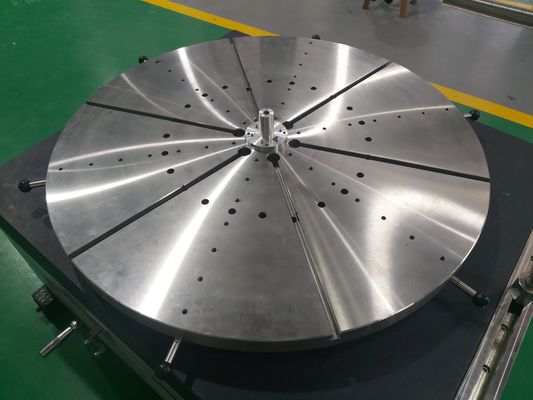

Product Images
ST1000-D High Precision Rotary Platform with 400mm Payload and 100kg Load Capacity 0 ST1000-D High Precision Rotary Platform with 400mm Payload and 100kg Load Capacity 1
Tags:

positioning turntables

test turntables

inertial navigation test turntable
