DT1000-A 300kg Payload 1000mm Diameter High Precision Single Axis Electric Rate Positioning Turntable

Name: DT1000-A 300kg Payload 1000mm Diameter High Precision Single Axis Electric Rate Positioning Turntable
Brand: Jiujiang RUYA Precision Technology Co., Ltd
SKU: DT1000-A
Availability: InStock

Brand Name:	RUYA
Model Number:	DT1000-A
MOQ:	1 set
Price:	negotiable
Delivery Time:	2-3 months
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Load Weight:

300KG

Table Diameter:

Ф1000mm

Table Flatness:

0.02mm

Table Runout:

0.02mm

Rotary Accuracy:

±3″

Rate Range:

±0.0001°/s~±1000°/s

Maximum Angular Acceleration:

≥100°/s²

User Slip Ring:

Customizable

Packaging Details:

wooden box

Supply Ability:

≤3 sets，3 months

Highlight:

Single Axis positioning turntables

300kg positioning turntables

Big electric positioning turntables

Product Description

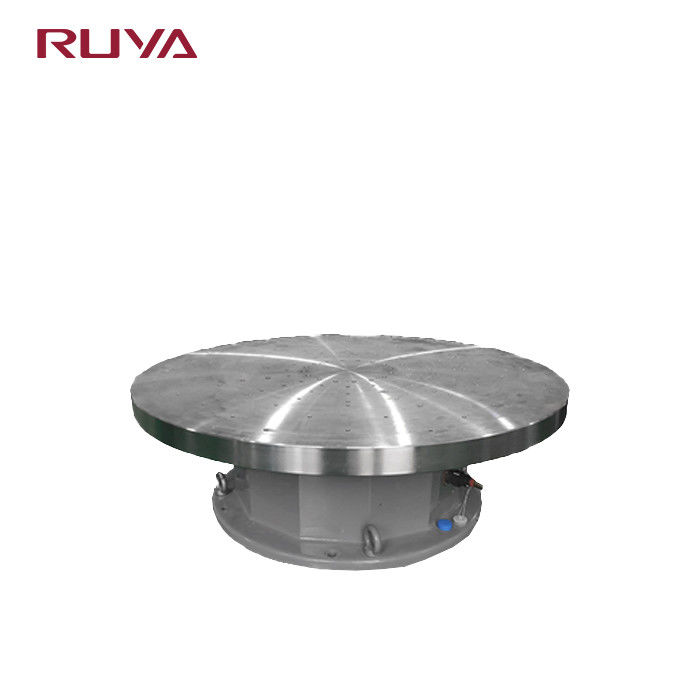

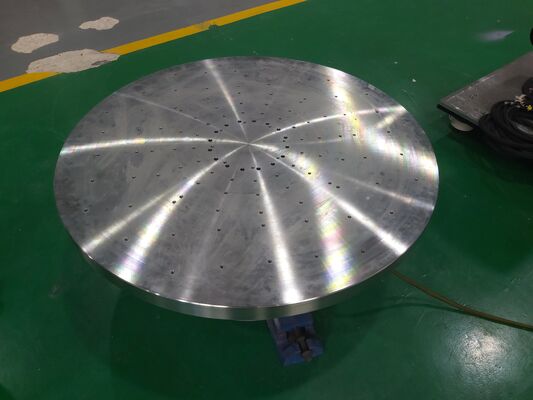

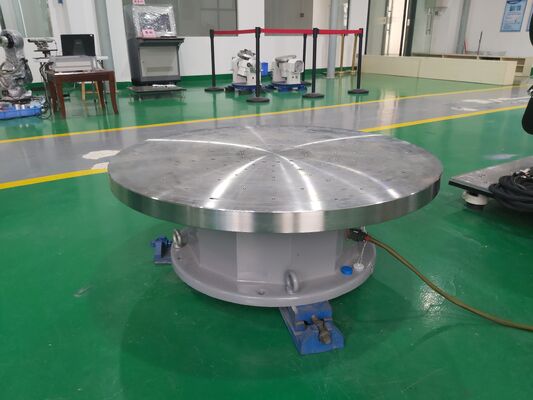

DT1000-A Big Single Axis Payload 300kg Electric Rate Positioning Turntables

Product Overview

The DT1000-A single-axis electric rate position turntable features a single-axis table-type mechanical shaft system structure. It is primarily designed for testing inertial components such as gyroscopes and accelerometers. This turntable offers multiple functions including position and speed control, and can automatically operate the turntable while collecting data.

Technical Specifications

Specification	Value
Load Weight	300Kg
Table Diameter	Ф1000mm
Table Flatness	0.02mm
Table Runout	0.02mm
Rotary Accuracy Of Axis	±3″
Positioning Error Of Angular Position	±3″
Positioning Repeatability Of Angular Position	±2″
Rate Range	±0.0001°/s~±1000°/s
Rate Accuracy	ω≤1°/s: 210⁻³ (1° average) 1°/s≤ω<10°/s: 210⁻⁴ (10° average) ω≥10°/s: 2*10⁻⁵ (360° average)
Maximum Angular Acceleration	≥100°/s²
User Slip Ring	Customizable

Product Images
