DT300-A Single Axis Electric Turntable with 30KG Load Weight Customizable User Slip Ring for Inertial Testing

Name: DT300-A Single Axis Electric Turntable with 30KG Load Weight Customizable User Slip Ring for Inertial Testing
Brand: Jiujiang RUYA Precision Technology Co., Ltd
SKU: DT300-A
Availability: InStock

Brand Name:	RUYA
Model Number:	DT300-A
MOQ:	1 set
Price:	negotiable
Delivery Time:	2-3 months
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Load Weight:

30KG

Table Diameter:

Ф300mm

Rotary Accuracy:

±3″

Positioning Error:

±3″

Positioning Repeatability:

±2″

Rate Range:

±0.0001°/s~±1000°/s

Maximum Angular Acceleration:

≥300°/s²

User Slip Ring:

Customizable

Packaging Details:

wooden box

Supply Ability:

≤3 sets，3 months

Highlight:

Test Turntable Single Axis

DT300-A Test Turntable

300mm test turntables

Product Description

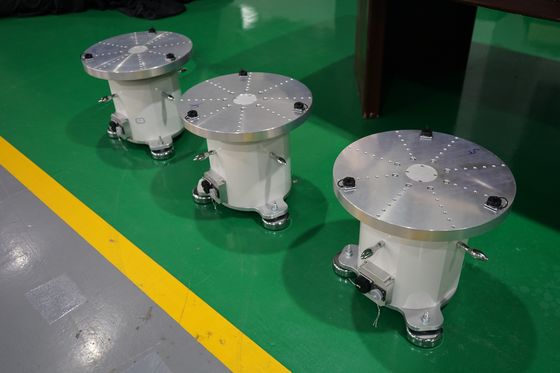

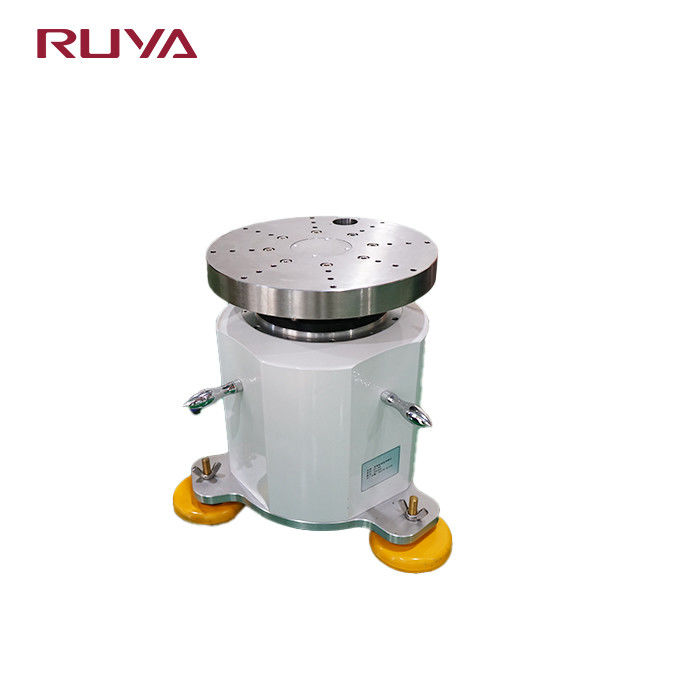

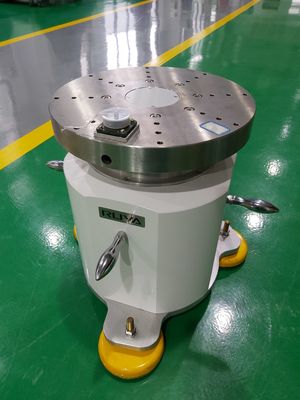

DT300-A Single Axis Electric Rate Position Test Turntable

Product Overview

This high-load single-axis electric rate position turntable is specially designed for testing heavy inertial components. It supports a load of 30kg and is suitable for a 300mm table. It meets the high-precision calibration needs of fiber optic gyroscopes, IMUs and various inertial devices.

The turntable features a compact structure and enhanced rigidity, balancing large load capacity with portability. It is suitable for laboratory, production line and field calibration scenarios. The standard intelligent control interface ensures easy operation with outstanding cost performance, making it an ideal solution for industrial-grade inertial testing.

Technical Specifications

Specification	Value
Load Weight	30Kg
Table Diameter	Ф300mm
Table Flatness	0.02mm
Table Runout	0.02mm
Rotary Accuracy Of Axis	±3″
Positioning Error Of Angular Position	±3″
Positioning Repeatability Of Angular Position	±2″
Rate Range	±0.0001°/s~±1000°/s
Rate Accuracy	ω≤1°/s: 2×10⁻³ (1° average) 1°/s≤ω<10°/s: 2×10⁻⁴ (10° average) ω≥10°/s: 2×10⁻⁵ (360° average)
Maximum Angular Acceleration	≥300°/s²
User Slip Ring	Customizable
