DT200-B High Precision 10kg Payload Single Axis Inertial Test Turntable with Customizable Slip Ring

Name: DT200-B High Precision 10kg Payload Single Axis Inertial Test Turntable with Customizable Slip Ring
Brand: Jiujiang RUYA Precision Technology Co., Ltd
SKU: DT200-B
Availability: InStock

Brand Name:	RUYA
Model Number:	DT200-B
MOQ:	1 set
Price:	negotiable
Delivery Time:	2-3 months
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Table Diameter:

Ф240mm

Table Flatness:

0.02mm

Table Runout:

0.02mm

Rotary Accuracy:

±3″

Positioning Error:

±5″

Positioning Repeatability:

±5″

Structure:

For Both Horizontal And Vertical Use

User Slip Ring:

Customizable

Packaging Details:

wooden box

Supply Ability:

≤3 sets，3 months

Highlight:

10kg inertial test turntable

Single Axis inertial test turntable

High Precision test turntables

Product Description

DT200-B High Precision Payload 10kg Single Axis Inertial Test Turntable

Product Overview

The DT200-B high-precision single-axis test turntable is designed to provide exceptional rotary reference during testing operations. This system features high precision, stable construction, adaptability to various load requirements, and automatic centering capabilities.

Technical Specifications

Specification	Value
Load Weight	10Kg
Table Diameter	Ф240mm
Table Flatness	0.02mm
Table Runout	0.02mm
Rotary Accuracy Of Axis	±3″
Positioning Error Of Angular Position	±5″
Positioning Repeatability Of Angular Position	±5″
Rate Range	±0.0001°/s~±200°/s
Rate Resolution	0.0001°/s
Rate Accuracy	ω≤1°/s: 210⁻³ (1° average) 1°/s≤ω<10°/s: 210⁻⁴ (10° average) ω≥10°/s: 2*10⁻⁵ (360° average)
Maximum Angular Acceleration	≥100°/s²
Structure	For both horizontal and vertical use
User Slip Ring	Customizable

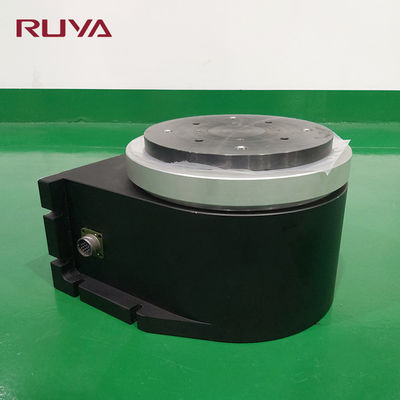

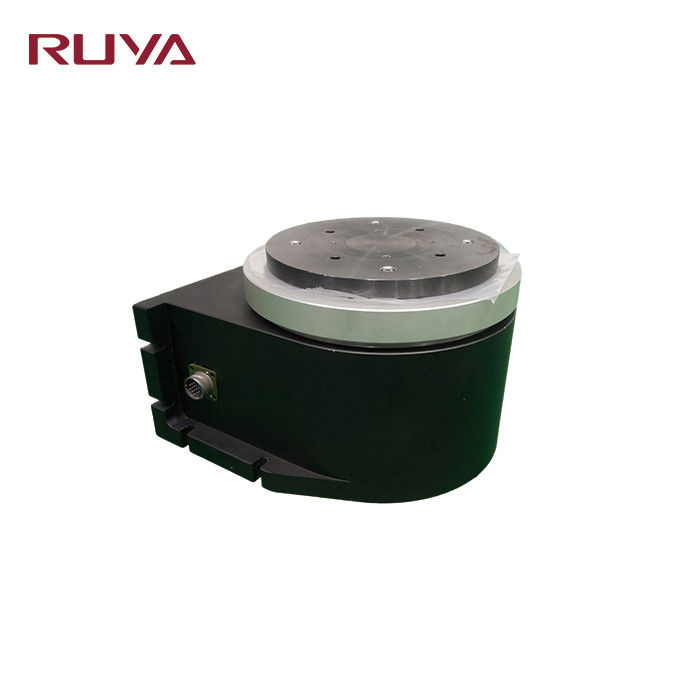

Product Images
