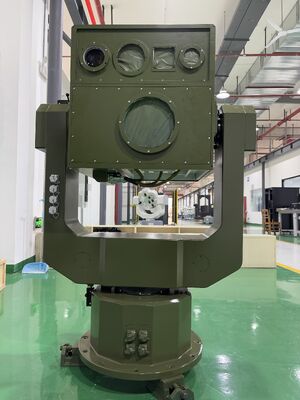

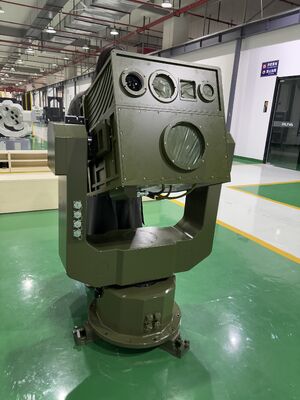

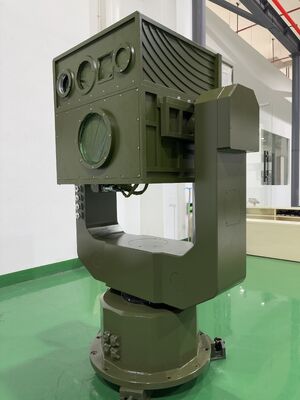

High-Precision 0.1 mrad Servo Tracking Turntable for Low-Altitude Security with 65kg Load Capacity

Brand Name:	RUYA
MOQ:	1 set
Price:	negotiable
Delivery Time:	3-4 months
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Turntable Weight:

<100kg

Maximum Speed:

Azimuth: 180°/s Pitch: 60°/s

Maximum Acceleration:

Azimuth 120°/s² Pitch: 60°/s²

Tracking Accuracy:

0.1 Mrad (RMS)

Turntable Weight:

<100kg

Load Capacity:

>65kg

Load Dimensions:

Depth 650mm, Width 580mm, Height 580mm

Maximum Speed:

Azimuth: 180°/s Pitch: 60°/s

Maximum Acceleration:

Azimuth 120°/s² Pitch: 60°/s²

Azimuth Range:

±170°

Pitch Range:

-10° To +90°

Tracking Accuracy:

0.1 Mrad (RMS)

Packaging Details:

wooden box

Supply Ability:

≤3 sets， 3 months
